Product Description

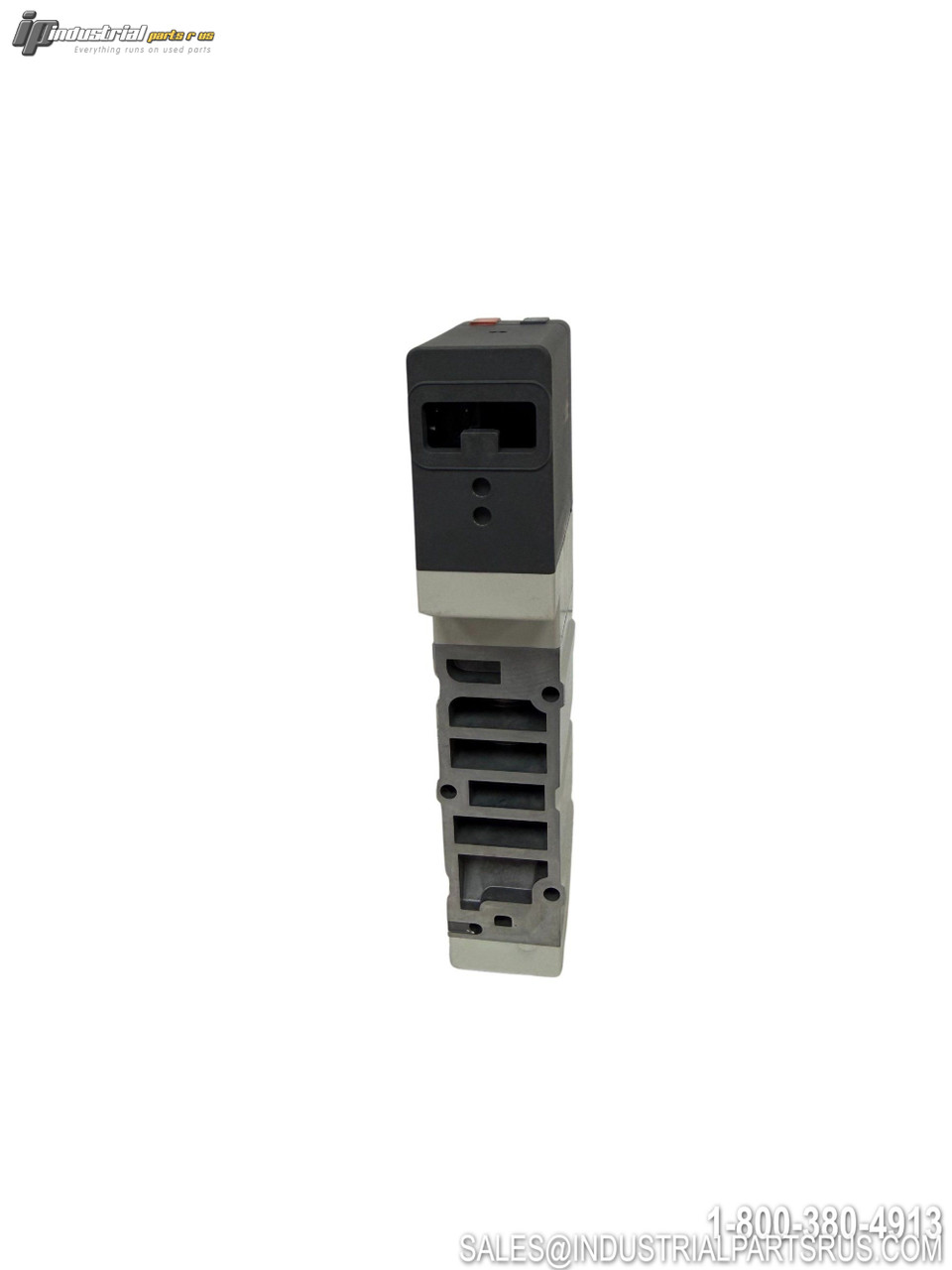

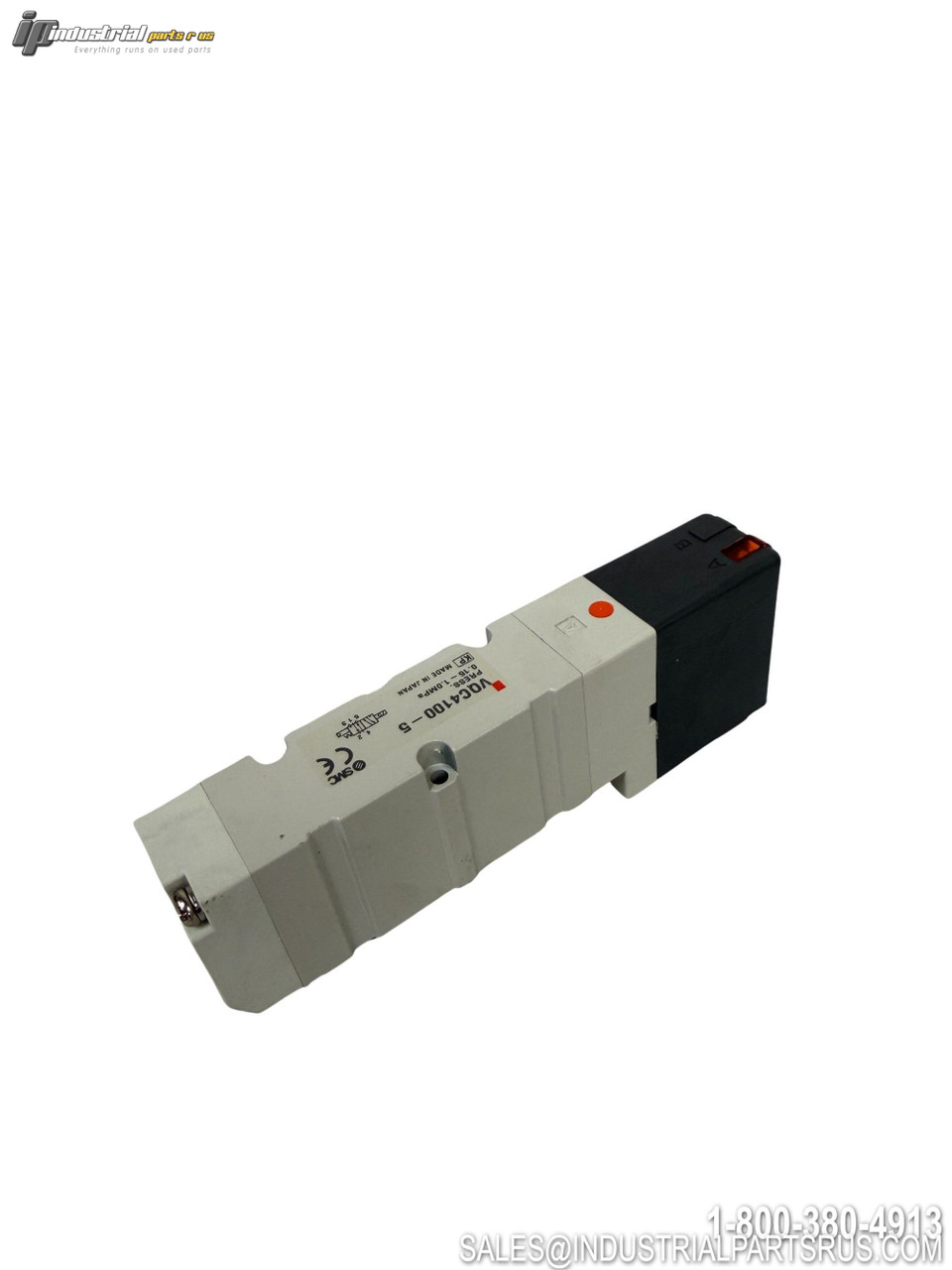

The SMC VQC4100-5 is a 5-port 2-position pneumatic solenoid valve from the VQC4000 series designed for high-speed automation applications. This valve features a plug-in design with metal seal construction, 24VDC coil voltage, and IP67 dust-proof enclosure protection for reliable operation in industrial environments.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | VQC4100-5 |
| Series | VQC4000 |
| Valve Type | 5-Port Solenoid Valve |
| Coil Voltage | 24VDC |
| Configuration | 2-Position Single |
| Body Type | Plug-in Sub-plate |
| Seal Type | Metal Seal |
| Mounting Type | Base Mount |
| Operating Pressure | 1.0 MPa (0.7 MPa Low Wattage) |
| Effective Area (Cv) | 1.7 (Metal Seal) |
| Fluid | Air/Inert Gas |
| Enclosure Rating | IP67 Dust Proof |
| Response Time | 17ms ±3ms |
| Service Life | 100 Million Cycles |
| Power Consumption | 0.95W Standard |
| Manual Override | Available |
| Port Size | Without Sub-plate (For Manifold) |
| Porting Specification | Side Ported |
| Thread Type | Rc |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer SMC
Enclosure Type IP67 Dust Proof
Part Number VQC4100-5
Shelf A-10
Model VQC4100-5
MPN VQC4100-5
Type Solenoid Valve
