Product Description

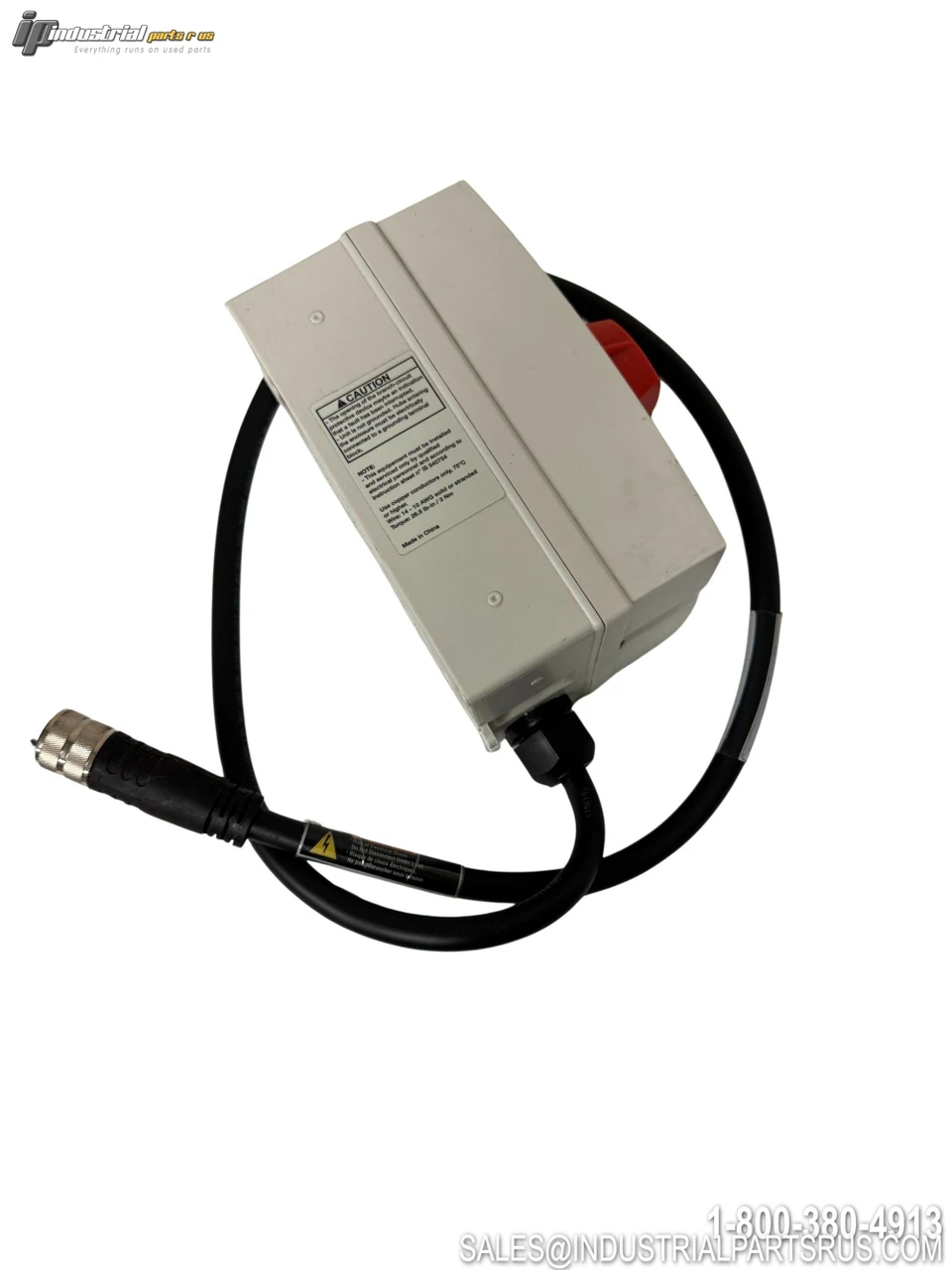

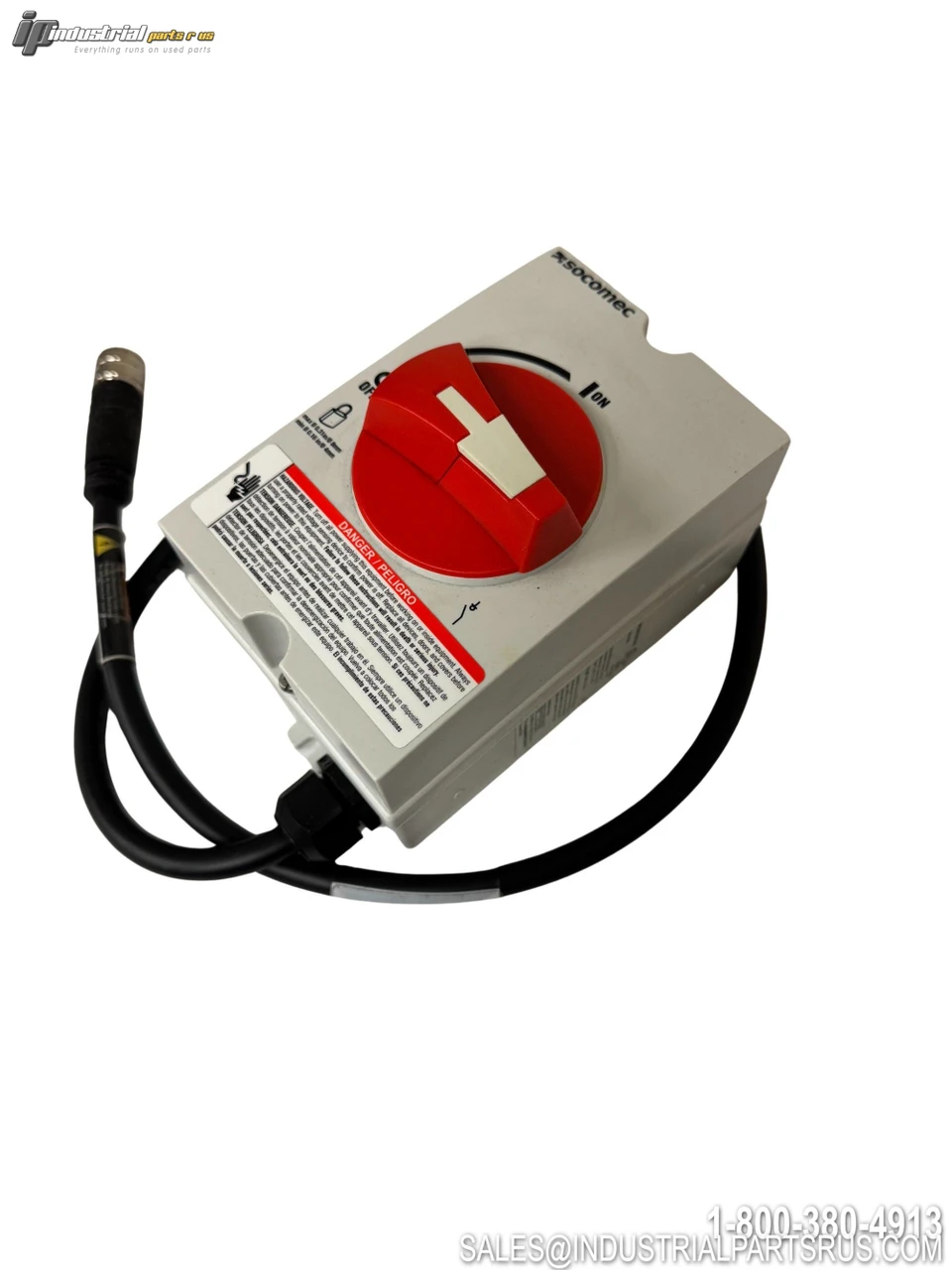

The Socomec 22143503 is a SIRCO M Series enclosed rotary non-fusible disconnect switch designed for safe control and disconnection of motor and load circuits in industrial applications. It features a 3-pole, 30-amp, 600V AC/DC rating with a 65kA short-circuit current rating (SCCR) and is housed in a polycarbonate enclosure with a red ergonomic padlockable handle. The unit is UL 508 listed for use as a motor-rated or local disconnect and meets NEMA ratings 1, 3R, 12, 4, and 4X, making it suitable for a wide range of indoor and outdoor environments.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Socomec |
| Model / Part Number | 22143503 |
| Series | SIRCO M |
| Switch Sub-Model | SIRCO M1 |
| Product Type | Enclosed Rotary Non-Fusible Disconnect Switch (Load Break Switch) |
| Number of Poles | 3 |
| Current Rating | 30A |
| Voltage Rating | 600V AC/DC |
| Short-Circuit Current Rating (SCCR) | 65kA |
| NEMA Enclosure Rating | NEMA 1, 3R, 12, 4, 4X |
| UL Listing | UL 508 (Motor-Rated Disconnect / Local Disconnect) |
| CSA Standard | CSA C22.2ยง14, Class 3211-05, File 112964 |
| IEC Standard | IEC 60947-3 |
| Enclosure Material | Polycarbonate |
| Handle Color | Red |
| Enclosure Color | Grey |
| Mounting Type | Wall Mount |
| Operation Type | Front Operated, Rotary |
| Fusible | Non-Fusible |
| Load Break Capable | Yes |
| Padlockable Handle | Yes (up to 3 padlocks) |
| Removable Ground Terminal | 1 Included |
| Auxiliary Contact Option | Yes (1 Power Pole + 1 Auxiliary Contact addable) |
| Housing Dimensions (W x H x D) | 3.9 x 6.38 x 4.37 in |
| Applications | NEC Motor Disconnect, OSHA Lockout/Tagout, Main Non-Fusible Disconnect, Load Transfer |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Socomec
Enclosure Type NEMA 1, 3R, 12, 4, 4X
Part Number 22143503
Shelf K-58
Model 22143503
MPN 22143503
Type Disconnect
