Product Description

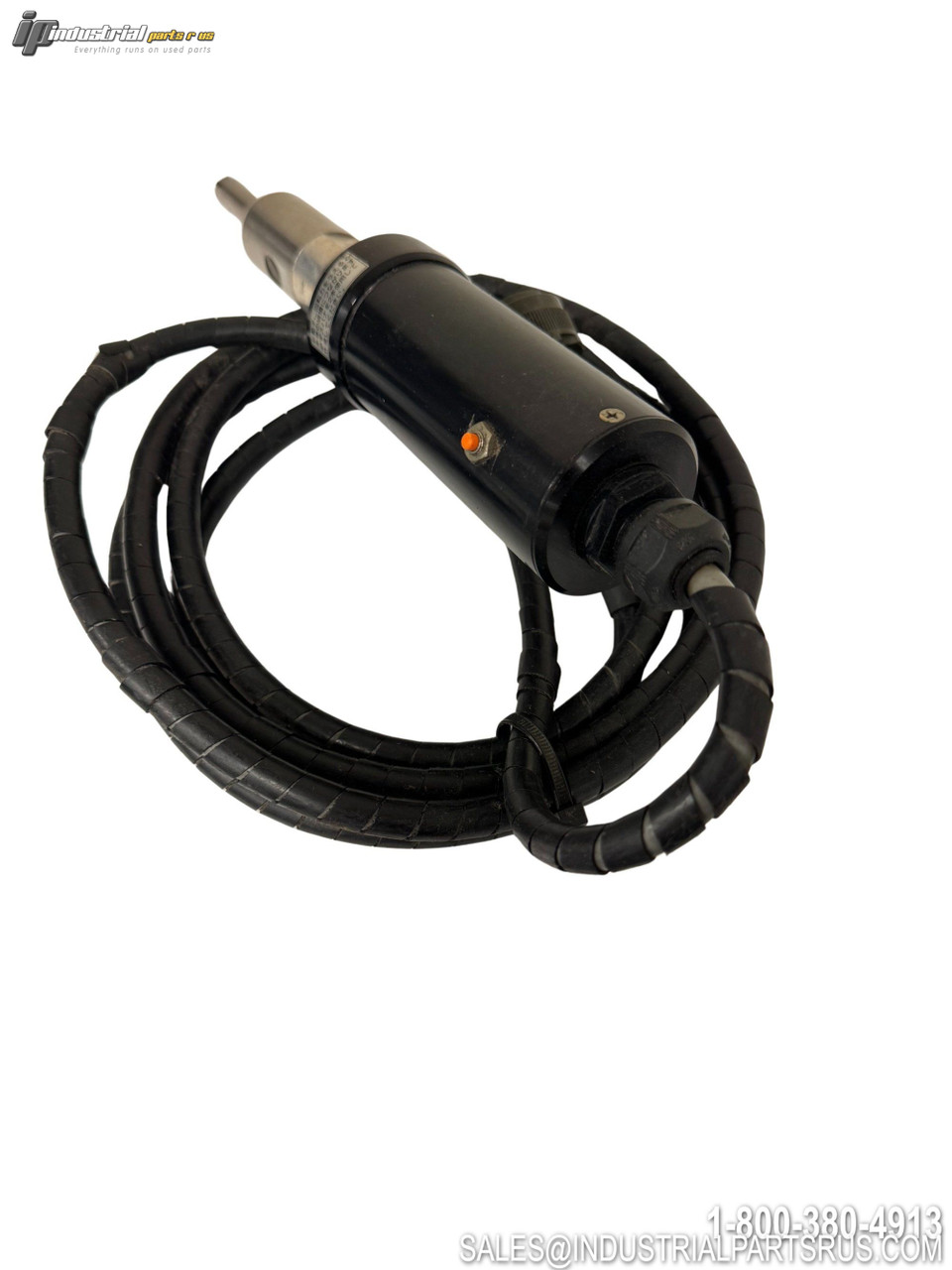

The Sonics U-B2226 is an ultrasonic booster manufactured by Sonics & Materials, Inc., a world leader in ultrasonic welding technology. The booster is a precision-machined mechanical amplitude transformer that sits between the converter (transducer) and the sonotrode (horn) in the ultrasonic welding stack, modifying the vibration amplitude passed from the converter to the horn. Sonics & Materials offers stack components — including converters, boosters, and horns — matched to their ultrasonic power supplies and available in 20, 30, 35, and 40 kHz frequencies for OEM and production welding applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Sonics |
| Model / Part Number | U-B2226 |
| Manufacturer | Sonics & Materials, Inc. |
| Product Type | Ultrasonic Booster |
| Function | Amplitude transformer — transfers and modifies vibration between converter and horn |
| Application | Ultrasonic plastic welding, sealing, cutting — OEM and production |
| Compatible Systems | Sonics & Materials ultrasonic welding systems (verify model compatibility) |
| Frequency | See label / verify (Sonics offers 20, 30, 35, 40 kHz) |
| Gain Ratio | See label / verify |
| Material | See label / verify (typically aluminum or titanium) |
| Mounting Type | See label / verify (O-ring mount or solid mount) |
| Input/Output Thread | See label / verify |
| Note | Exact specs for U-B2226 not found in public sources — verify all specs from physical label or Sonics documentation |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Sonics
Part Number U-B2226
Shelf J-127
Model U-B2226
MPN U-B2226
Type Power Transmission
