Product Description

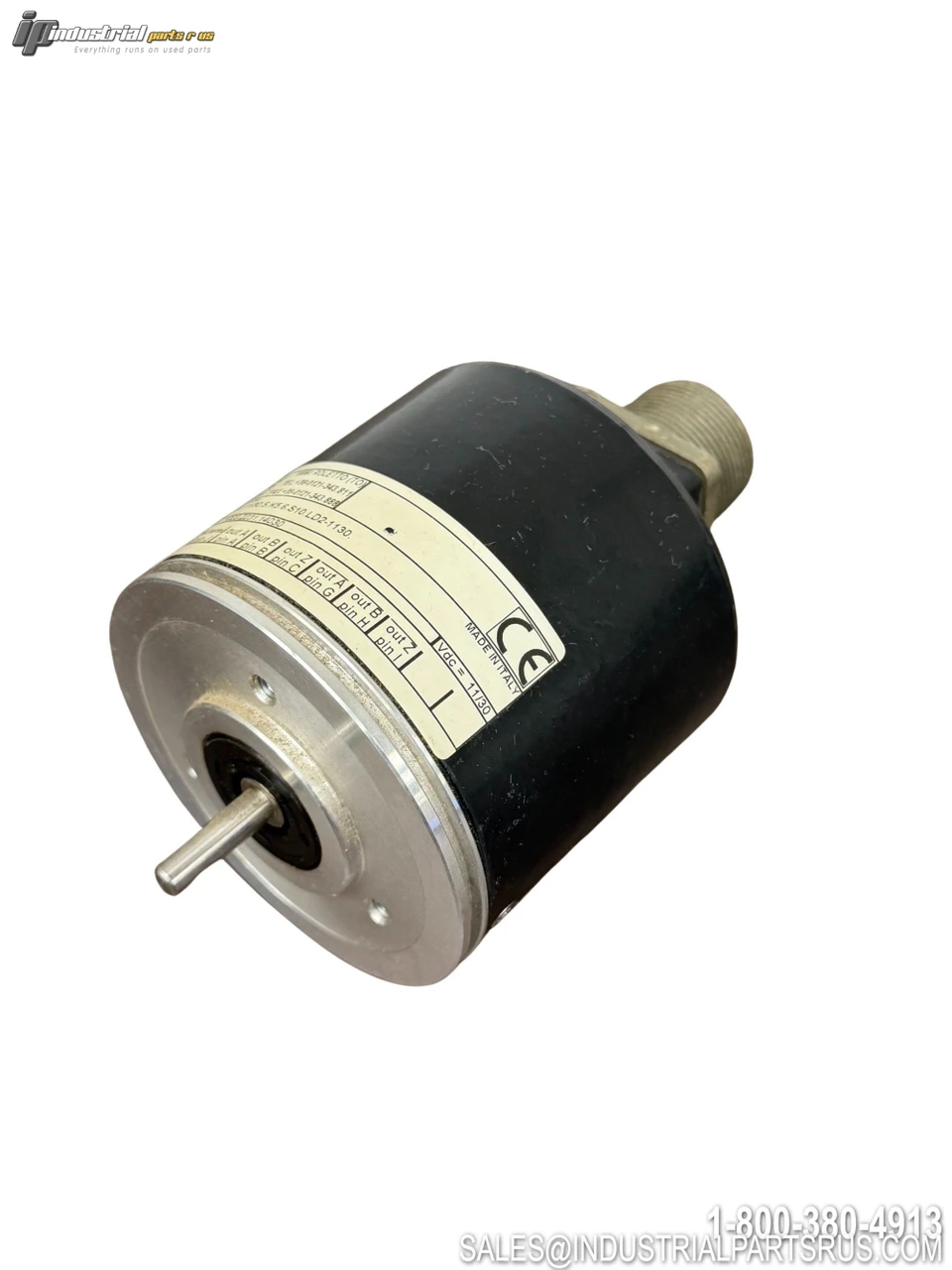

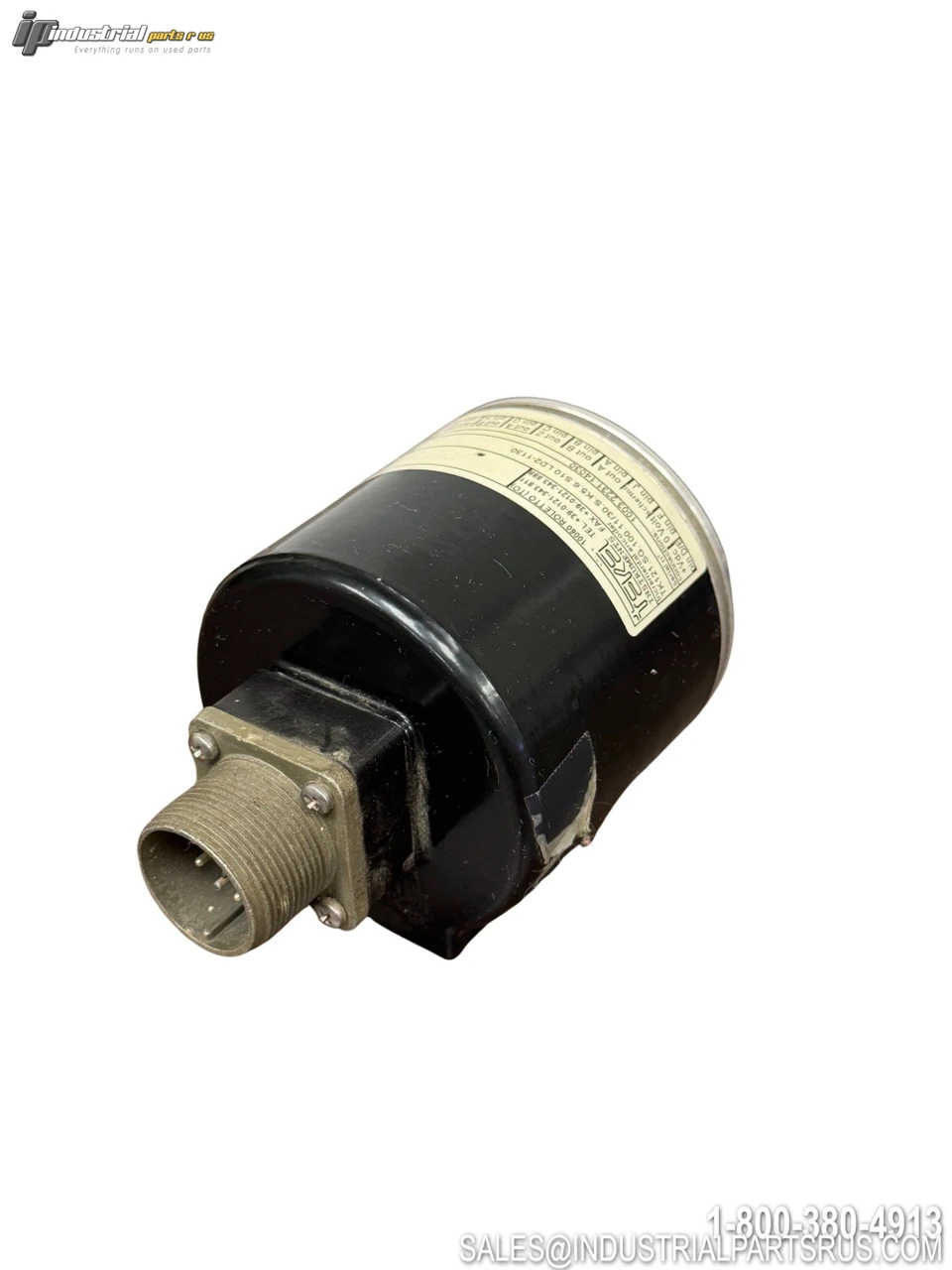

The TEKEL Instruments TK121.SG.100.11/30.S.K5.6.S10.LD2-1130 is an industrial incremental rotary encoder designed for position, speed, and motion feedback applications. The encoder features a solid shaft, circular connector, and incremental A, B, and Z output channels. The nameplate specifies an operating supply of 11–30 VDC. This unit was manufactured by TEKEL Instruments in Italy and is suitable for industrial automation, machinery, and motion-control applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | TEKEL Instruments |
| Model | TK121.SG.100.11/30.S.K5.6.S10.LD2-1130 |
| Product Type | Incremental Rotary Encoder |
| Supply Voltage | 11–30 VDC |
| Output Channels | A, B, Z |
| Complementary Outputs | A̅, B̅, Z̅ |
| Shaft Type | Solid Shaft |
| Electrical Connection | Circular Multi-Pin Connector |
| Serial Number | 1003.2231.14030 |
| Country of Manufacture | Italy |
| Applications | Industrial Automation, Position Feedback, Speed Monitoring, Motion Control |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Output Type Line Driver (Differential)
Sensor Type Rotary Encoder
Manufacturer Tekel Instruments
Shaft Diameter 6 mm
Enclosure Type IP65 (EN60529 / DIN 40050) – K5
Part Number TK121.SG.100.11/30.S.K5.6.S10.LD2-1130
Shelf D-7 Tub 1
Model TK121.SG.100.11/30.S.K5.6.S10.LD2-1130
MPN TK121.SG.100.11/30.S.K5.6.S10.LD2-1130
Type Incremental Encoder
