Product Description

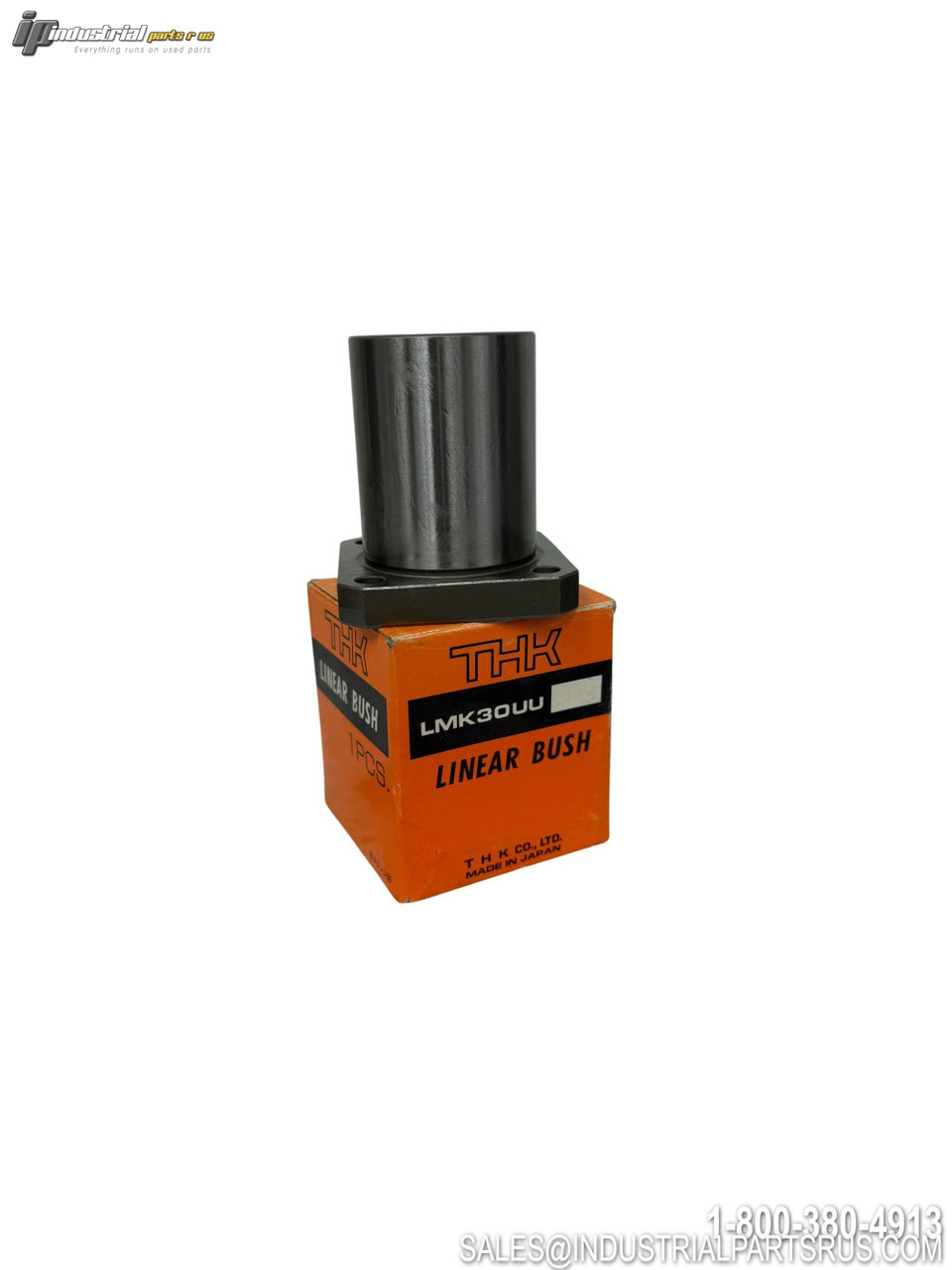

The THK LMK30UU is a square flanged linear ball bearing designed for precision linear motion applications. This bearing features a unique square flange design with flats at four locations, enabling compact designs with lower core height compared to round flange types. It is engineered for use with g6 metric shafts in CNC machines, 3D printers, and automated machinery.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | THK |
| Model/Part Number | LMK30UU |
| Type | Linear Bearing |
| Bore Diameter | 30mm |
| Outer Diameter | 45mm |
| Width/Length | 64mm |
| Flange Size | 58x58x10mm |
| Weight | 375g |
| Material | 52100 Chrome Steel |
| Number of Ball Rows | 6 |
| Dynamic Load Rating | 160 kgf |
| Static Load Rating | 280 kgf |
| Seal Type | Rubber Seals Both Ends |
| Mounting Hole Distance | 44mm |
| Series | LMK |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer THK
Part Number LMK30UU
Shelf K-65 Tub 3
Model LMK30UU
MPN LMK30UU
Type Linear Bearing
