Product Description

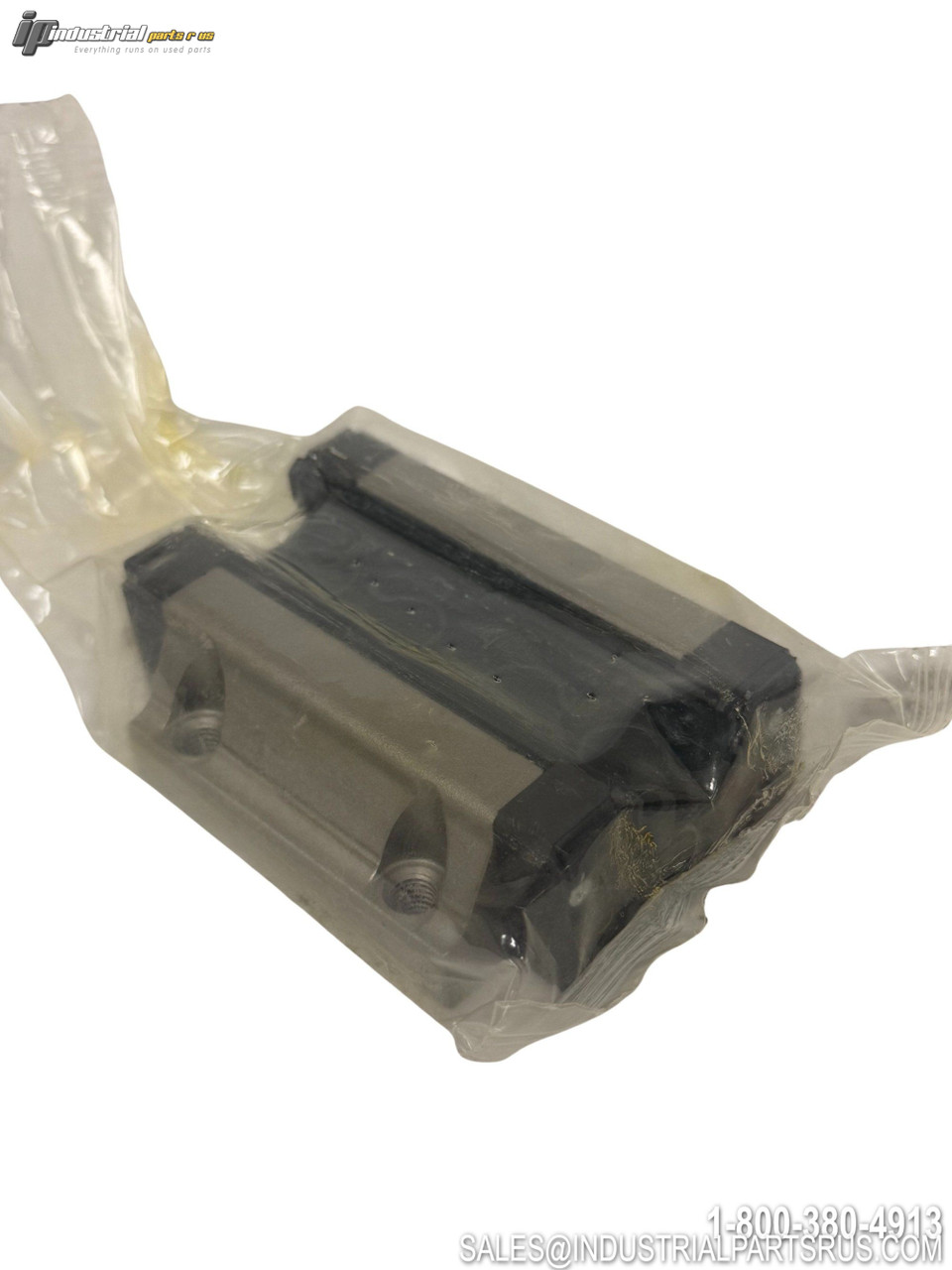

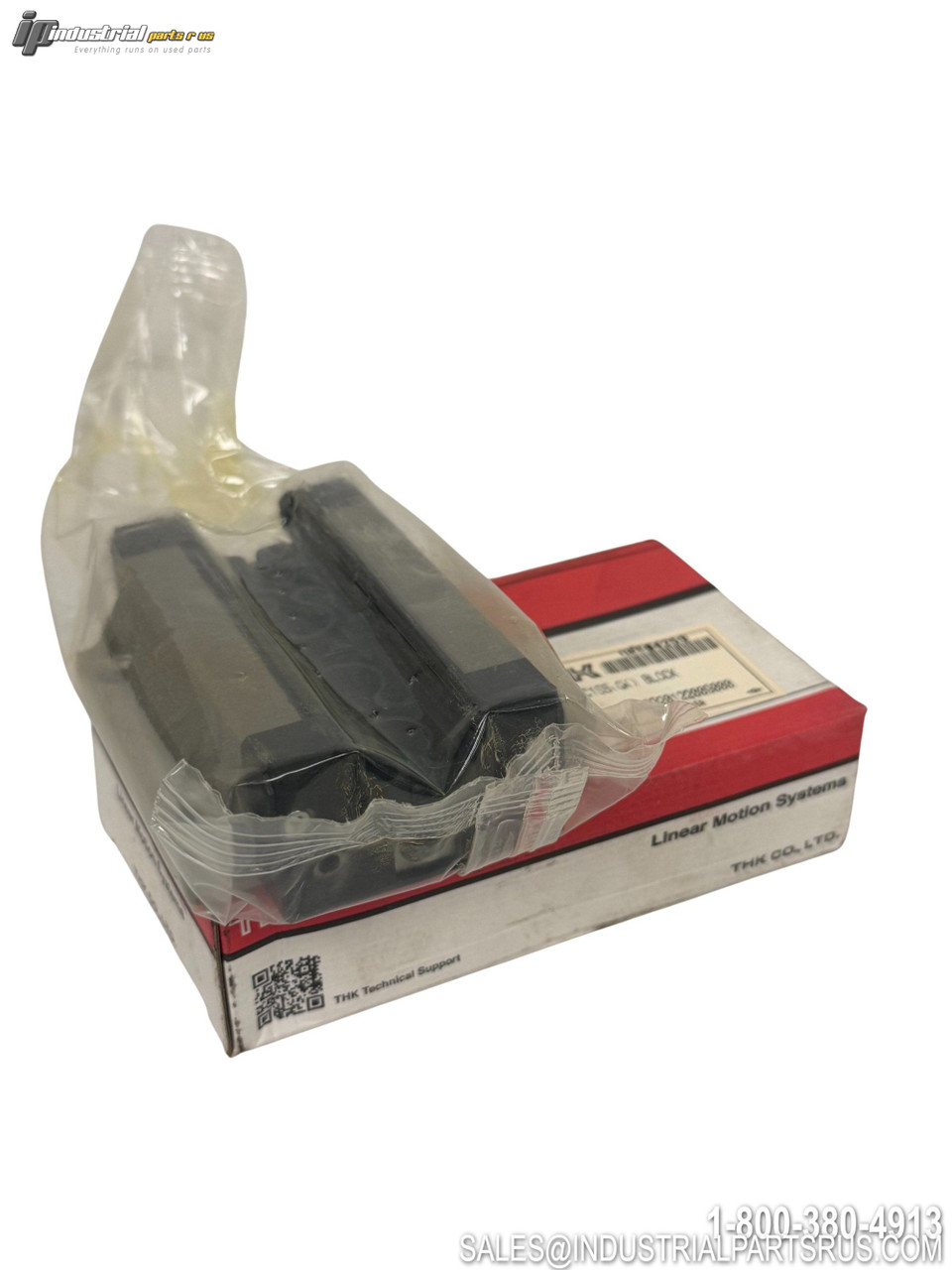

The THK SHS20C1SS(GK) is a linear guide block (carriage) from THK's SHS series featuring caged ball technology. This C-type flanged block is designed for use with 20mm THK SHS series linear rails and provides smooth, precise linear motion with reduced noise and extended service life. The caged ball design eliminates ball-to-ball friction and enables high-speed operation with low maintenance requirements.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | THK |
| Model/Part Number | SHS20C1SS(GK) |
| Series | SHS |
| Block Type | C-Type (Flanged) |
| Rail Width | 20mm |
| Carriage Width | 63mm |
| Carriage Length | 79mm |
| Height | 30mm |
| Static Load Capacity | 38.4 kN |
| Ball Design | Caged Ball |
| Contact Angle | 45° |
| Mounting | Top or Bottom |
| Bolt Size | M6 |
| Seal Type | SS (Side and End Seals) |
| Grease Nipple | B-M6 |
| Weight | 1.42 lb (0.64 kg) |
| Load Design | 4-Way Equal Load |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer THK
Part Number SHS20C1SS(GK)
Shelf GS 2 Tub 2
Model SHS20C1SS(GK)
MPN SHS20C1SS(GK)
Type Linear Guide
