Product Description

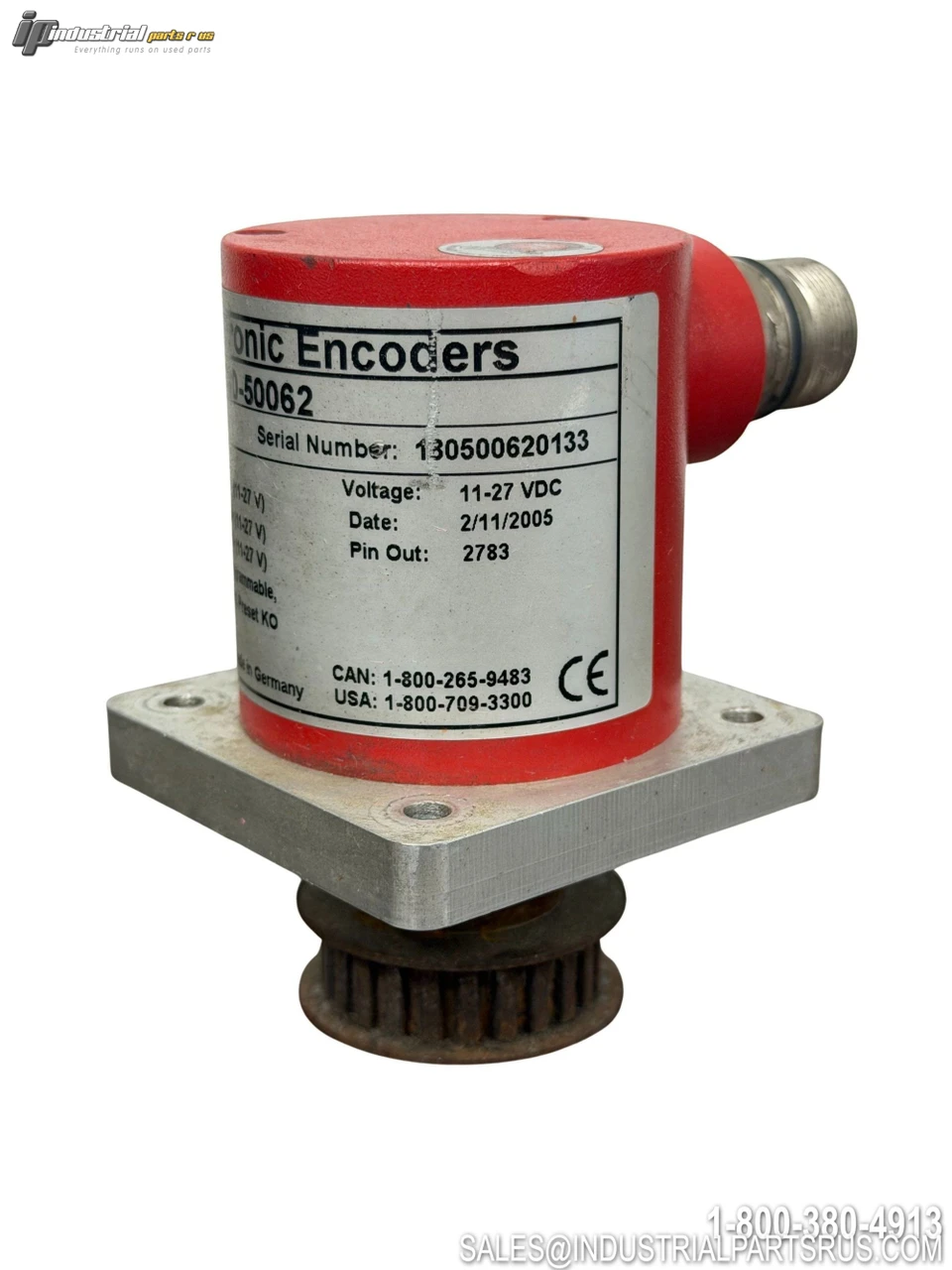

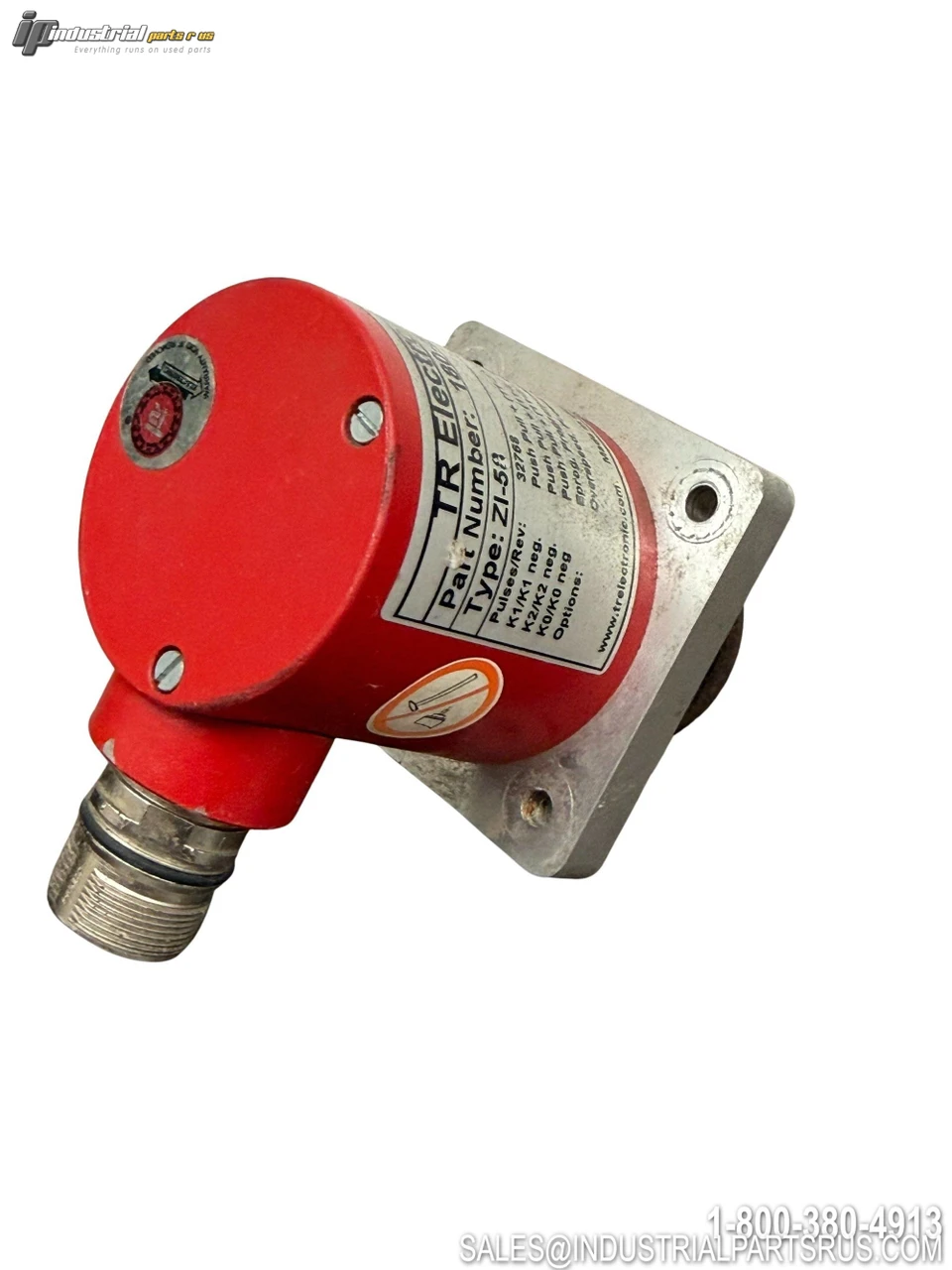

The TR Electronic 180-50062 is a ZI-58 incremental rotary encoder designed for industrial position and motion feedback applications. This encoder is rated for 32,768 pulses per revolution and operates from an 11–27 VDC supply. The nameplate identifies Push-Pull outputs for the K1/K1 neg., K2/K2 neg., and K0/K0 neg. signal channels. It also features EPROG programmability, overspeed functionality, and preset K0. The unit has a flange mounting plate, side-mounted circular electrical connector, and an attached timing pulley as pictured.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | TR Electronic |
| Part Number | 180-50062 |
| Type | ZI-58 |
| Product Type | Incremental Rotary Encoder |
| Resolution | 32,768 Pulses / Revolution |
| Supply Voltage | 11–27 VDC |
| K1 / K1 Neg. Output | Push-Pull + (11–27 V) |
| K2 / K2 Neg. Output | Push-Pull + (11–27 V) |
| K0 / K0 Neg. Output | Push-Pull + (11–27 V) |
| Programming | EPROG Programmable |
| Additional Functions | Overspeed, Preset K0 |
| Pin Out | 2783 |
| Electrical Connection | Side-Mounted Circular Connector |
| Mounting | Flange Mount |
| Date | 2/11/2005 |
| Country of Manufacture | Germany |
| Included | Encoder with attached mounting plate and timing pulley as pictured |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type Push-Pull
Sensor Type Incremental Rotary Encoder
Full Load Amps 30 mA (Push-Pull); 50 mA (Line Driver)
Manufacturer TR Electronic
Part Number 180-50062
Shelf E-6 Tub 1
Model ZI-58
MPN 180-50062
Type Incremental Encoder
