Product Description

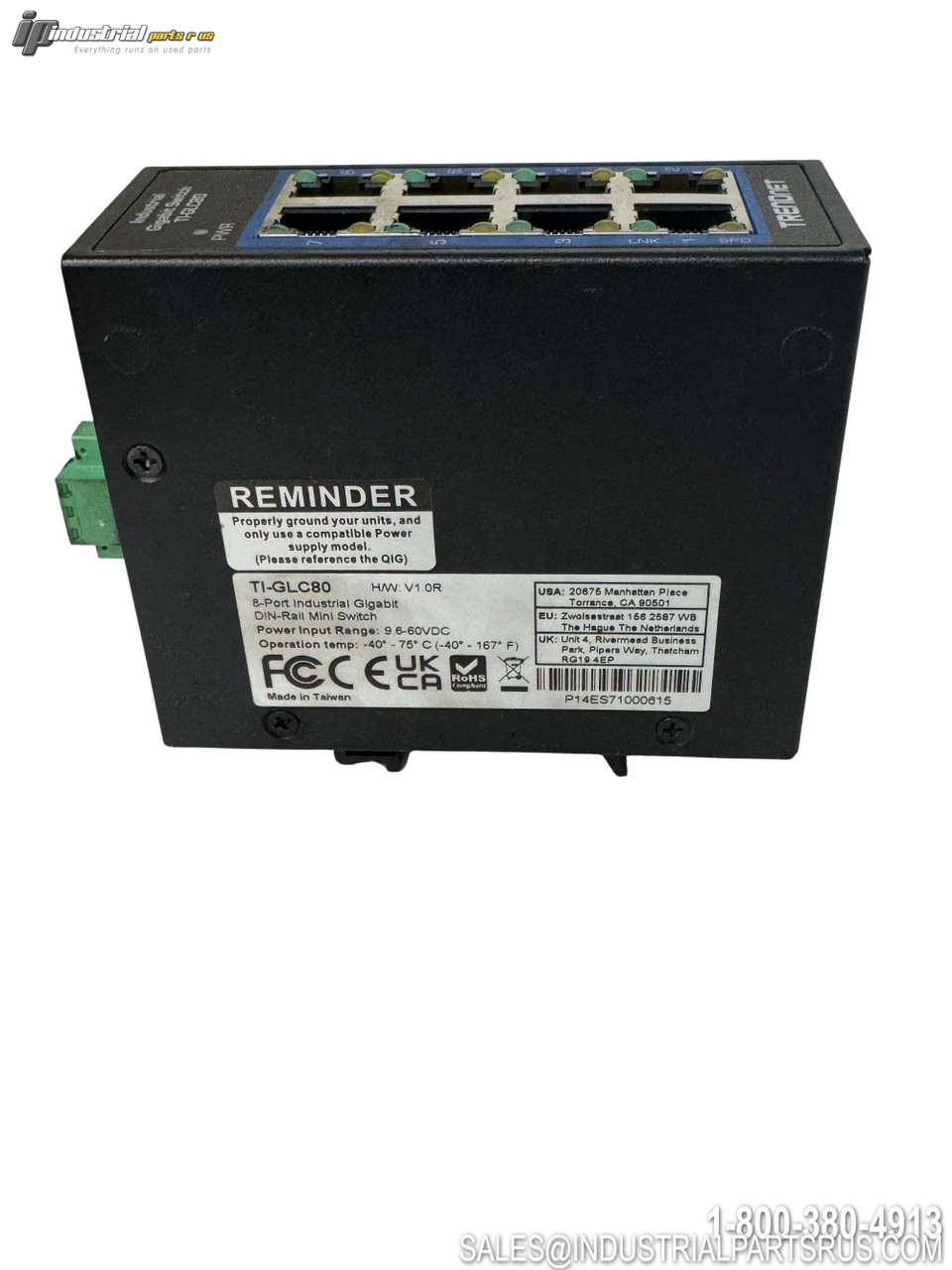

TRENDnet's 8-Port Industrial Gigabit DIN-Rail Mini Switch, model TI-GLC80, is a reliable and rugged networking solution that is designed for use in both extreme and demanding environments. This compact industrial switch features a rugged IP30 rated metal enclosure, and is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). The hardened industrial mini switch features eight copper Gigabit ports for high-speed device connections.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Trendnet |
| Model/Part Number | TI-GLC80 |
| Number of Ports | 8 |
| Port Type | Gigabit Copper Ethernet |
| Input Voltage | 12-56VDC |
| Power Consumption | 2.7W Max |
| Switch Type | Unmanaged |
| Switching Fabric | 16Gbps |
| MAC Address Table | 4K entries |
| Data RAM Buffer | 125KB |
| Jumbo Frame | 9KB |
| Forwarding Rate | 11.58Mpps (64-byte packet) |
| Operating Temperature | -40° to 75°C (-40° to 167°F) |
| IP Rating | IP30 |
| Enclosure Material | Metal |
| Mounting Type | DIN-Rail, Wall Mount, Desktop |
| Dimensions | 5" L x 3" W x 6" H |
| Weight | 0.60 lbs |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Trendnet
Part Number TI-GLC80
Shelf K-69
Model TI-GLC80
MPN TI-GLC80
Type Network Module
