Product Description

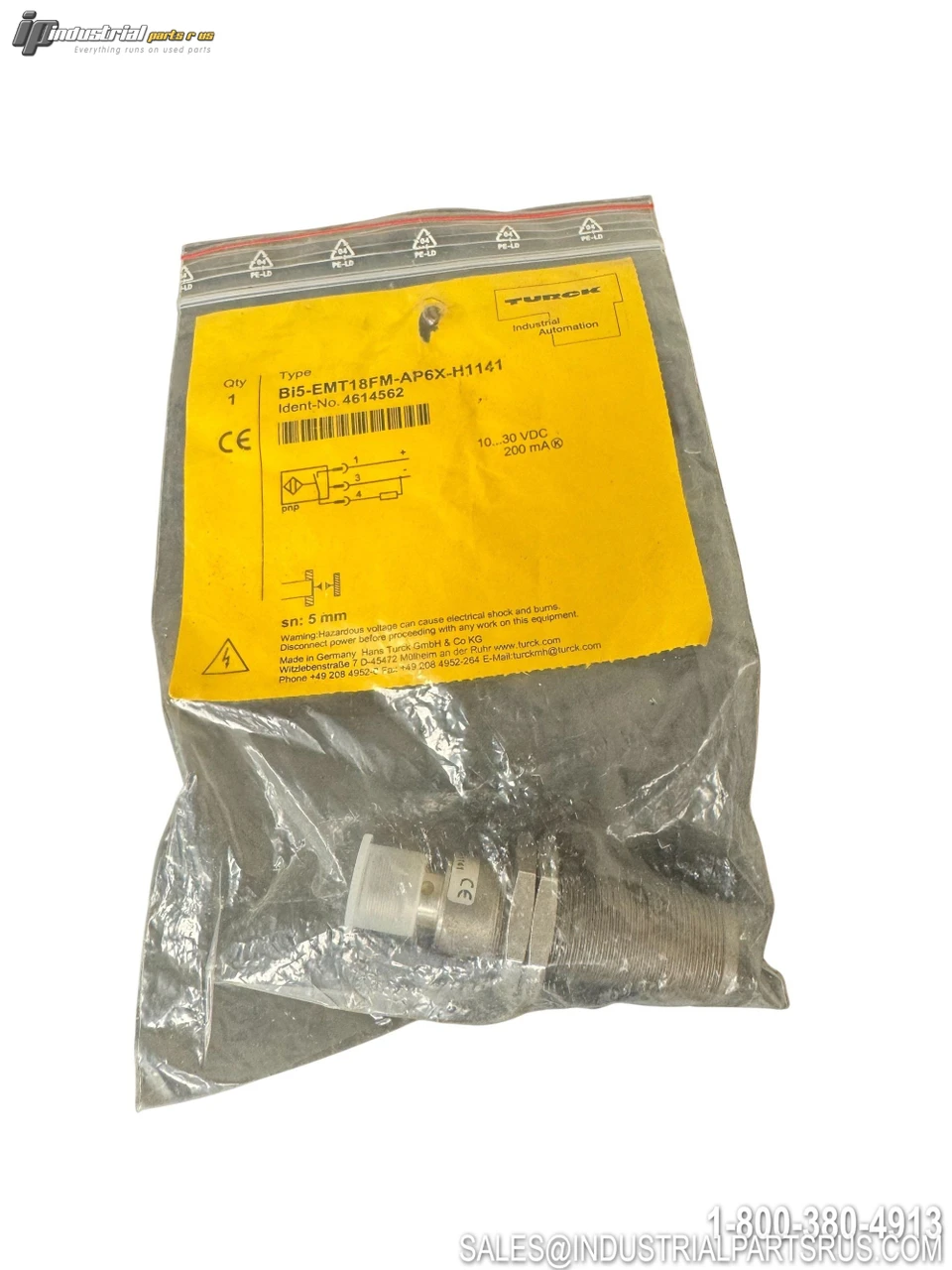

The Turck Bi5-EMT18FM-AP6X-H1141 is a cylindrical, flush-mount (embeddable) inductive proximity sensor in an M18 threaded barrel housing. It detects metal targets contactlessly using a high-frequency electromagnetic field, providing a 5 mm rated sensing distance with a PNP normally-open (sourcing) output. The sensor operates on 10–30 VDC, is rated to 200 mA, carries an IP67 ingress protection rating, and connects via a 4-pin M12 Eurofast male connector.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Turck |
| Model / Part Number | Bi5-EMT18FM-AP6X-H1141 |
| Product Type | Inductive Proximity Sensor |
| Sensing Range (Rated) | 5 mm |
| Supply Voltage | 10–30 VDC |
| Maximum Output Current | 200 mA |
| Output Type | PNP (Sourcing) |
| Output Function | Normally Open (NO) |
| Body Style | Cylindrical, Threaded Barrel |
| Thread Size | M18 x 1 |
| Mounting Type | Flush (Embeddable) |
| Housing Material | Metal, CuZn (Brass), Chrome-plated |
| Active Area Material | Plastic, PA12-GF30 |
| Protection Rating | IP67 |
| Electrical Connection | M12 x 1 Eurofast Male Connector, 4-Pin |
| Wiring | DC 3-Wire |
| Switching State Indicator | Yellow LED |
| Ambient Temperature | -25°C to +70°C |
| Overall Length | 52 mm |
| Sensing Technology | Inductive (High-Frequency Electromagnetic Field) |
| Target Material | Metal |
| Max. Tightening Torque | 25 Nm |
| Short Circuit Protection | Yes (Cyclic) |
| Reverse Polarity Protection | Yes |
| Category | Sensors & Switches / Proximity Switch |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type PNP
Sensor Type Inductive
Country/Region of Manufacture Germany
Operating Distance 5 mm
Manufacturer Turck
Enclosure Type IP67
Part Number BI5-EMT18FM-AP6X-H1141
Shelf O-9
Model BI5-EMT18FM-AP6X-H1141
MPN BI5-EMT18FM-AP6X-H1141
Type Inductive Proximity Sensor
