Product Description

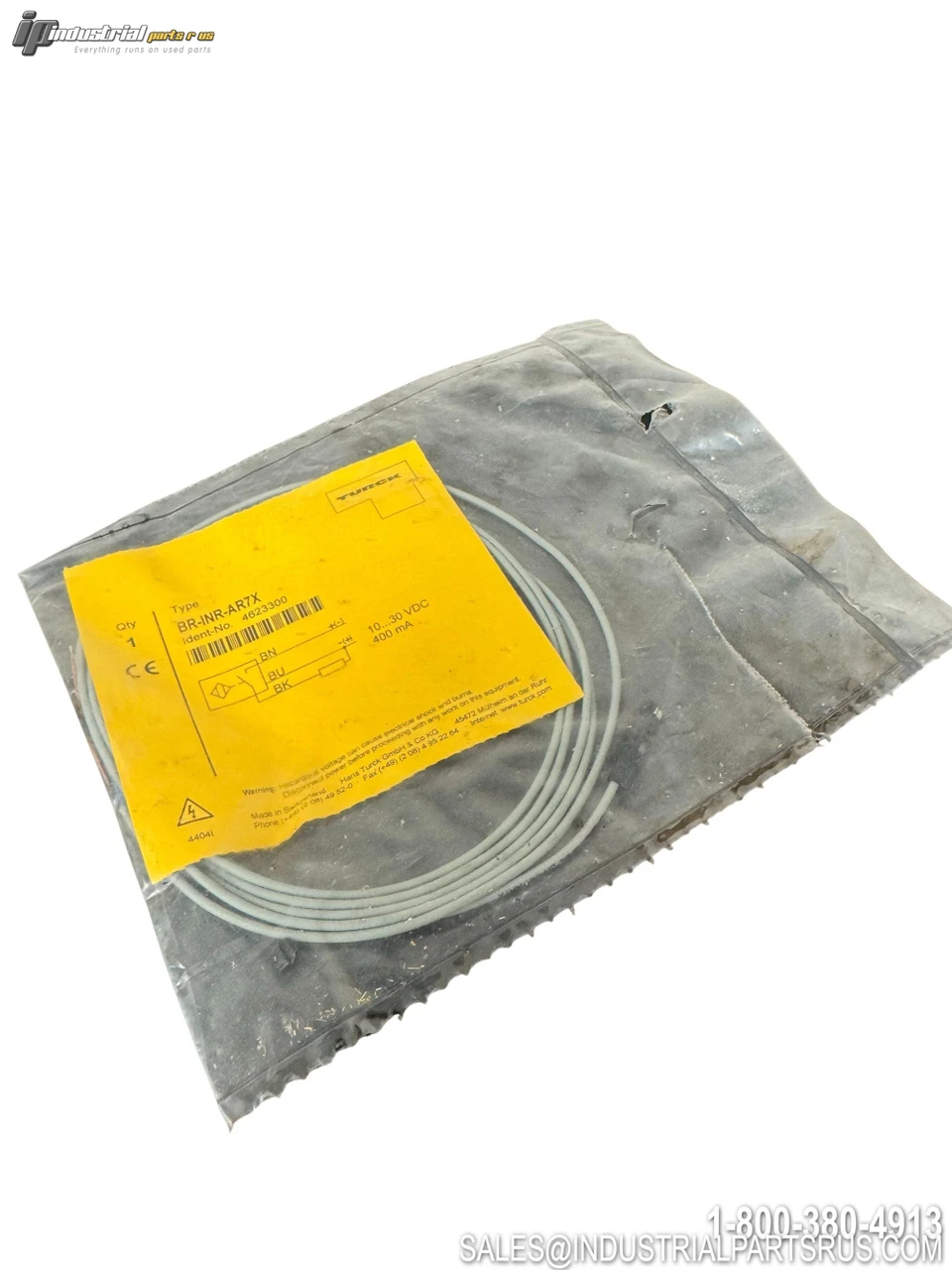

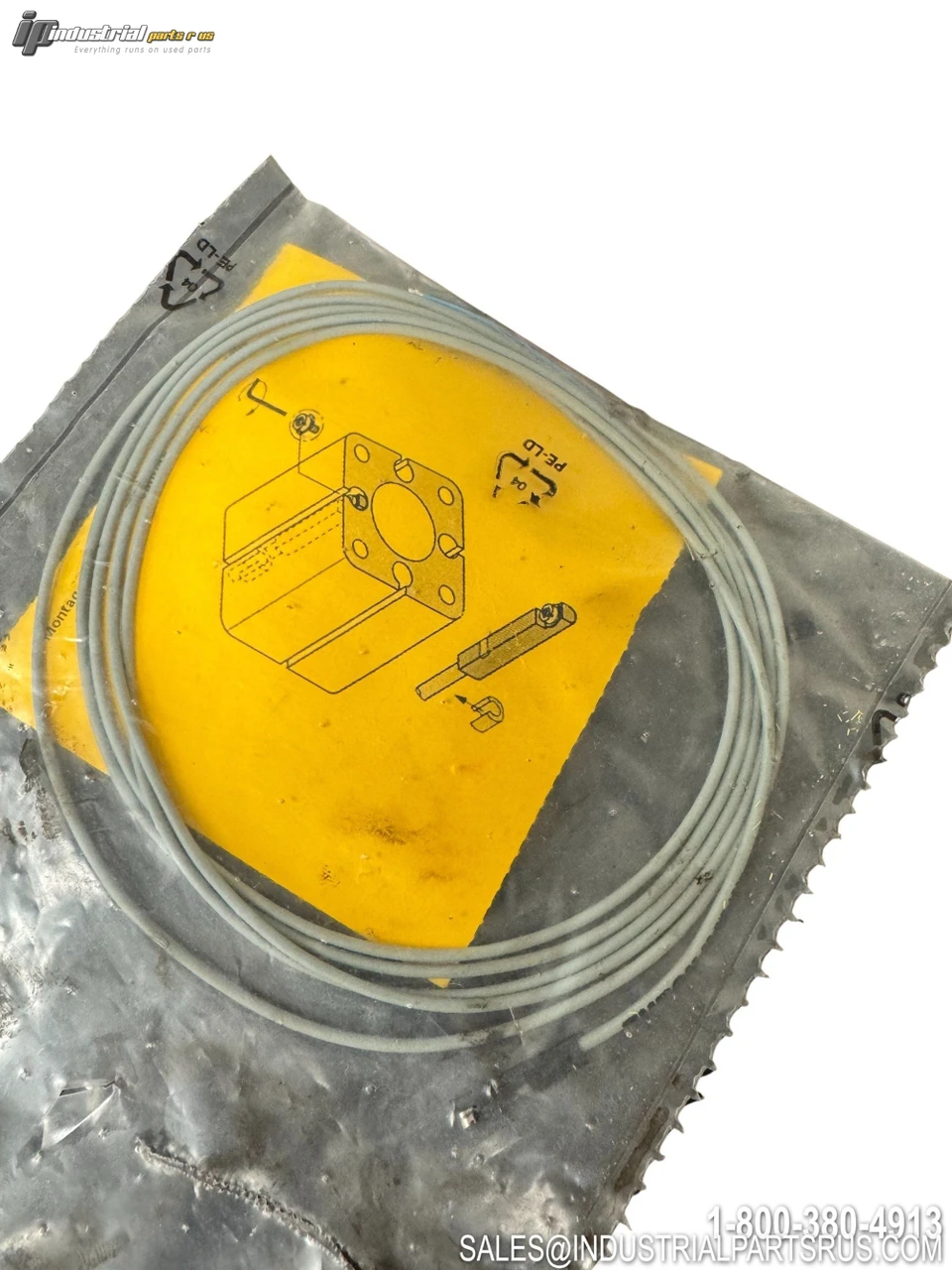

The Turck BR-INR-AR7X is a magnetic field sensor designed for pneumatic cylinder position detection. It features a compact rectangular housing (plastic PA12) and uses magnetic-inductive sensing technology to detect piston position through the non-ferrous cylinder wall without direct contact. The sensor operates on a 3-wire DC circuit with NPN (current-sinking) output and is rated for 10–30 VDC supply at up to 400 mA.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Turck |
| Model / Part Number | BR-INR-AR7X |
| Product Type | Magnetic Field Cylinder Position Sensor (Proximity Sensor) |
| Sensing Technology | Magnetic-Inductive |
| Application | Pneumatic Cylinder Position Detection |
| Supply Voltage | 10–30 VDC |
| Current Rating (Max) | 400 mA |
| Output Type | NPN (Current Sinking), Normally Open (NO) |
| Wiring | DC 3-Wire |
| Body Style | Rectangular |
| Housing Material | Plastic, PA12 |
| Housing Height | 6 mm |
| Mounting / Slot Type | T-slot / C-slot Pneumatic Cylinder (Universal) |
| Connection Type | Base model (suffix variants: -V1131 = 1m cable; -0.3M-RS 4T = M8 pigtail) |
| Short Circuit / Overload Protection | Yes (Automatic Reset) |
| Reverse Polarity Protection | Yes |
| Series | BR (Rectangular Cylinder Sensor) |
| Manufacturer | Turck (Hans Turck GmbH & Co. KG) |
