Product Description

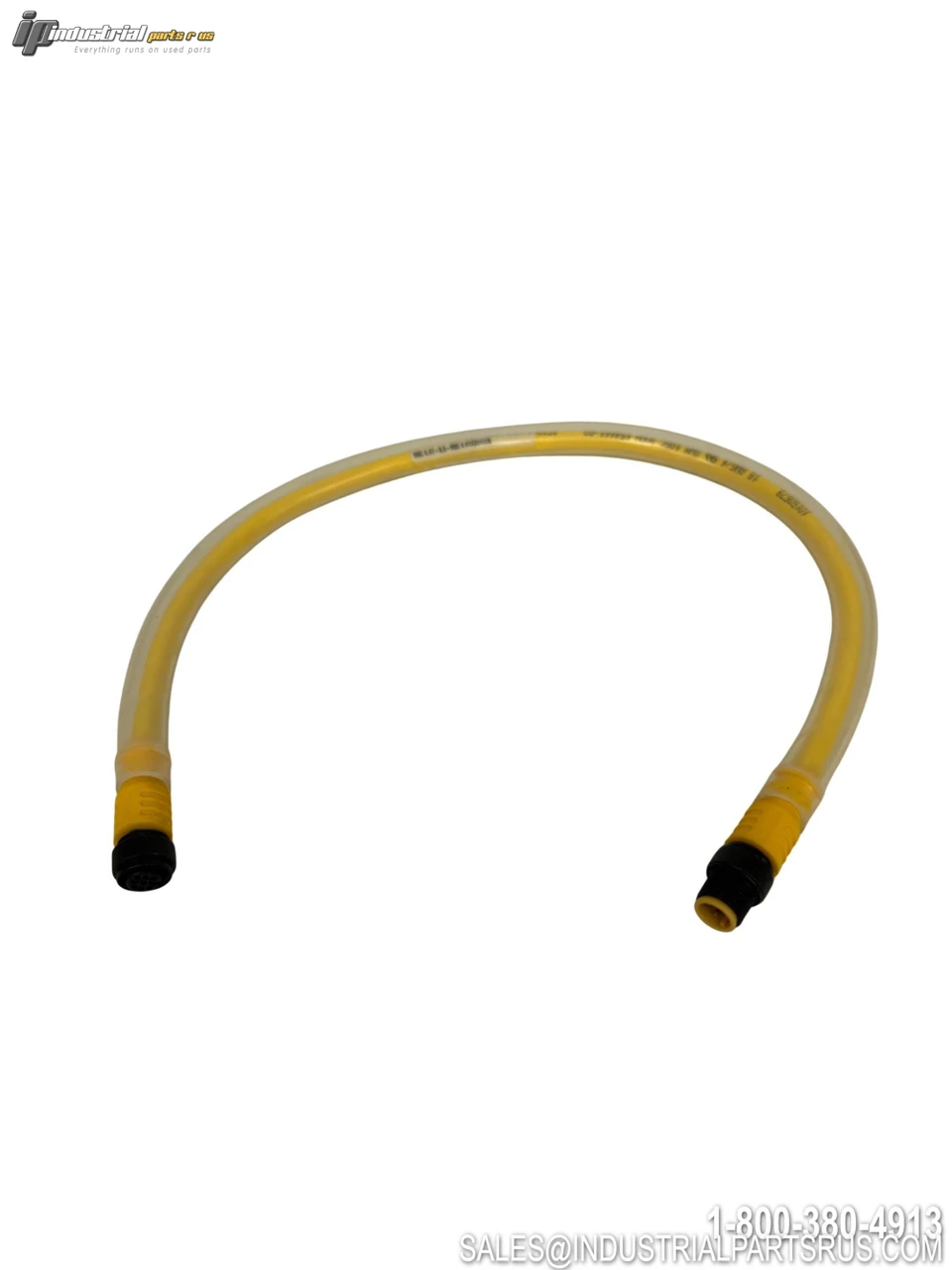

The TURCK RKC 4.4T-0.5-RSC/CS11178 is an actuator and sensor extension cable (double-ended cordset) from TURCK's eurofast® M12 connectivity product family. It features a straight female M12 A-code connector on one end (RKC) and a straight male M12 A-code connector on the other end (RSC), with a 0.5-meter cable length. The "/CS11178" suffix denotes a custom specification designation assigned by TURCK for a specific customer or application requirement, based on the standard RKC 4.4T-x-RSC 4.4T platform. This cordset is designed for signal transmission in industrial automation applications, connecting sensors, actuators, and field devices to control systems.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | TURCK |

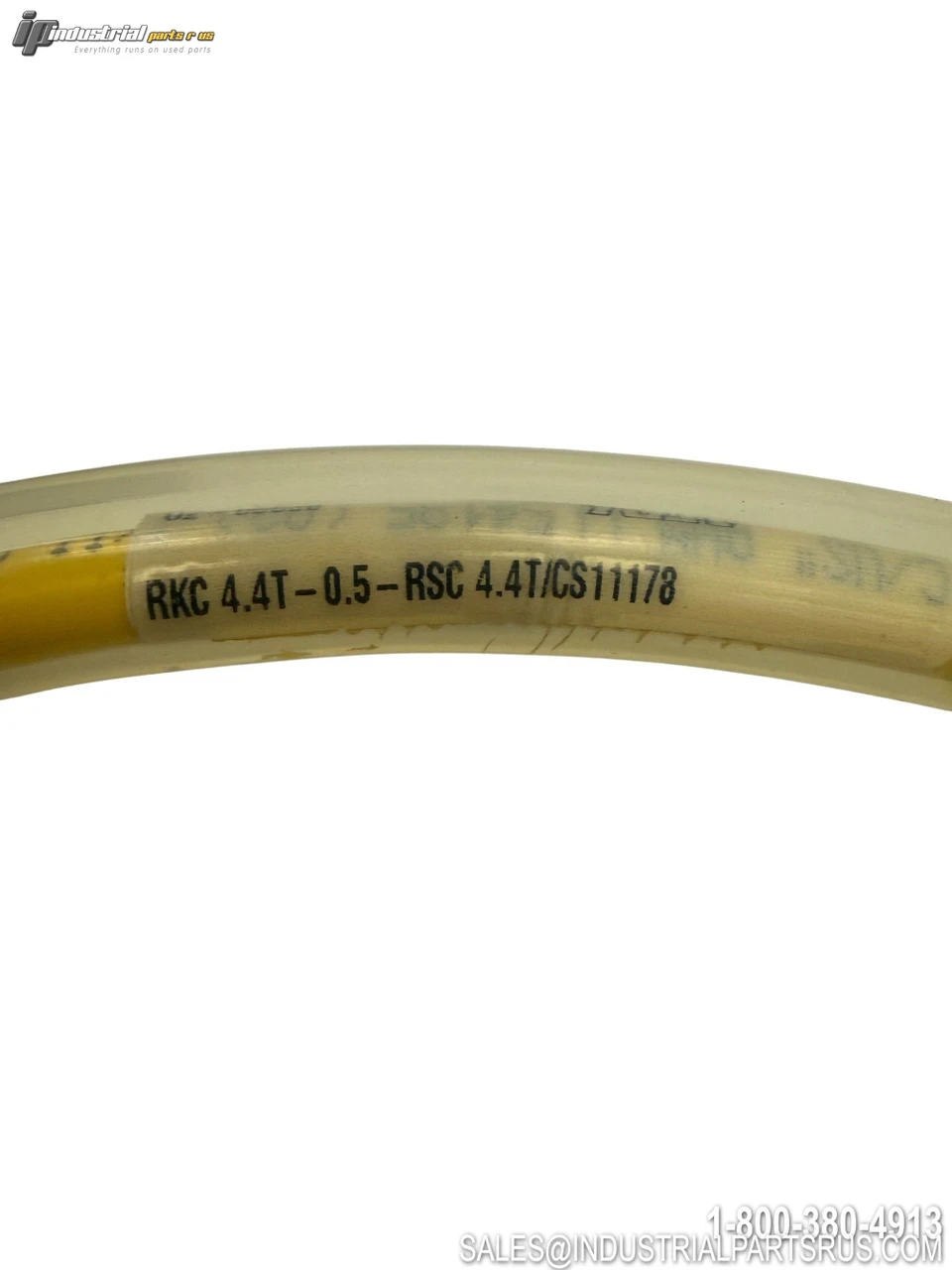

| Model / Part Number | RKC 4.4T-0.5-RSC/CS11178 |
| Product Type | Actuator and Sensor Cable – Extension Cable (Double-Ended Cordset) |
| Series | eurofast® M12 |
| Design | Double-ended (Extension Cable) |
| Application | Signal Transmission |
| Connector A (End 1) | Female, M12 × 1, Straight, A-code |

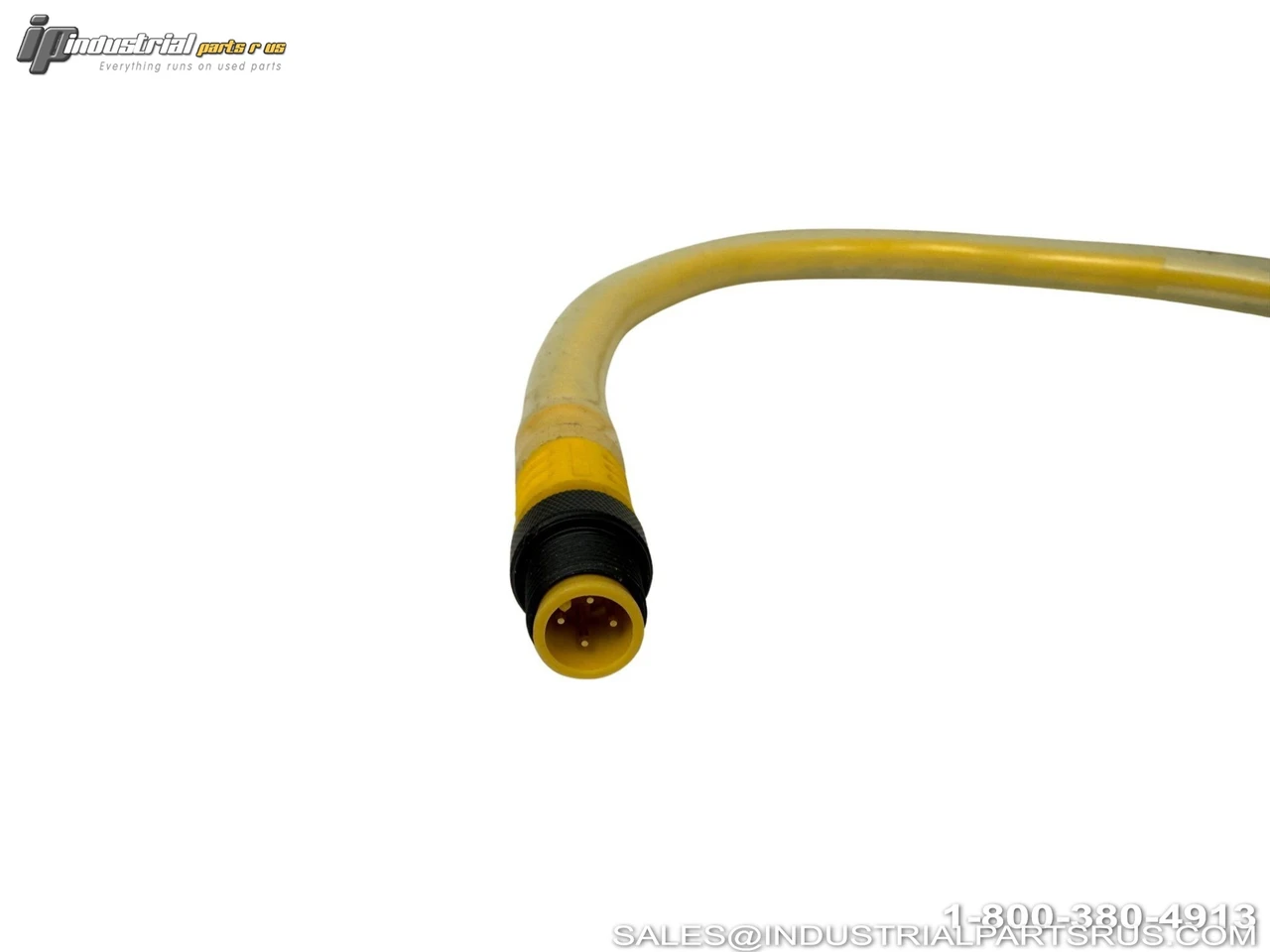

| Connector B (End 2) | Male, M12 × 1, Straight, A-code |
| Number of Contacts | 4 (both ends) |
| Number of Conductors | 4 |
| Cable Length | 0.5 m (approx. 1.64 ft) |
| Rated Voltage | 250 V |
| Rated Current | 4 A |
| Cable Jacket Material | PVC, Yellow |
| Coupling Nut Material | Brass (CuZn), Nickel-plated |
| Contacts Material | Brass (CuZn), Gold-plated |
| Connector Body | Plastic, TPU, Yellow |
| IP Protection Rating (When Coupled) | IP68, IP69K |
| NEMA Rating | NEMA 1, 3, 4, 6P |
| Pollution Degree | 3 |
| Mechanical Life | > 100 Mating Cycles |
| Tightening Torque | 0.8 – 1 Nm |
| Special Features | Tray Cable; Custom Spec /CS11178 |
| Approvals | UL Listed, CSA, RoHS |
| Design Standard | IEC 61076-2-101 |
| Customs Tariff Number | 8544429090 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture MEXICO
Material Brass (CuZn), Nickel-plated
Torque 0.8 - 1 Nm
Current 4 A
Application Signal Transmission
Manufacturer Turck
Cable PVC, Yellow
Enclosure Type NEMA 1, 3, 4, 6P
Part Number RKC 4.4T-0.5-RSC/CS11178
Length 0.5 m
Series eurofast M12
Shelf J-121
Model RKC 4.4T-0.5-RSC/CS11178
MPN RKC 4.4T-0.5-RSC/CS11178
Voltage 250 V
Type Sensor Actuator Cable
