Product Description

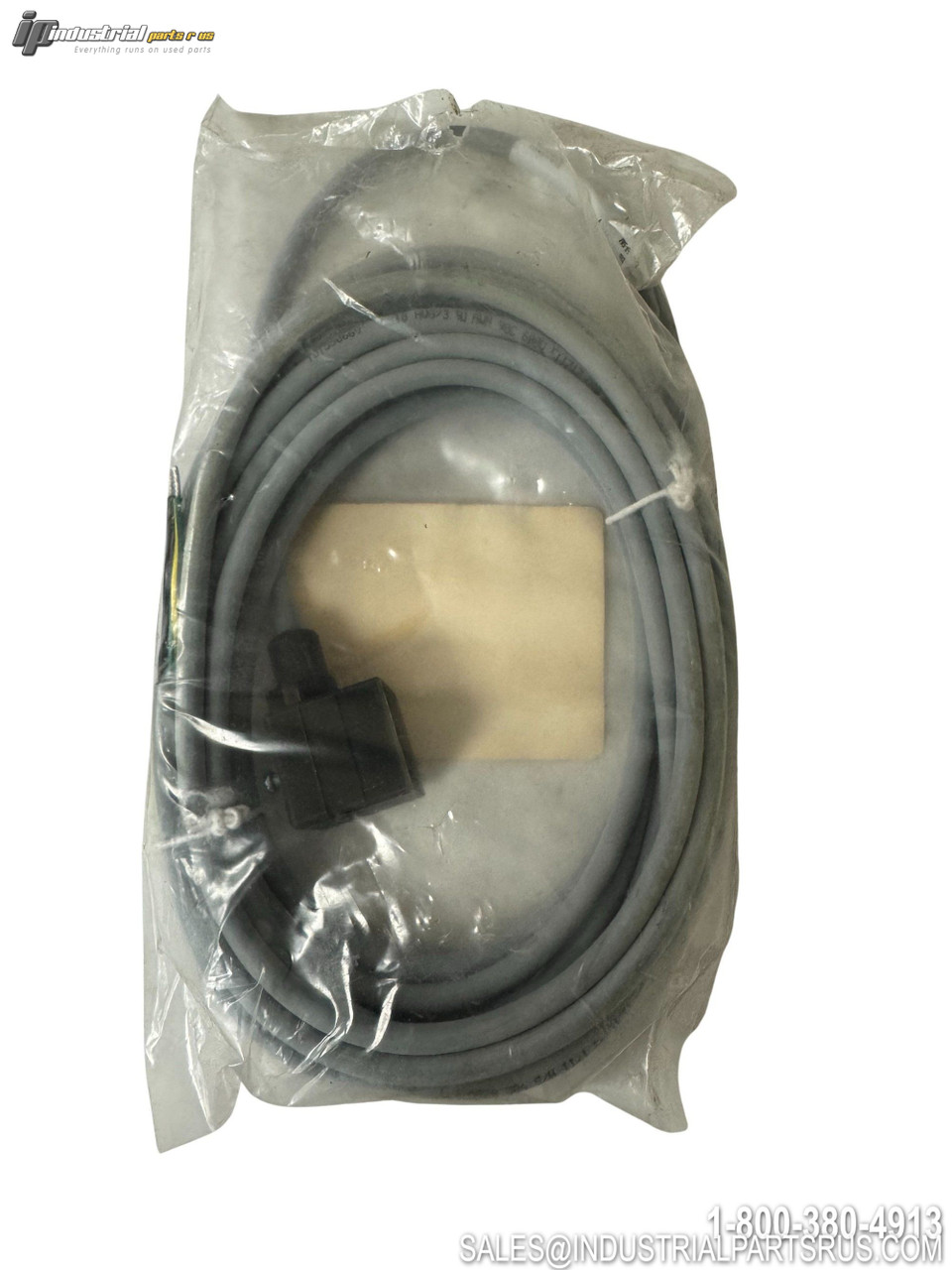

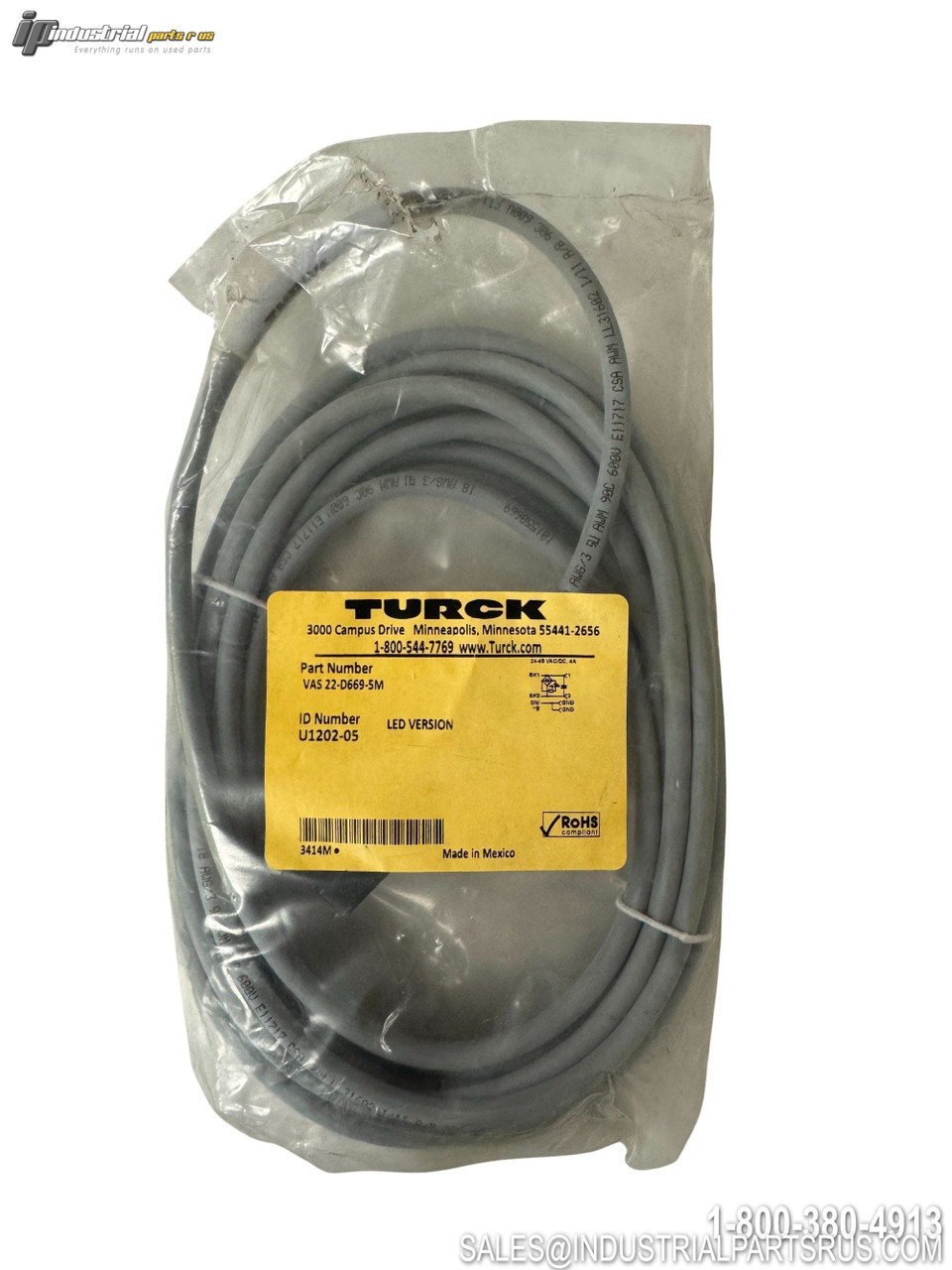

The Turck VAS 22-D669-5M is a single-ended valve solenoid connection cable (cordset) designed to connect DIN 43650 Form A valve solenoids to an automation system via bare-end flying leads. It features an 18mm Type A contact spacing housing equipped with an indicator LED and MOV (Metal Oxide Varistor) surge suppressor, a 4-pin female DIN 43650 connector with the cable exit on the side opposite the ground, and a 5-meter TPU-jacketed gray cable with 3 × 18 AWG conductors. This cordset is IP67-rated when properly connected and is RoHS compliant, making it suitable for demanding industrial valve wiring applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Turck |
| Model / Part Number | VAS 22-D669-5M |
| Alternate Part Number (Order Code) | U1202-05 |
| Product Type | Single-Ended Valve Solenoid Cordset (Open-End) |
| Series / Product Family | Valve Plug Connectivity – DIN 43650 to Bare Leads |
| Connector Type (End 1) | 4-Pin Female DIN 43650 Valve Plug, Form A, 18mm Contact Spacing |
| Connector Type (End 2) | Bare End Flying Leads |
| Connector Orientation | Right Angle (Cable exit opposite ground side) |
| Pin Count | 3 Pin (2 conductors + 1 ground; ground contacts parallel wired) |
| Cable Length | 5 m (16.4 ft) |
| Number of Conductors | 3 (2 Signal + 1 Ground) |
| Wire Gauge | #18 AWG |
| Jacket Material | TPU (Thermoplastic Polyurethane) |
| Jacket Color | Gray |
| Housing Color | Translucent Black |
| Contact Material | Brass |
| Contact Plating | Silver |
| Rated Voltage (AC) | 48 VAC |
| Rated Current | 4 A |
| Suppression / Indicator | Indicator LED + MOV (Metal Oxide Varistor) |
| IP Protection Rating | IP67 (IEC) when connected and secured |
| NEMA Rating | NEMA 1, 3, 4, 6P |
| Housing / Body Material | Oil-Resistant Polyurethane Body; Nylon Contact Carrier |
| Compliance | RoHS Compliant |
| IEC Connector Standard | DIN 43650 Form A |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture Mexico
Manufacturer Turck
Enclosure Type IP67 (IEC) / NEMA 1, 3, 4, 6P
Part Number VAS 22-D669-5M
Shelf O-9
Model VAS 22-D669-5M
MPN VAS 22-D669-5M
Type Solenoid Valve
