Product Description

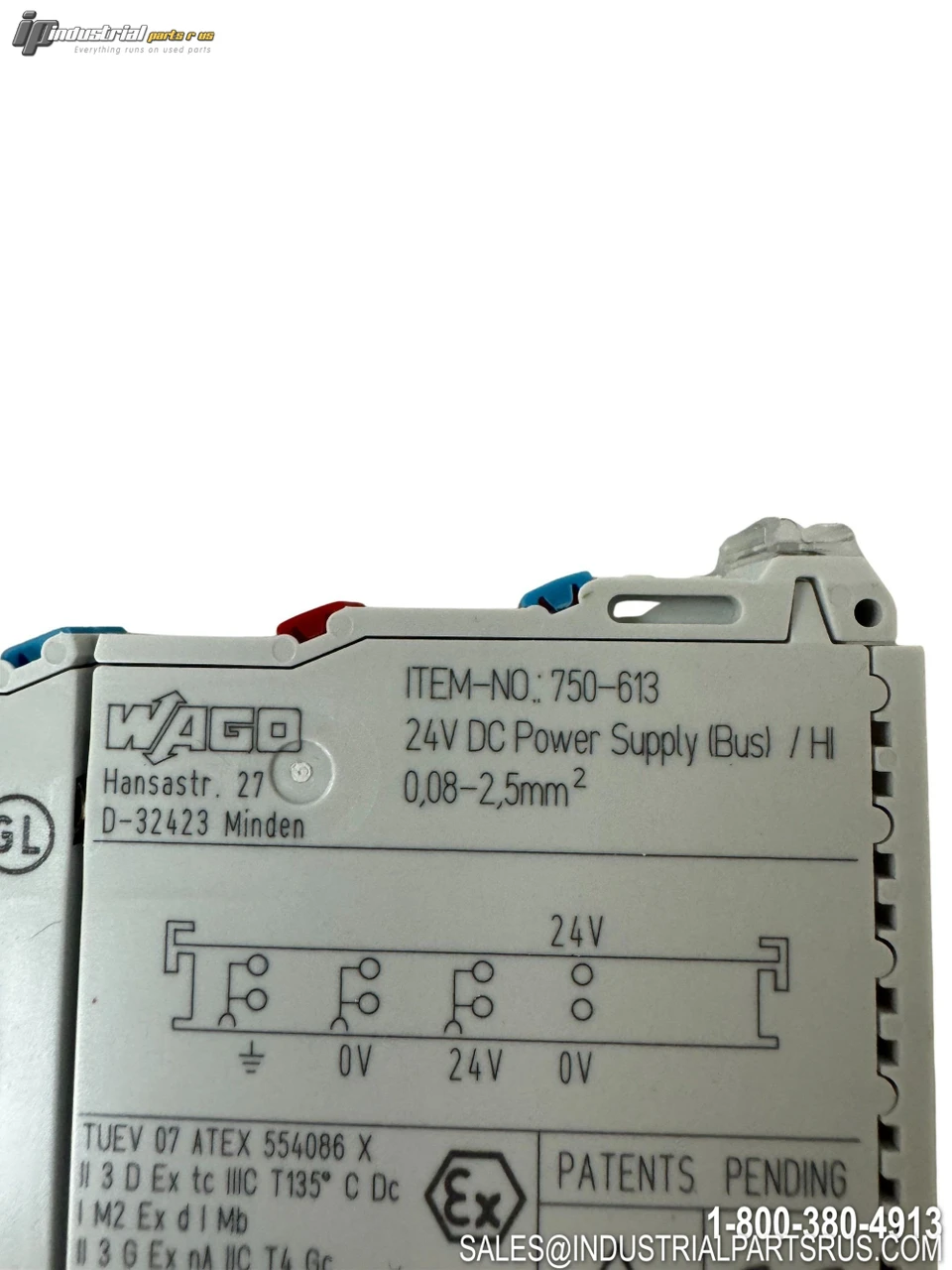

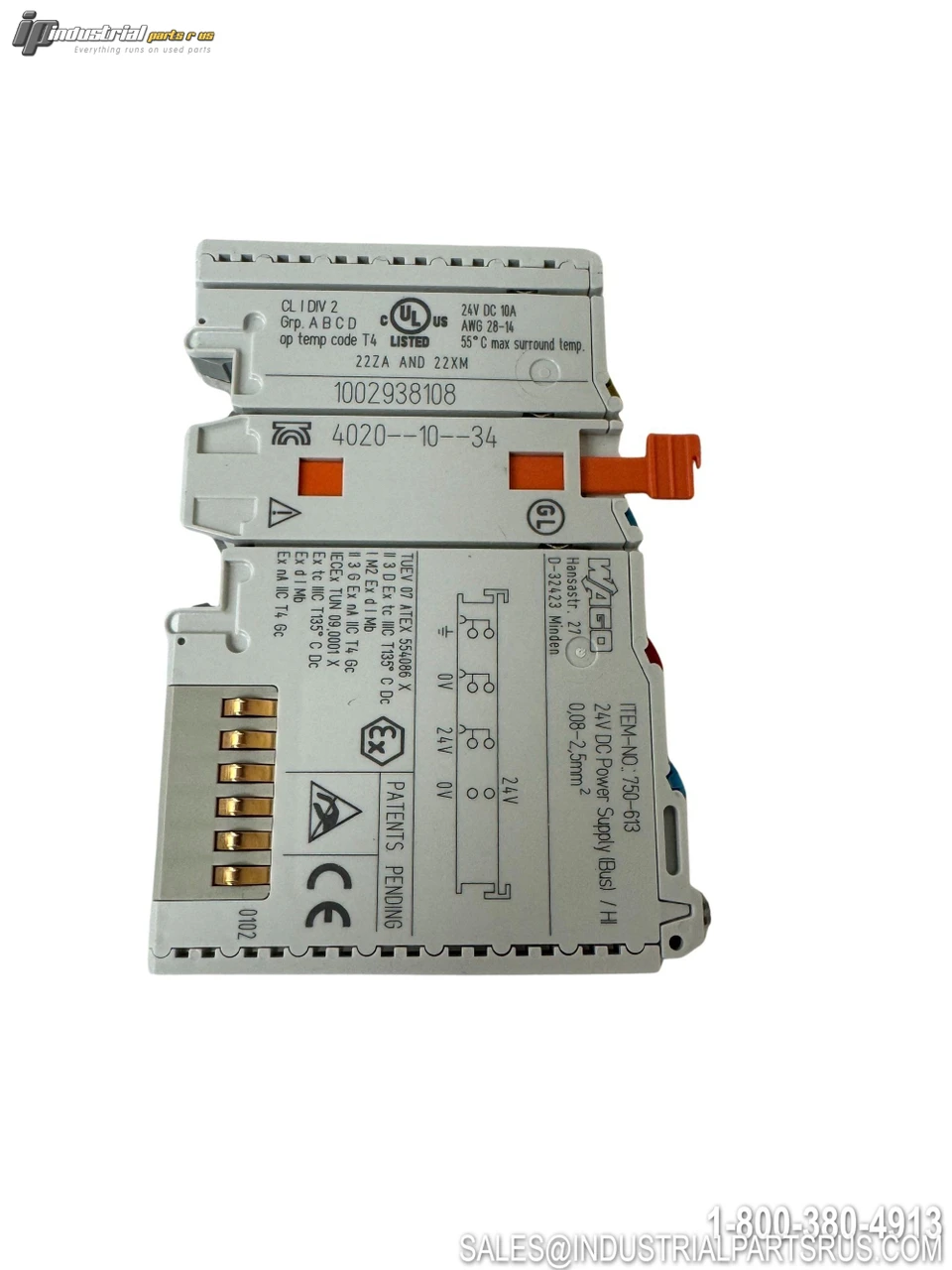

The Wago 750-613 is an internal system power supply module designed for the WAGO I/O System 750/753 series fieldbus nodes. It increases the internal system current supply capacity by 2A (48W max output), enabling high-current configurations where total module consumption exceeds the standard supply capability. The module accepts 24 VDC input via CAGE CLAMP spring connections, delivers 90% typical efficiency, and also passes field-side power to adjoining modules through integrated power jumper contacts.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Wago |
| Model / Part Number | 750-613 |
| Product Family | WAGO I/O System 750/753 |
| Description | System Power Supply; 24 VDC |
| Supply Voltage (Nominal) | 24 VDC |
| Supply Voltage Range | 18 – 31.2 VDC (−25% / +30%) |
| Input Current Max | 500 mA |
| Total System Supply Current Output | 2000 mA (2 A) |
| Field Supply Voltage | 24 VDC (−25% / +30%); via power jumper contacts |
| Power Supply Efficiency (Typical) | 90% at nominal load (24 V) |
| Signal Type | Voltage, DC 24 V |
| Termination Type | CAGE CLAMP® Spring Connection |
| Mounting Type | DIN-35 Rail (35 × 7.5 mm) |
| Module Width | 12 mm |
| Module Height | 64 mm |
| Module Length (Depth) | 100 mm |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to +55°C |
| Housing Material | Polycarbonate / Polyamide |
| Color | Light Gray |
| Jumper Contacts | 3 Power Jumper Contacts |
| Mounting Position | Vertical |
| RoHS Compliant | Yes |
| Approvals | UL 508 (E175199), CE, ATEX, IECEx, DNV, ABS, BV, LR, KR, RINA, EAC, KC |
| Manufacturer Part Number (MFG) | 51180888 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Manufacturer Wago
Enclosure Type IP20
Part Number 750-613
Controller Platform WAGO I/O System 750/753
Shelf K-4
Model 750-613
MPN 750-613
Type PLC Power Supply
