Product Description

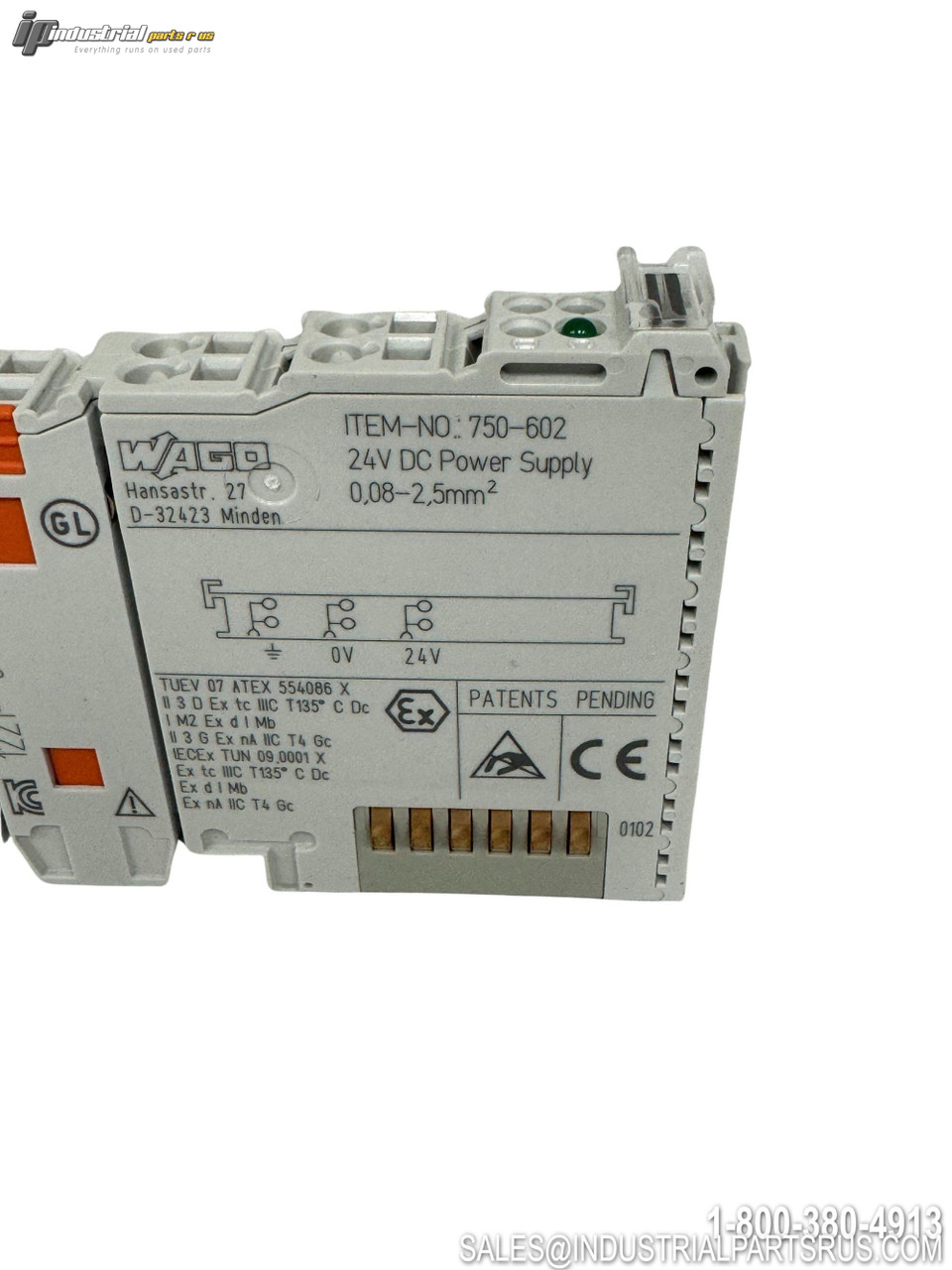

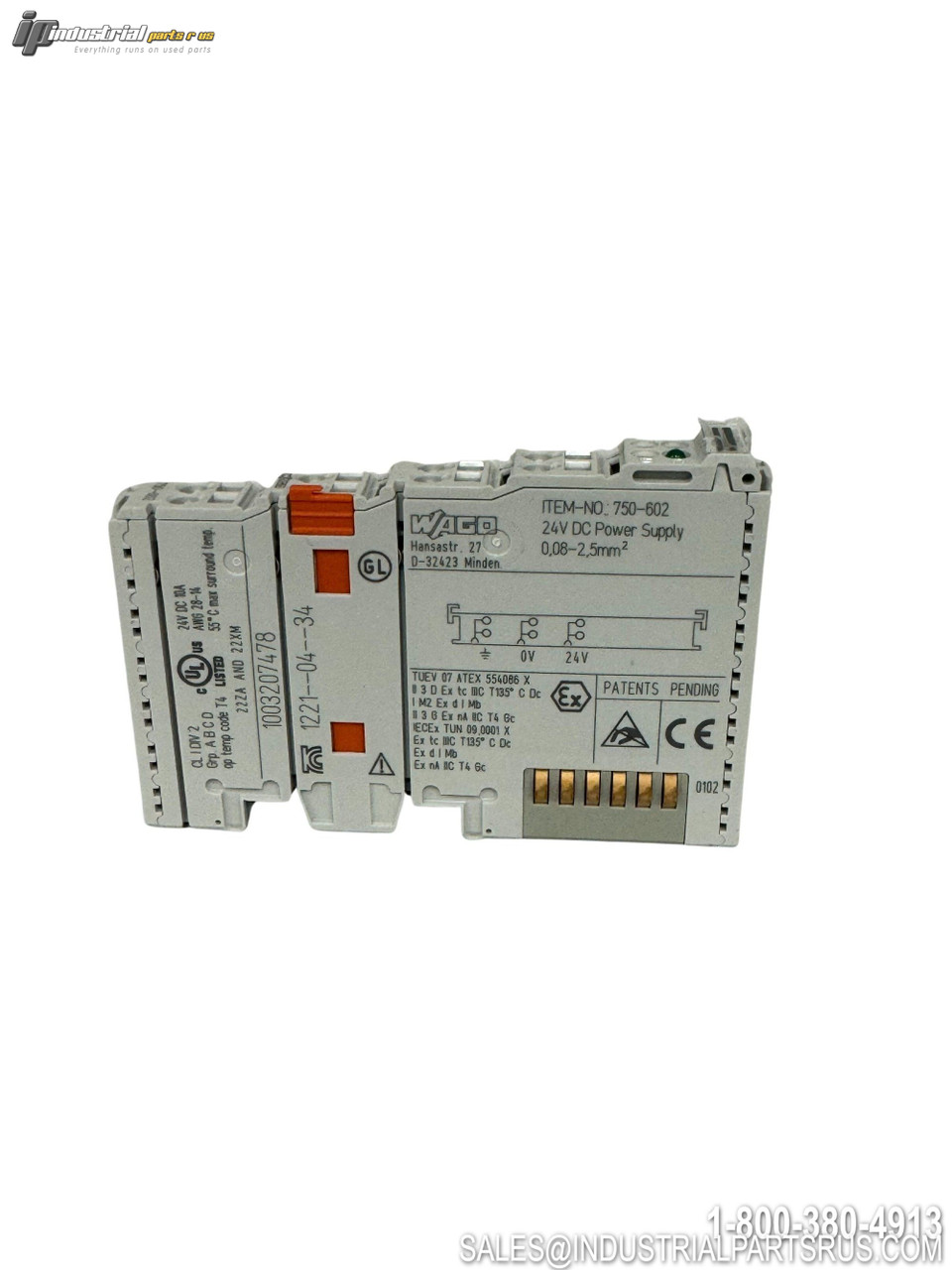

The Wago 750-602 is a passive supply module designed for the WAGO-I/O-SYSTEM 750 series. This module provides galvanically isolated 24VDC field-side power through power jumper contacts, enabling supply distribution to subsequent I/O modules in the system.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Wago |
| Model/Part Number | 750-602 |
| Product Type | Power Supply Module |
| Series | 750 |
| Output Voltage | 24VDC |
| Supply Voltage Range | 18-31.2VDC |
| Maximum Current | 10A DC |
| Module Width | 12mm |
| Weight | 44.5g |
| Connection Type | CAGE CLAMP Spring Connections |
| Wire Cross Section | 0.08-2.5 mm² / AWG 28-14 |
| Strip Length | 8-9mm / 9-10mm |
| Operating Temperature | 0°C to +55°C |
| Protection Rating | IP20 |
| Mounting Type | DIN-35 Rail |
| Module Type | Passive Supply Module |
| Isolation | Galvanically Isolated |
| EMC Compliance | EN 61000-6-2 / EN 61000-6-4 |
| Approvals | UL 508, DNV, Marine Applications |
| System Compatibility | WAGO-I/O-SYSTEM 750 Series |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
