Product Description
2020 Fanuc ArcMate 120iD Robotic Aluminum Welding Cell — 877 Running Hours

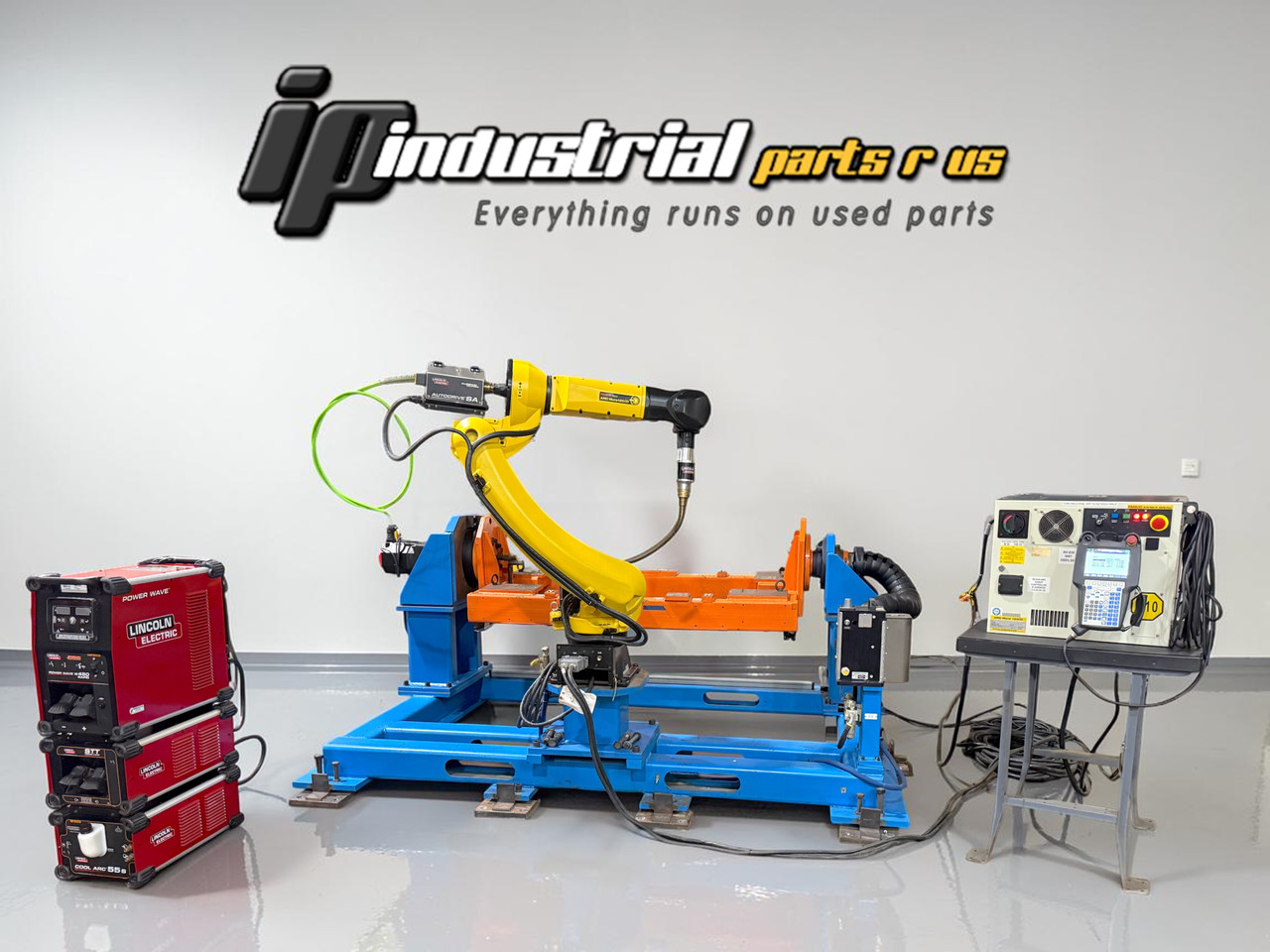

This is a complete, turnkey robotic aluminum welding cell built around a 2020 Fanuc ArcMate 120iD with the R-30iB Plus controller. The system has only 877.5 actual program-execution running hours. This system saw very limited volume before being decommissioned, leaving you with a turnkey aluminum welding cell at a fraction of new-build pricing and lead time.
The cell has been received at our Bardstown, KY facility, powered up, and jogged on our floor. All major components are present, accounted for, and operational.
Honest Hours Disclosure

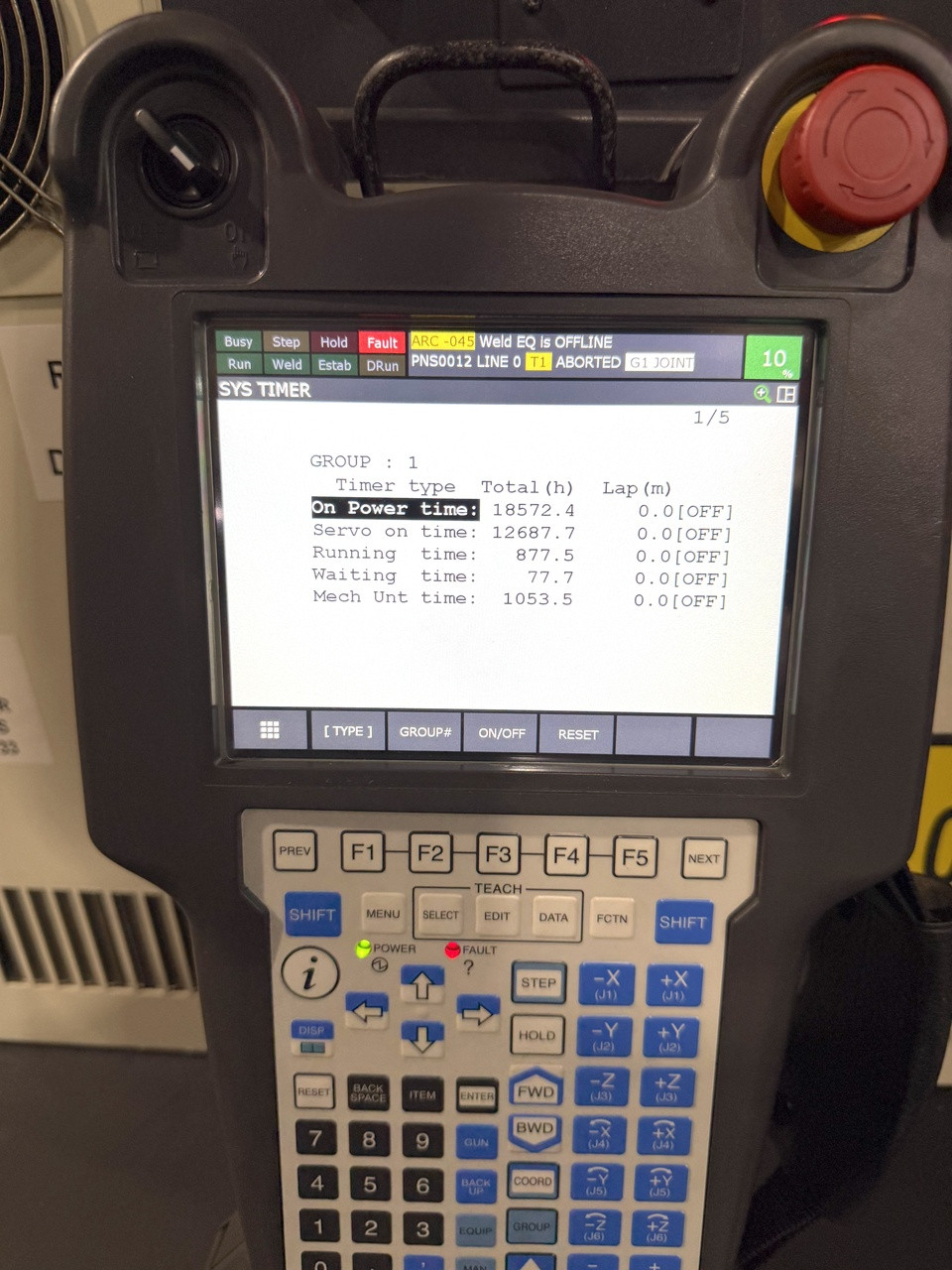

Pulled directly from the controller SYS TIMER (photo included in listing):
- Running time (program execution / motion / welding): 877.5 hours — this is the wear-relevant figure
- Servo on time: 12,687.7 hours (servos energized / armed-ready state)
- Power-on time: 18,572.4 hours (controller power on the bus)
- Mechanical unit time: 1,053.5 hours
Duty cycle works out to roughly 7%, consistent with lots of setup-and-wait time and very little actual weld production. For reference, a Fanuc arc welding robot is rated for tens of thousands of motion hours before major service, making this functionally a low-wear unit.
Why This Cell Stands Out
- Genuine low-hour history — 877.5 running hours in a robot built for tens of thousands
- Professionally integrated cell — clean wiring, properly configured Fanuc external-axis positioner, full ArcLink integration with the Lincoln welder
- True aluminum-dedicated welding package — Lincoln Autodrive SA "Aluminum Solutions" push-pull feeder is the right tool for the job, not a steel feeder retrofitted for aluminum
- Power Wave R450 RAPID (brand new) — upgraded high-speed variant, not the standard R450
- STT process module included — Surface Tension Transfer for thin aluminum and root pass control
- Servo headstock / tailstock positioner integrated as a Fanuc external axis through the R-30iB Plus
- Skid-mounted — single-pick relocation, no field re-integration required
Robot & Control System

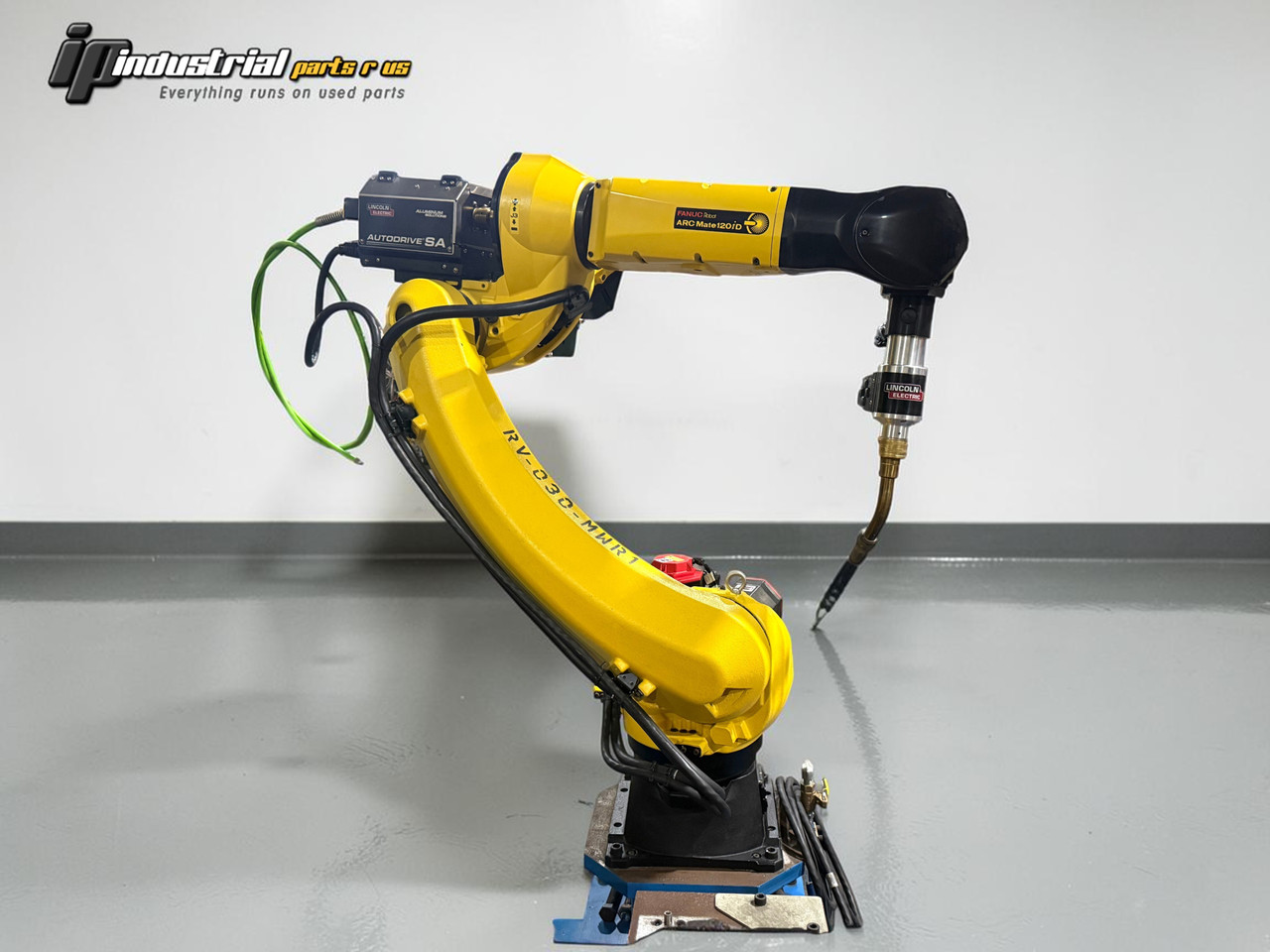

- Robot: Fanuc ArcMate 120iD, 6-axis articulated arc welding robot
- Year of Manufacture: 2020
- Running Hours: 877.5 (see hours disclosure above)
- Payload: 25 kg
- Reach: 1,831 mm (72.1")
- Repeatability: ±0.02 mm
- Robot Mass: 250 kg
- Controller: Fanuc R-30iB Plus
- Teach Pendant: Fanuc iPendant — included
- Cabling: Complete robot, control, and welding lead set — included
- Software: ArcTool
- Voltage: 480V, 3-Phase (transformer tap verified 8-27-2020)
- Communication: ArcLink to Lincoln Power Wave, Ethernet ready
Welding Package (Lincoln Electric)

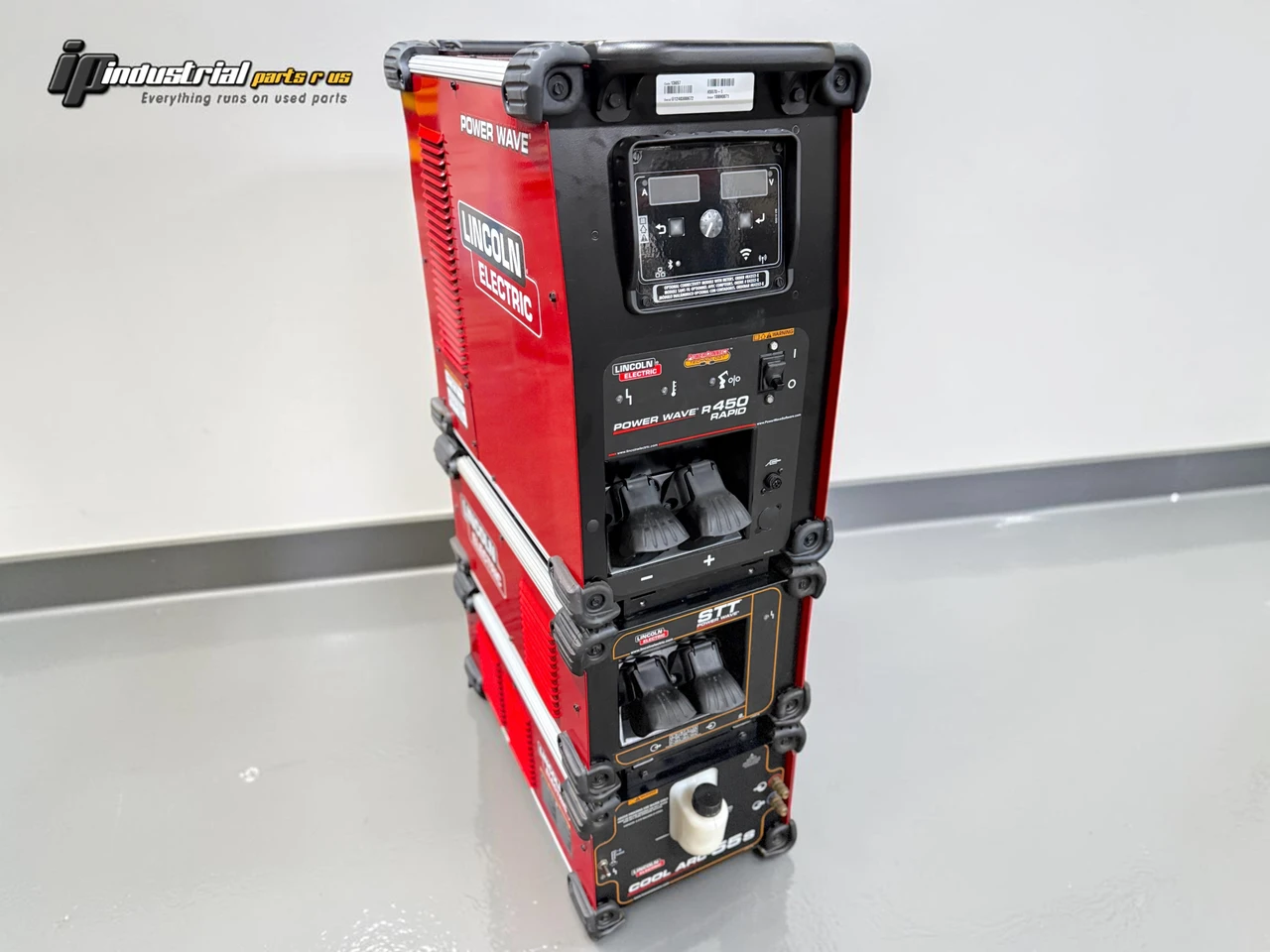

- Power Source: Lincoln Power Wave R450 RAPID — BRAND NEW
- STT Module: Lincoln Power Wave STT — used, fully functional
- Cooling: Lincoln Cool Arc 55S liquid torch cooler — used, fully functional

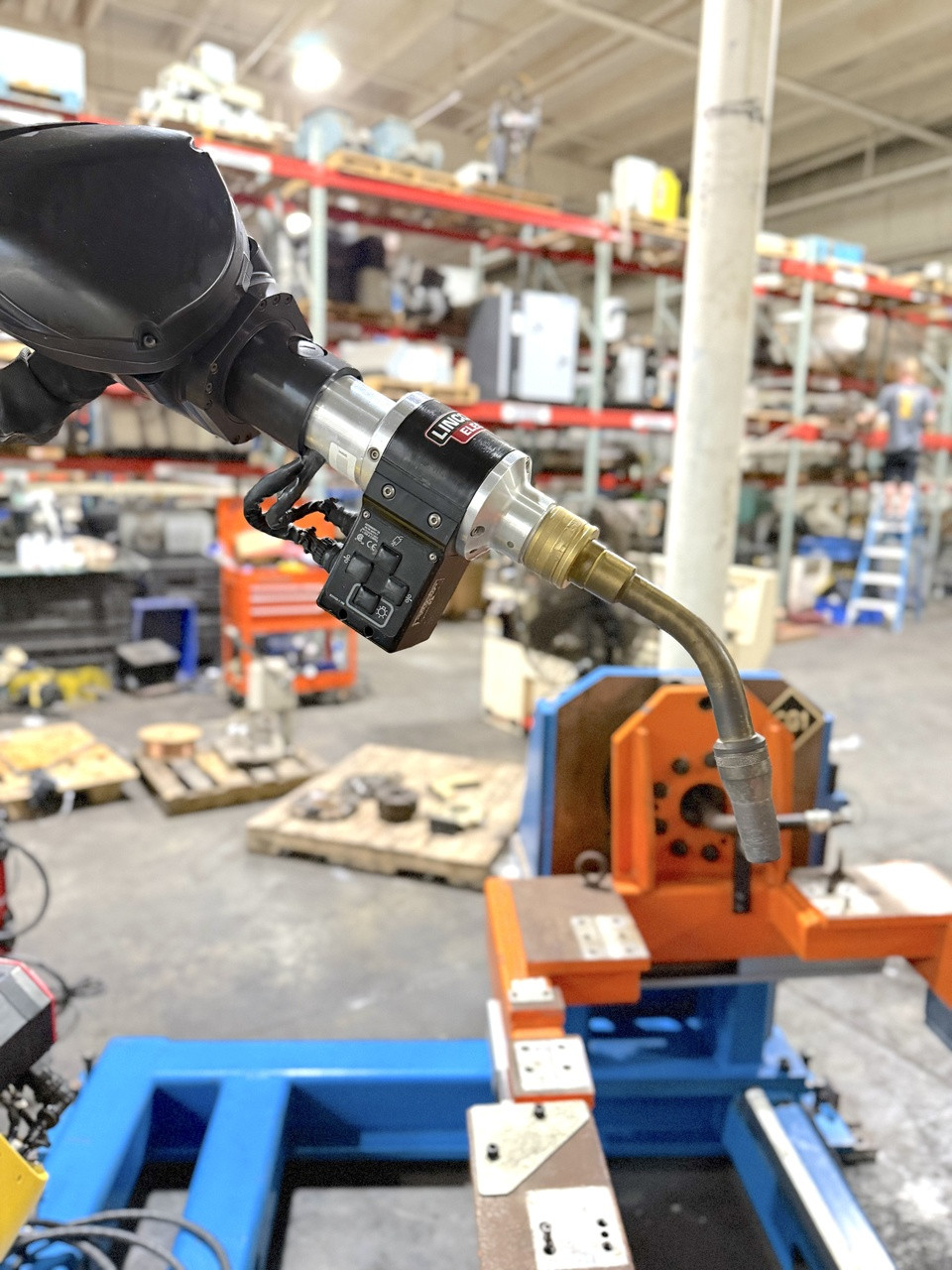

- Wire Feeder: Lincoln Autodrive SA "Aluminum Solutions" with pull-feeder torch assembly — purpose-built for aluminum MIG
- Torch Reamer: TorchWizard EL-NCS-20 nozzle cleaner / torch maintenance station — skid-mounted

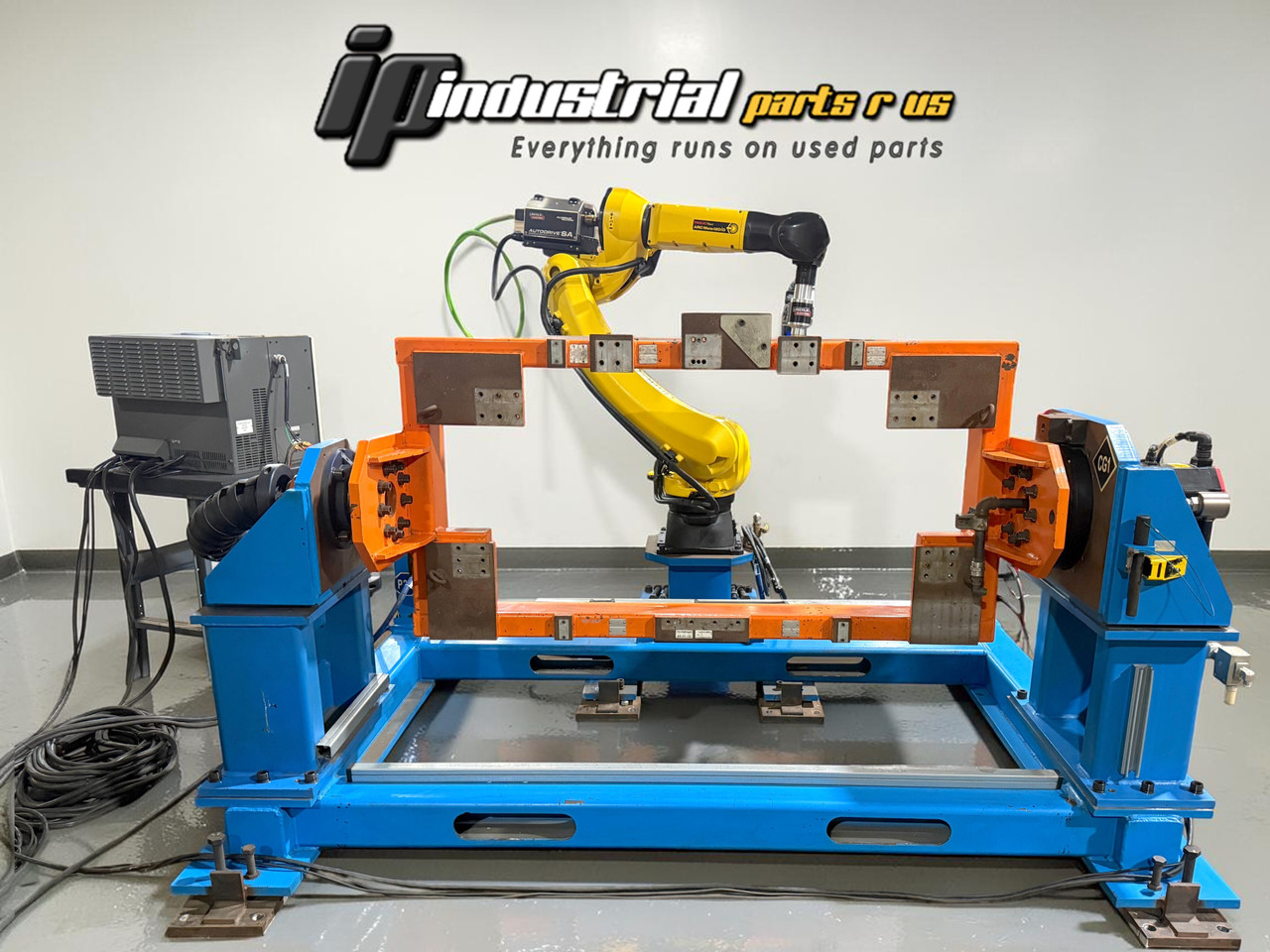

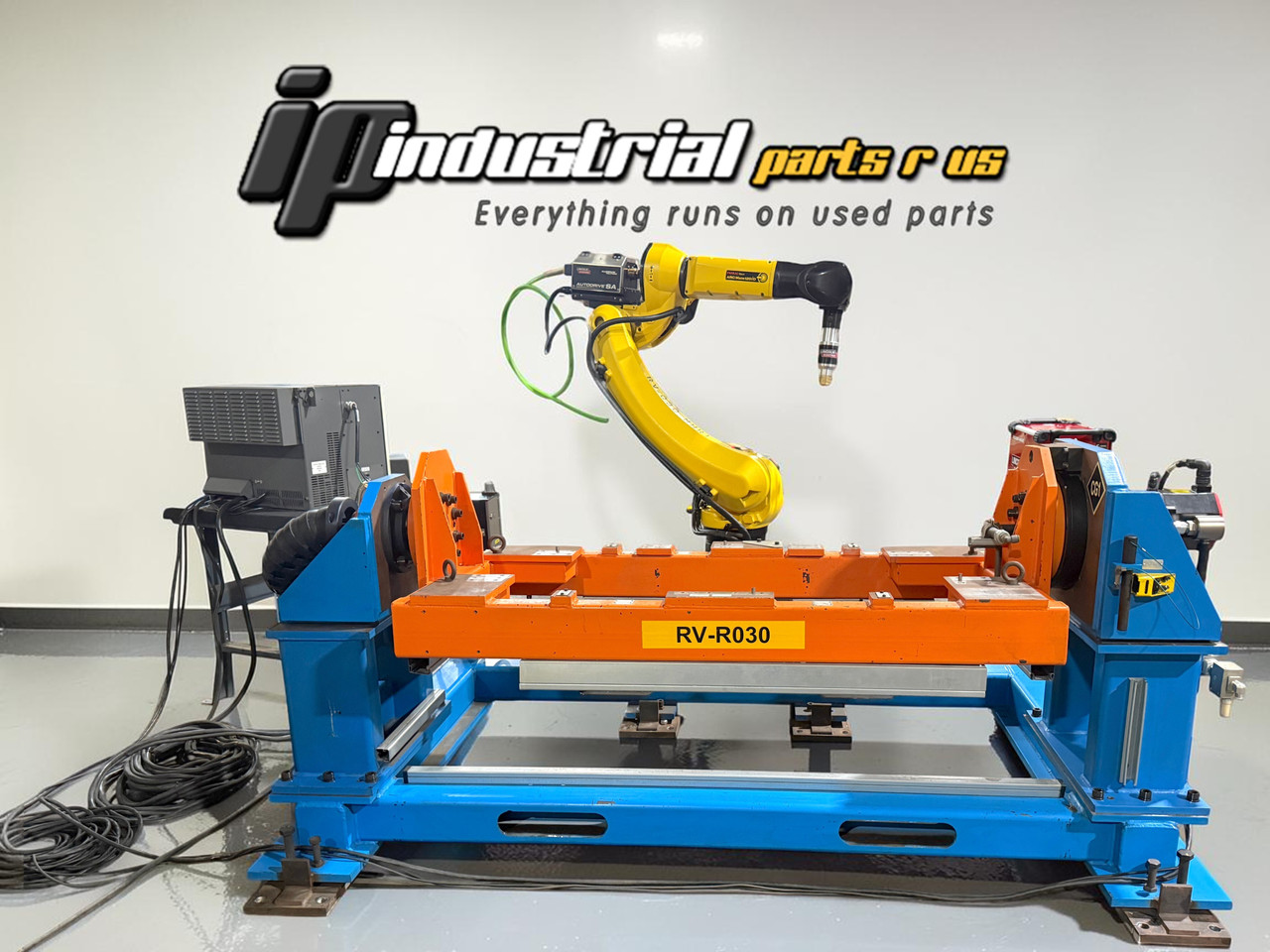

Headstock / Tailstock Positioner
- Payload Capacity: 500 kg (1,100 lb)
- Headstock Drive: Fanuc A06B-0243-B705 AC servo motor — integrated as a Fanuc external axis
- Distance Between Centers (headstock to tailstock): 71"
- Existing Fixture Table: 62-3/4" between centers × 37-1/2" deep — included as installed
- Skid Footprint: 106" wide × 80" deep
What's Included
- Fanuc ArcMate 120iD robot arm
- Fanuc R-30iB Plus controller
- Fanuc iPendant teach pendant
- Complete robot, control, and welding cable set
- NEW Lincoln Power Wave R450 Rapid welding power source
- Lincoln Power Wave STT module
- Lincoln Cool Arc 55S torch cooler
- Lincoln Autodrive SA Aluminum Solutions push-pull wire feeder
- Aluminum-rated robotic torch assembly
- TorchWizard EL-NCS-20 torch cleaner / nozzle reamer
- 500 kg servo-driven headstock/tailstock positioner
- Existing tooling fixture table
- Heavy-duty common skid base
Add-On: Robot Safety Fencing & Light Curtains
We maintain a solid stock of welded-wire robotic safety fencing with leg bases and light curtain assemblies at our Bardstown, KY facility. If you need to enclose this cell to ANSI/RIA R15.06 standards, we can quote a complete perimeter guarding package shipped with the system. Save the lead time and the freight on a second shipment.
Application Notes
Ideally suited for:
- Aluminum frame, chassis, and bracket fabrication
- Marine aluminum fabrication (boat hulls, tanks, frames)
- Aerospace aluminum components
- Aluminum trailer and truck-body components
- Any high-mix / medium-volume aluminum MIG application requiring a rotating positioner
Inspection & Buying Terms
Available for in-person inspection and live power-up demonstration at our facility in Bardstown, Kentucky. Buyer is responsible for freight — we load free of charge. International Buyers are
welcome.
We carry many brands from Fanuc, ABB, Yaskawa, or Motoman. Volume discount available if purchased with a perimeter fencing package.
