Product Description

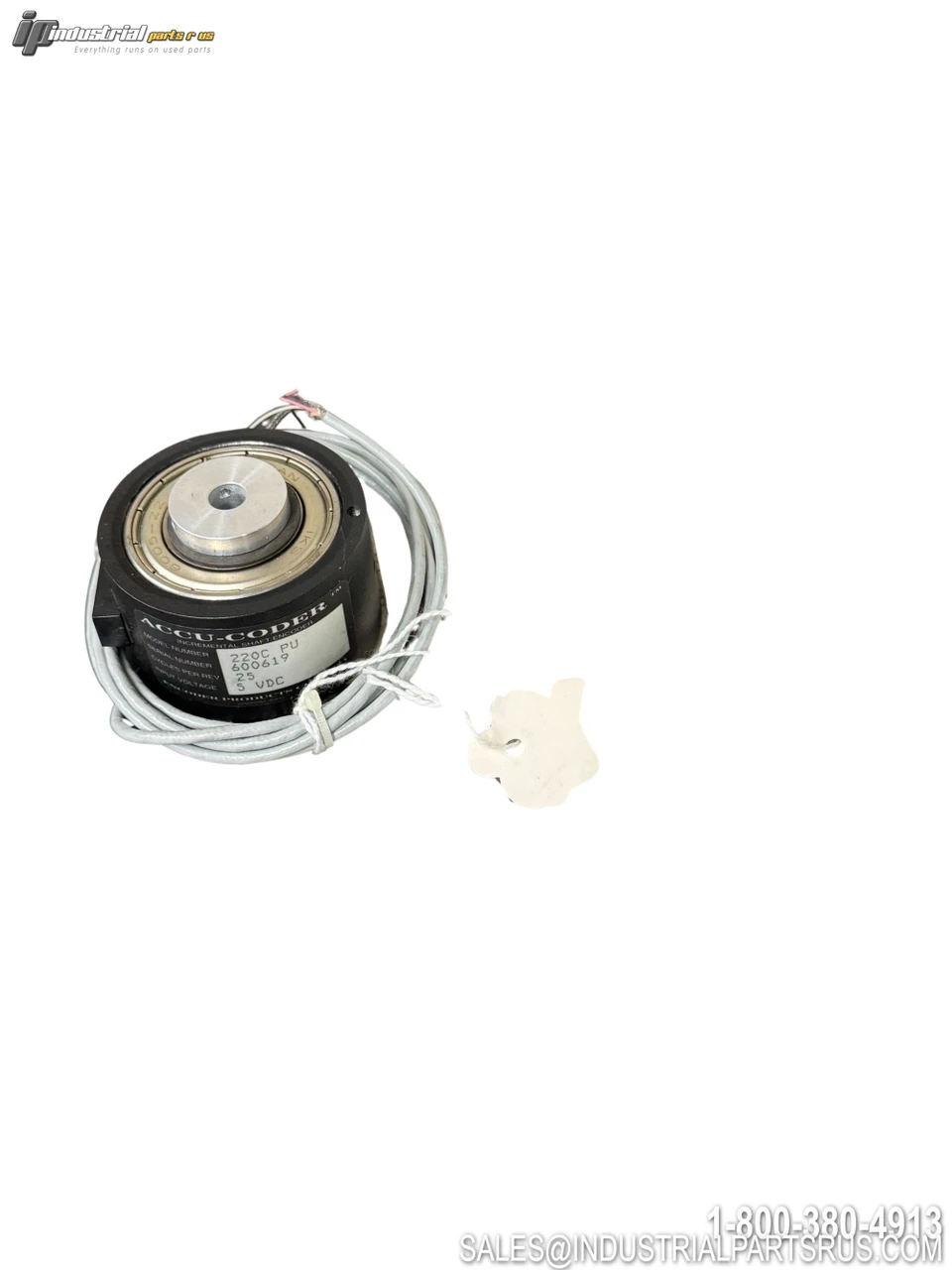

The ACCU-Coder Model 220C PU is an incremental shaft encoder manufactured by Encoder Products Company (EPC) under the Accu-Coder® brand. It operates on a 15VDC supply and provides 60 cycles per revolution (CPR) of incremental position feedback via a pull-up resistor (PU) output type. This optical rotary encoder features a shielded cable termination and NPN open-collector output with internal pull-up resistor. This model has been discontinued by the manufacturer and is sought as a replacement or spare part for legacy industrial motion control, positioning, and speed-sensing applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | ACCU-Coder |
| Model / Part Number | 220C PU |
| Manufacturer | Encoder Products Company (EPC) |
| Encoder Type | Incremental Shaft Encoder |
| Input Voltage | 15VDC |
| Resolution (CPR) | 60 CPR (Cycles Per Revolution) |
| Output Type | PU – Pull-Up Resistor (internal pull-up to supply voltage) |
| Pull-Up Resistor Value | Typically 1,500–2,200 Ω internal |
| Max Output Current (Sink) | 20 mA per channel |
| Output Signal | Square Wave (Incremental Quadrature A & B) |
| Rise Time | 1 µsec |
| Housing Diameter | 2.25" (57.2 mm) |
| Housing Material | Aluminum |
| Bearing Type | Sealed Ball Bearings |
| Mounting Type | Shaft Mount |
| Manufacturer Status | Discontinued by Manufacturer |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686208
Output Type NPN
Sensor Type Rotary Encoder
Full Load Amps 20 mA per channel
Manufacturer Accu-Coder
Part Number 220C PU
Shelf K-35
Model 220C PU
MPN 220C PU
Type Incremental Encoder
