Product Description

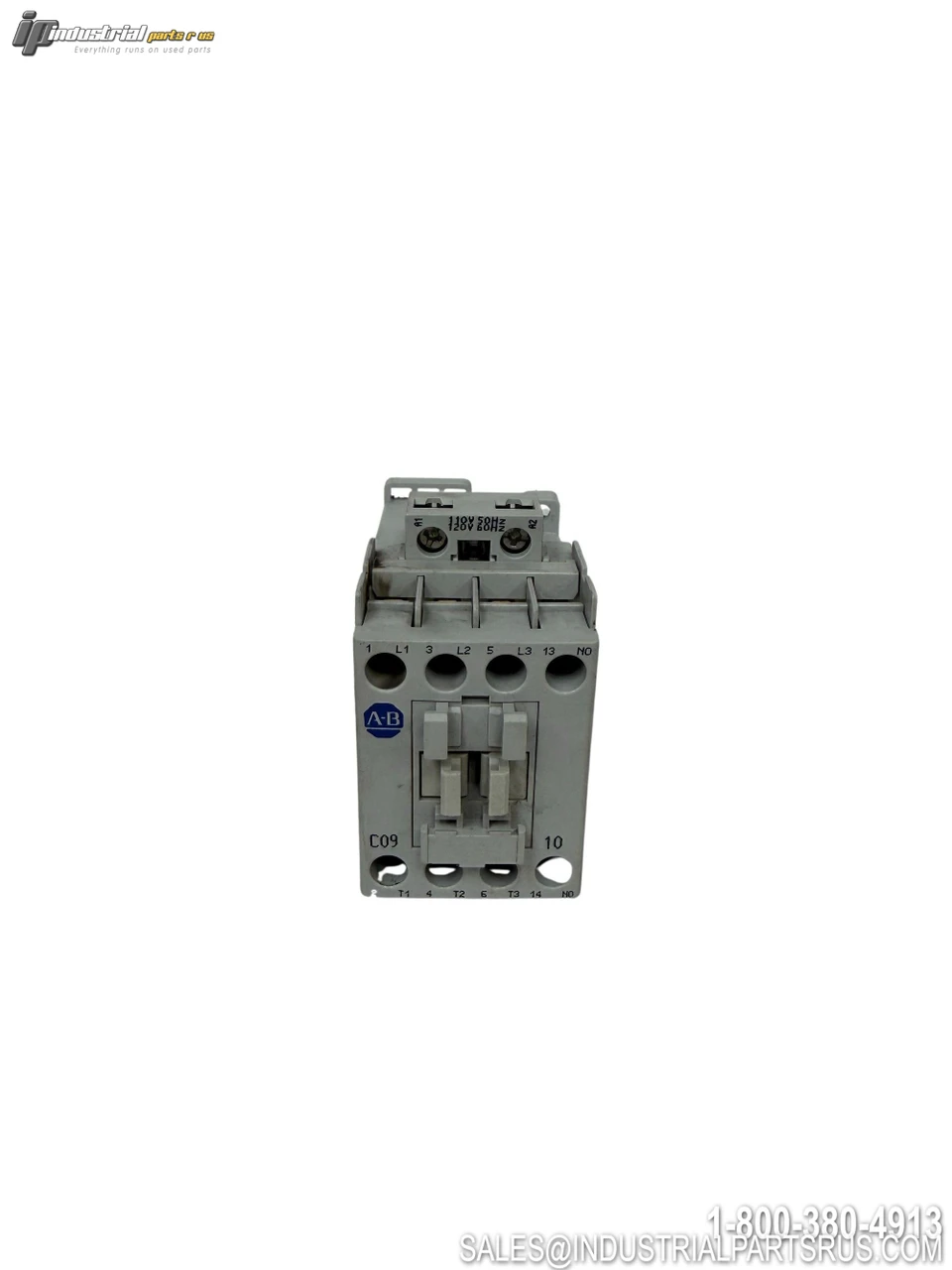

The Allen-Bradley 100-C09*10 is a Bulletin 100-C IEC contactor designed for industrial motor control and load-switching applications. This unit features three normally open (N.O.) main power poles plus one normally open (N.O.) auxiliary contact, identified by terminals 13 and 14.
The contactor is marked 100-C09*10 and is equipped with a 110V AC 50Hz / 120V AC 60Hz coil. The asterisk (*) is part of the catalog marking shown on the unit and should be retained when identifying this item.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model / Part Number | 100-C09*10 |
| Product Type | IEC Contactor |
| Bulletin | 100-C |
| Main Poles | 3 N.O. Main Power Poles |
| Auxiliary Contact | 1 N.O. (Terminals 13-14) |
| Coil Voltage | 110V AC @ 50Hz / 120V AC @ 60Hz |
| AC-1 Rating | 690V / 32A |
| AC-12 Rating | 20A |
| AC-3 Rating | 9A |
| AC-3 Power Ratings | 3 kW @ 230V; 3 kW @ 240V; 4 kW @ 400V; 4 kW @ 415V; 4 kW @ 500V; 4 kW @ 690V |
| Maximum Operational Voltage | 600 VAC |
| General Purpose Rating | 25A Enclosed / 30A Open |
| 1-Phase Motor Rating | 0.5 HP @ 115V; 1.5 HP @ 200/230V |
| 3-Phase Motor Rating | 2 HP @ 200/230V; 5 HP @ 460V; 7.5 HP @ 575V |
| Auxiliary Contact Rating | A600 / P600 |
| Rated Impulse Withstand Voltage | 8 kV |
| Standards | IEC / EN 60947-4-1 / 60947-5-1 |
| Country of Manufacture | Switzerland |
| Manufacturer | Allen-Bradley |
Note: This unit is marked 100-C09*10. The coil is marked 110V 50Hz / 120V 60Hz. Please review all photos for the exact configuration, markings, and condition of the item being sold.
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Allen-Bradley
Enclosure Type IP2X
Part Number 100-C09*10
Shelf C-15 Tub 1
Model 100-C09*10
MPN 100-C09*10
Type Contactor
