Product Description

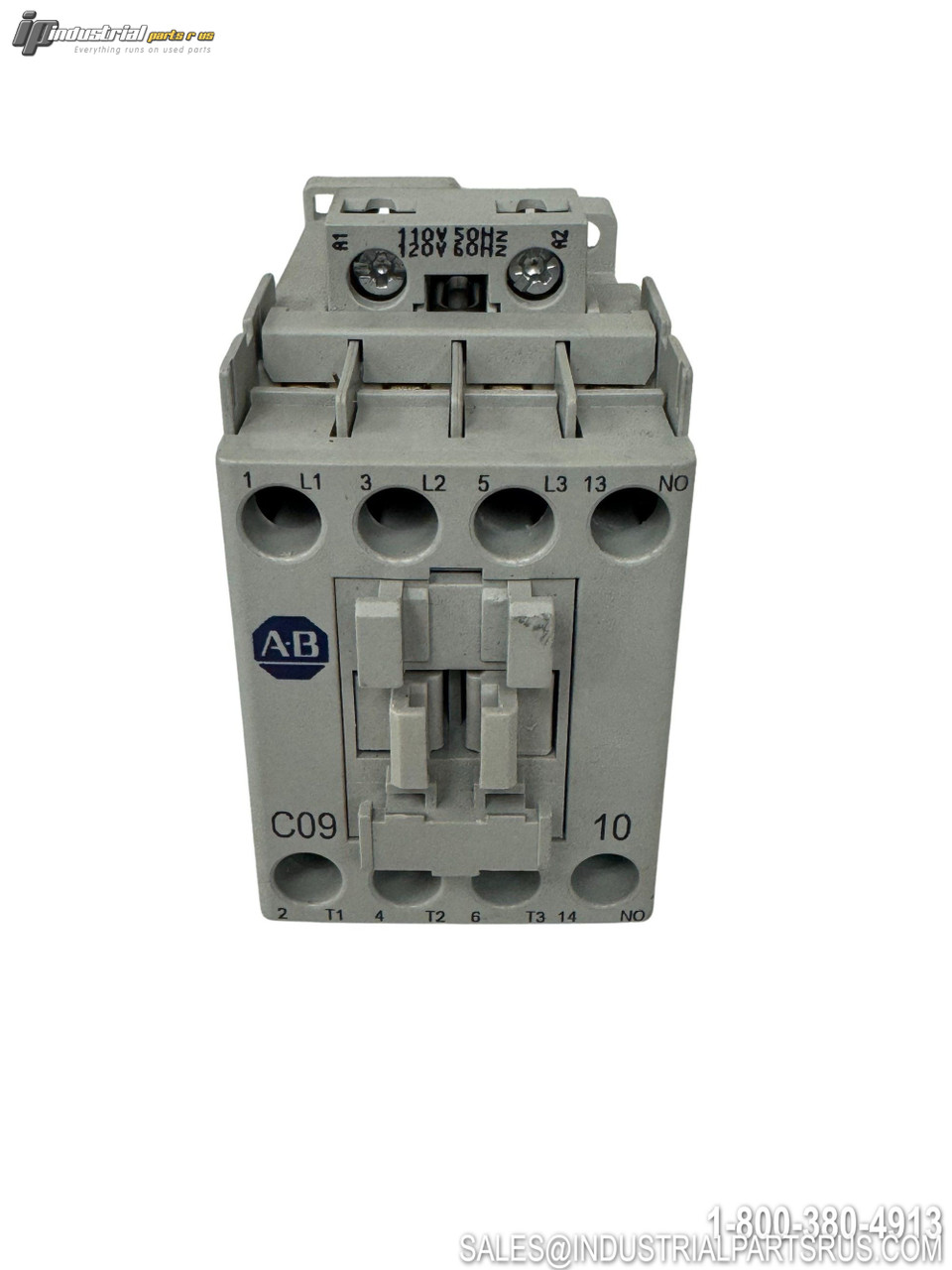

The Allen-Bradley 100-C09*10 is a 3-phase IEC rated contactor designed for electric motor control applications. This compact contactor is rated for 9 amps AC-3/32 amps AC-1, with motor ratings of 2 HP at 230V and 5 HP at 460V three-phase, and includes one normally open auxiliary contact.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model/Part Number | 100-C09*10 |
| Product Type | IEC Contactor |
| Current Rating (AC-3) | 9 Amps |
| Current Rating (AC-1) | 32 Amps |
| Voltage Rating | 600V AC |
| Poles | 3-Pole |
| HP Rating @ 230V | 2 HP |
| HP Rating @ 460V | 5 HP |
| HP Rating @ 575V | 7.5 HP |
| Auxiliary Contacts | 1 NO (Normally Open) |
| Frequency Rating | 50/60 Hz |
| Mounting Type | DIN Rail or Panel Mount |
| Terminal Type | Screw Terminals |
| Certifications | UL 508, CSA, IEC 60947-4-1, CE |
| Series | Bulletin 100-C |
| Coil Voltage | Variable (see coil code options) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style DIN Rail
Current Rating 9A AC-3 / 32A AC-1
Material Thermoplastic
Manufacturer Allen-Bradley
Enclosure Type Open Type
Part Number 100-C09*10
Series Bulletin 100-C
Shelf C-14
Model 100-C09*10
Coil Voltage Variable (24V, 120V, 240V AC/DC)
Horsepower 2 HP @ 230V, 5 HP @ 460V
MPN 100-C09*10
Type Contactor
