Product Description
The Allen-Bradley 140-MN-0250 is a 3-pole manual motor starter and motor protection device designed for manual motor control and overload/short-circuit protection. This unit features an adjustable full-load current range of 1.6–2.5A, thermal and magnetic protection, and front-mounted START and STOP/RESET controls.

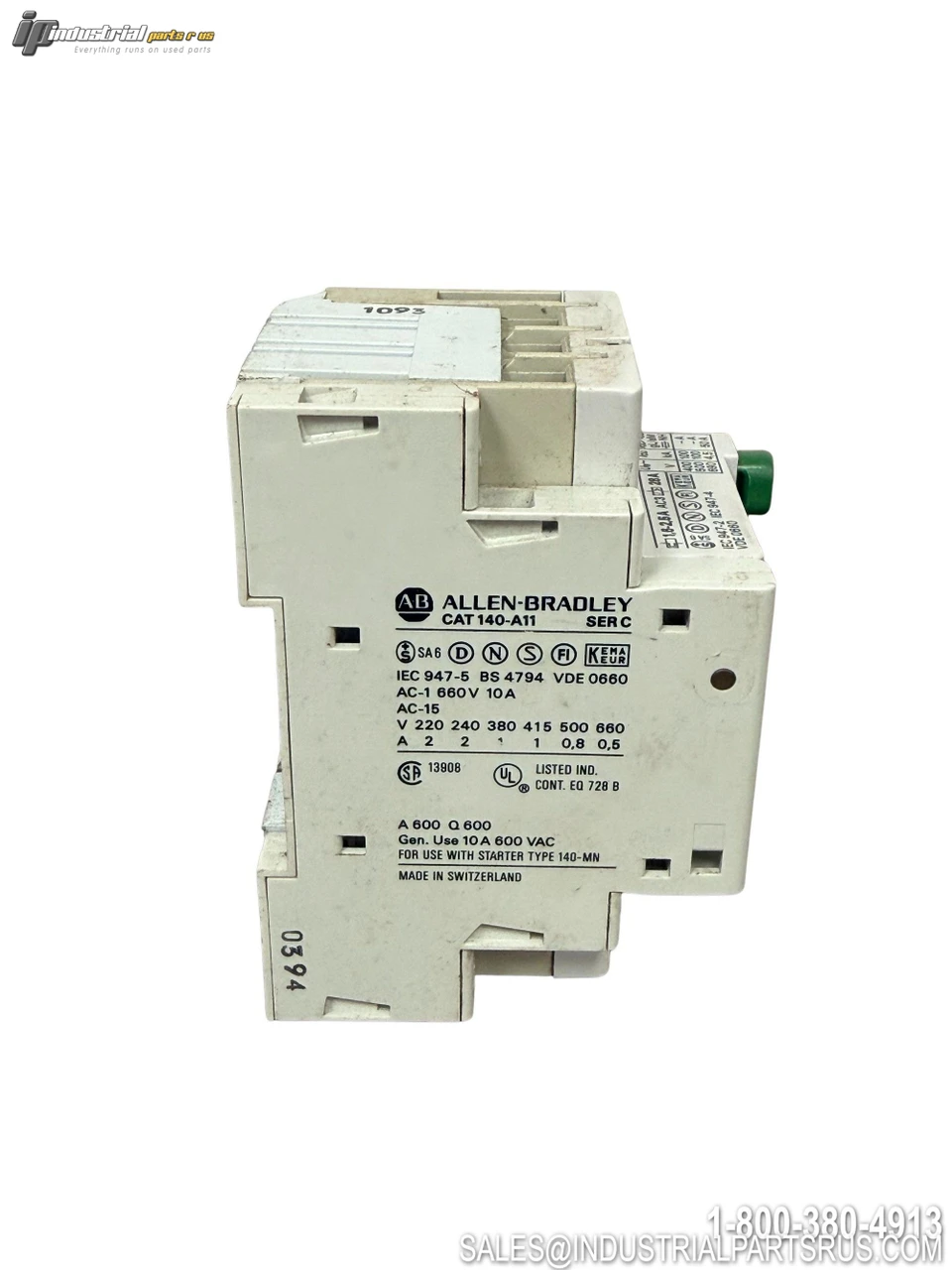

This unit also includes an Allen-Bradley 140-A11 Series C auxiliary contact, providing one normally open (NO) and one normally closed (NC) auxiliary contact.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Catalog Number | 140-MN-0250 |
| Series | C |
| Product Type | Manual Motor Starter / Motor Protector |
| Number of Poles | 3 |
| Full Load Current Adjustment | 1.6–2.5 A |
| Tripping Current | 120% FLA |
| Protection Type | Thermal / Magnetic |
| AC-3 Rating | 28 A |
| General Use Rating | 2.5 A, 600 VAC, 3-Phase |
| 3-Phase Motor Rating @ 230/240V | 0.5 HP |
| 3-Phase Motor Rating @ 460/480V | 1 HP |
| 3-Phase Motor Rating @ 575V | 1.5 HP |
| 1-Phase Motor Rating @ 230/240V | 0.16 HP |
| Short-Circuit Rating | 100 kA @ 400V; 100 kA @ 500V; 4.5 kA @ 690V |
| Wire Range | No. 16–10 AWG |
| Recommended Wire | 75°C Copper Wire |
| Terminal Torque | 20–26 lb-in |
| Controls | START / STOP-RESET / TEST |
| Auxiliary Contact | Allen-Bradley 140-A11 Series C |
| Auxiliary Contact Configuration | 1 NO + 1 NC |
| Auxiliary Contact Terminals | 13-14 NO / 21-22 NC |
| Auxiliary Contact Rating | A600 / Q600 |
| Standards | IEC 947-2, IEC 947-4, IEC 947-5 |
| Country of Manufacture | Switzerland |
Included: Allen-Bradley 140-MN-0250 Series C manual motor starter with 140-A11 Series C auxiliary contact as pictured.
