Product Description

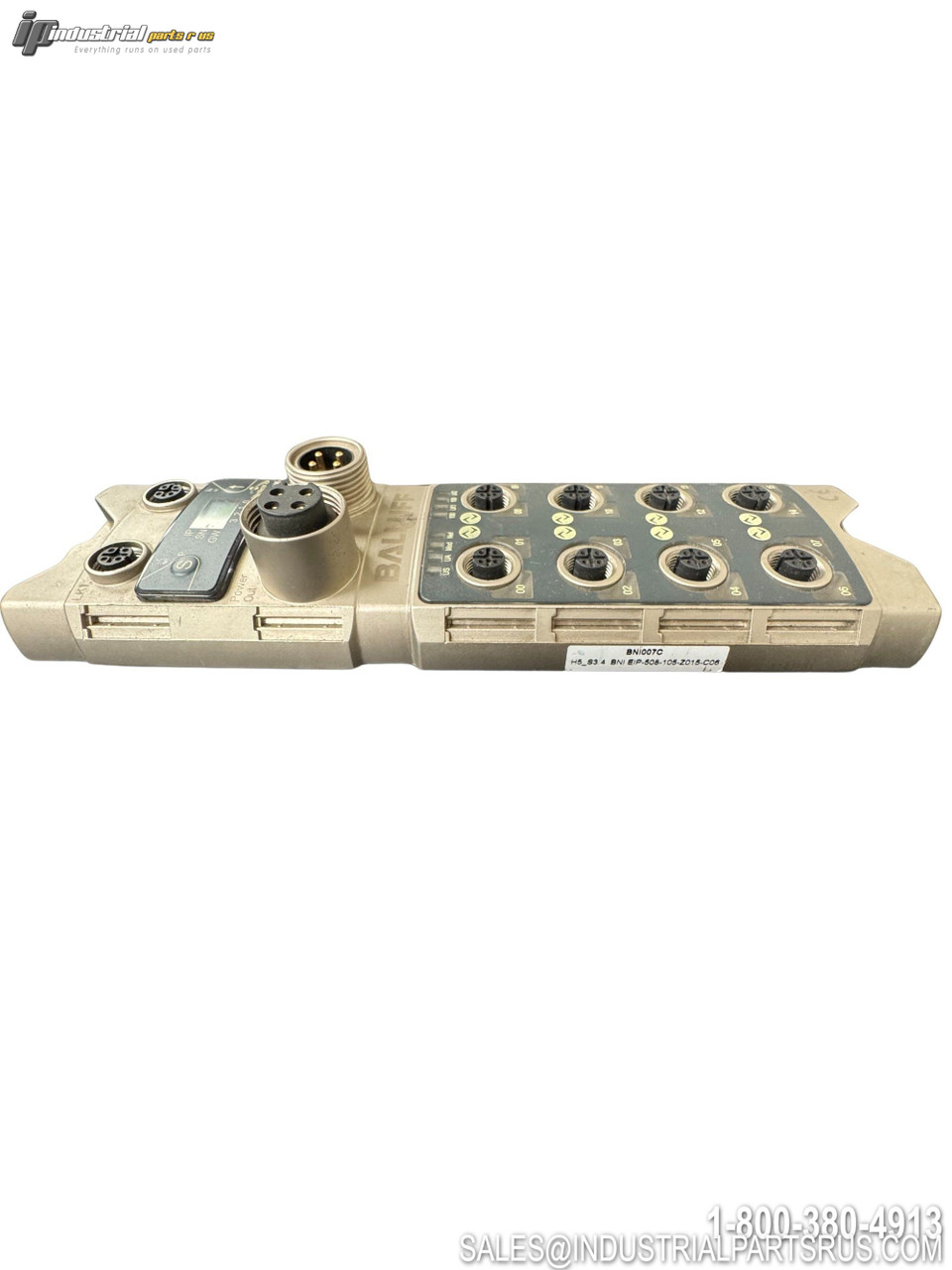

The Balluff BNI007C (type code BNI EIP-508-105-Z015-CD6) is an EtherNet/IP IO-Link Master network block from Balluff's Silver Line series of metal-housed network modules for specialized industrial applications. It serves as a decentralized remote I/O and IO-Link block, providing eight IO-Link Type A ports (M12 5-pin A-coded connectors) alongside eight configurable PNP digital inputs and eight PNP digital outputs. The module features dual EtherNet/IP communications ports (M12 D-coded) and a 7/8" power connector for daisy-chaining supply voltage in demanding factory floor environments rated to IP67.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Balluff |
| Model / Part Number | BNI007C BNI EIP-508-105-Z015-CD6 |
| Order Code (MPN) | BNI007C |
| Type Code | BNI EIP-508-105-Z015-C06 |
| Product Series | Silver Line – Network Modules in Metal Housing |
| Product Type | IO-Link Master / EtherNet/IP Network Block |
| Fieldbus / Interface | EtherNet/IP |
| IO-Link Version | 1.1 |
| Auxiliary Interfaces | 8x IO-Link |
| IO-Link Port Class | Type A |
| Operating Voltage (Ub) | 18…30.2 VDC (24 VDC nominal) |
| Output Current Max. (per port) | 2 A |
| Current Sum US (Sensor Supply) | 9.0 A |
| Current Sum UA (Actuator Supply) | 9.0 A |
| Digital Inputs | 8x PNP, Type 3 |
| Digital Outputs | 8x PNP |
| Configurable Inputs/Outputs | Yes |
| Connection – COM 1 (EtherNet/IP Port 1) | M12x1 Female, 4-pin, D-coded |
| Connection – COM 2 (EtherNet/IP Port 2) | M12x1 Female, 4-pin, D-coded |
| Connection – Supply Voltage IN | 7/8" Male, 4-pin |
| Connection – Supply Voltage OUT | 7/8" Female, 4-pin |
| I/O Connection Slots | 8x M12x1 Female, 5-pin, A-coded |
| Transfer Rate | 10…100 Mbit/s |
| IP Rating | IP67 |
| Housing Material | Zinc, Die Casting |
| Mounting Type | 2-hole screw mount |
| Dimensions (H x W x D) | 37.9 x 68 x 224 mm |
| Ambient Temperature | -5…+70 °C |
| Address Range | IPv4 |
| Display | None (no onboard display) |
| Gasket Material | FKM 75 |
| Net Weight | 1.785 lbs (approx. 810 g) |
| Approvals / Conformity | CE, CSA, UL 94, ODVA |
| ECLASS 9.1 | 27-24-26-02 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Dimensions 37.9 x 68 x 224 mm
Material FKM 75
Current 2 A per port
Manufacturer Balluff
Empty Weight 1.785 lbs
Version 1.1
Enclosure Type IP67
Part Number BNI007C BNI EIP-508-105-Z015-CD6
Controller Platform EtherNet/IP
Series Silver Line – Network Modules in Metal Housing
Shelf K-46
Input Voltage 30VDC
Model BNI007C BNI EIP-508-105-Z015-CD6
MPN BNI007C BNI EIP-508-105-Z015-CD6
Type Network Module
