Product Description

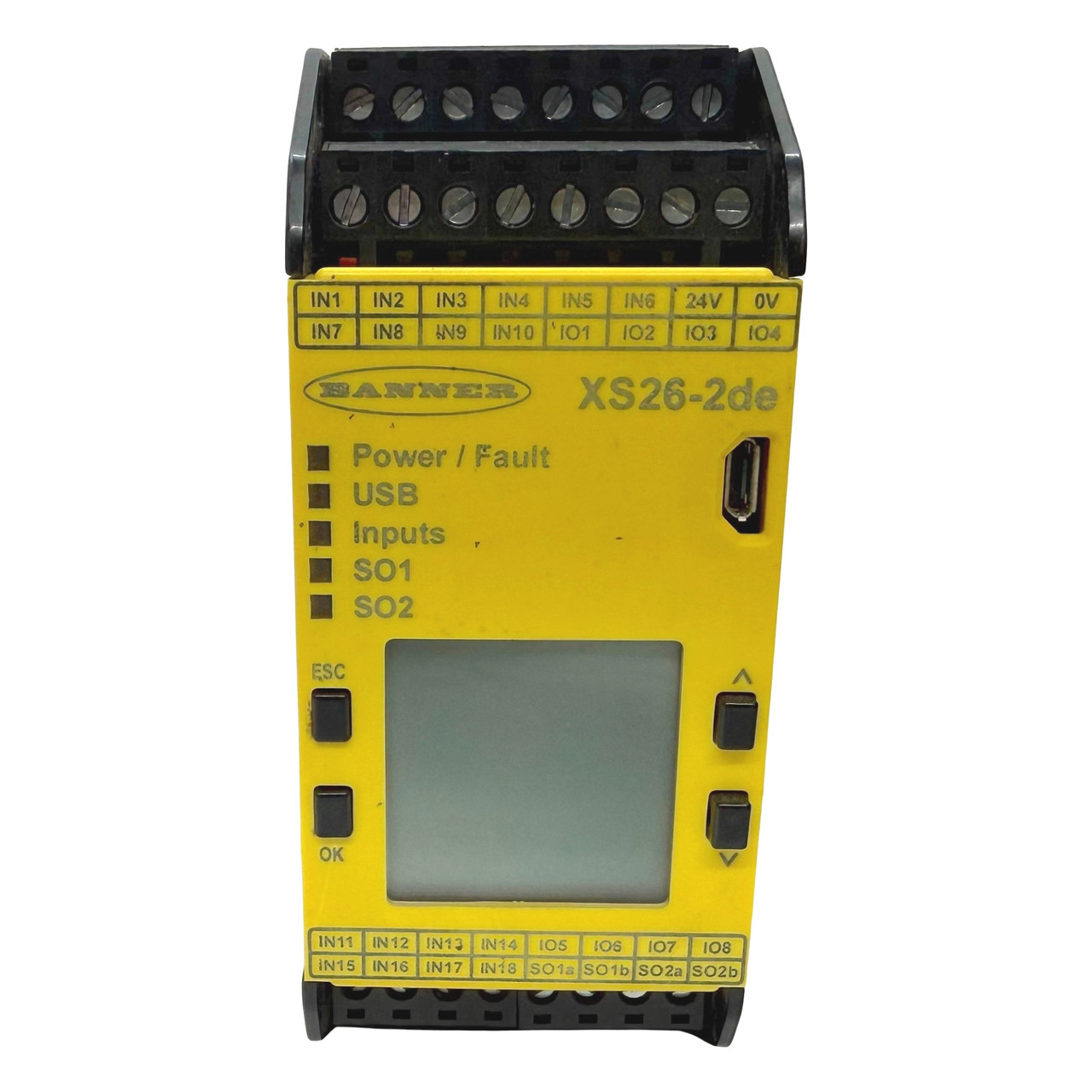

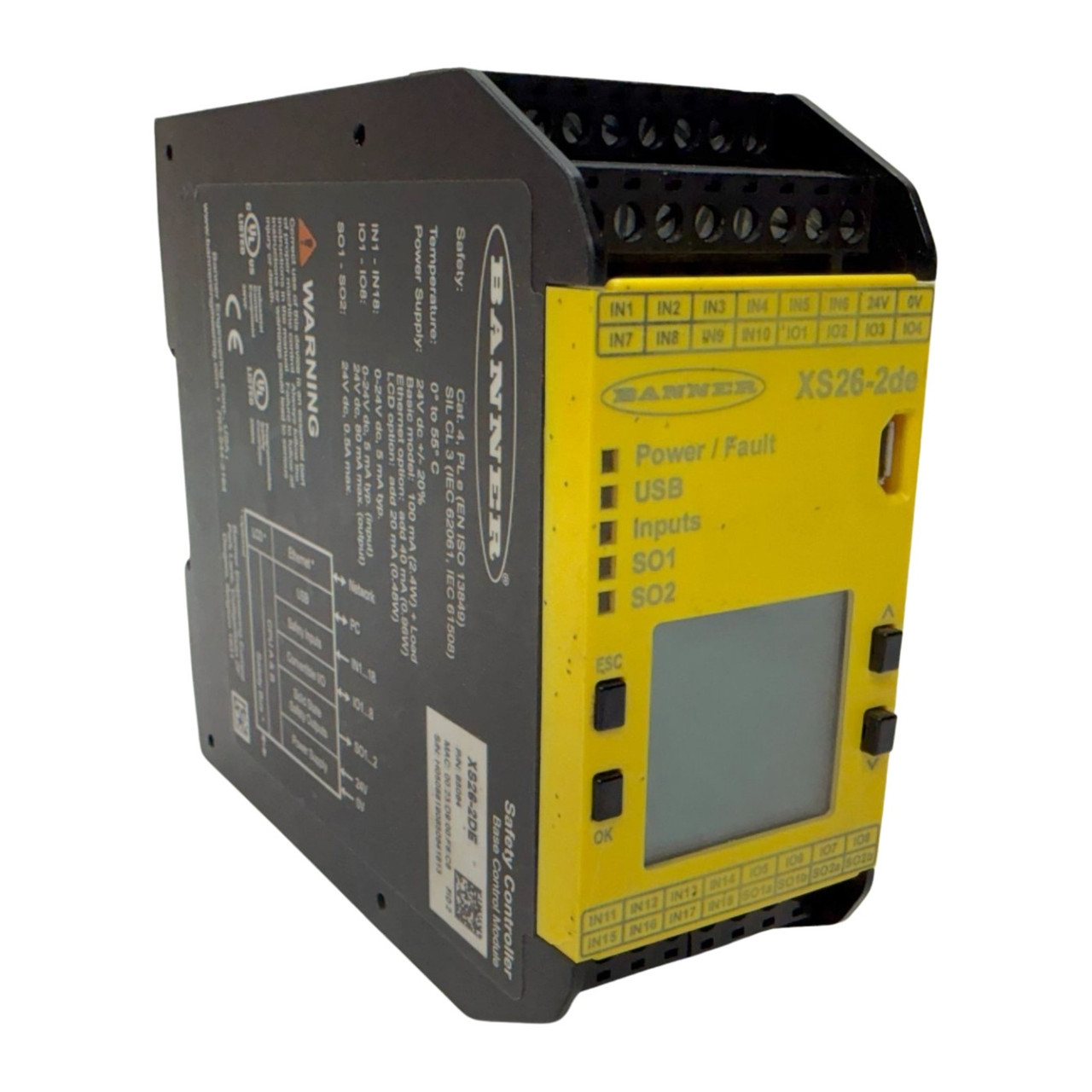

The Banner XS26-2DE is an expandable safety controller designed for comprehensive machine safeguarding applications. This controller features 26 safety inputs, 2 pairs of PNP safety outputs (0.5 A each), an onboard display, and Ethernet connectivity for advanced communication. The system monitors a variety of input devices such as e-stop buttons, rope pulls, enabling devices, protective safety stops, interlocked guards or gates, optical sensors, two-hand controls, and safety mats.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Banner |
| Model/Part Number | XS26-2DE |
| Product Type | Safety Controller |
| Series | XS26 |
| Banner Part Number | 85064 |
| Input Points | 26 |
| Safety Inputs | 26 (15-30VDC) |
| Convertible Inputs | 8 |
| Safety Outputs | 2 pairs PNP (0.5A each) |
| Output Type | OSSD (Output Signal Switching Device) |
| Supply Voltage | 24VDC |
| Current Consumption | 160mA |
| Communication Protocols | Ethernet/IP, Modbus TCP, PROFINET, PCCC |
| Connection Type | Removable Screw Terminals |
| Mounting Type | DIN Rail |
| IP Rating | IP20 |
| Operating Temperature | 0°C to +55°C |
| Safety Rating | SIL CL3, PLe, Cat4 |
| Dimensions (H x D x W) | 110 x 129 x 45 mm |
| Expansion Capability | Up to 8 I/O modules |
| Display | LCD with diagnostics |
| USB Port | Yes |
| Standards Compliance | EN ISO13849, IEC62061, IEC61508, IEC61131-2 |
We warranty all items for 30 days from date of purchase.
Other Details
Used Item. Good Condition. 30 Day Warranty!Product Videos
Custom Field
GTIN 721814240962
Manufacturer Banner
Part Number XS26-2DE
Shelf F-18 Tub 17
Model XS26-2DE
MPN XS26-2DE
Type Safety Controller Module
Mounting Style DIN Rail
Current Rating 0.16 A
Application Industrial Safety Control
