Product Description

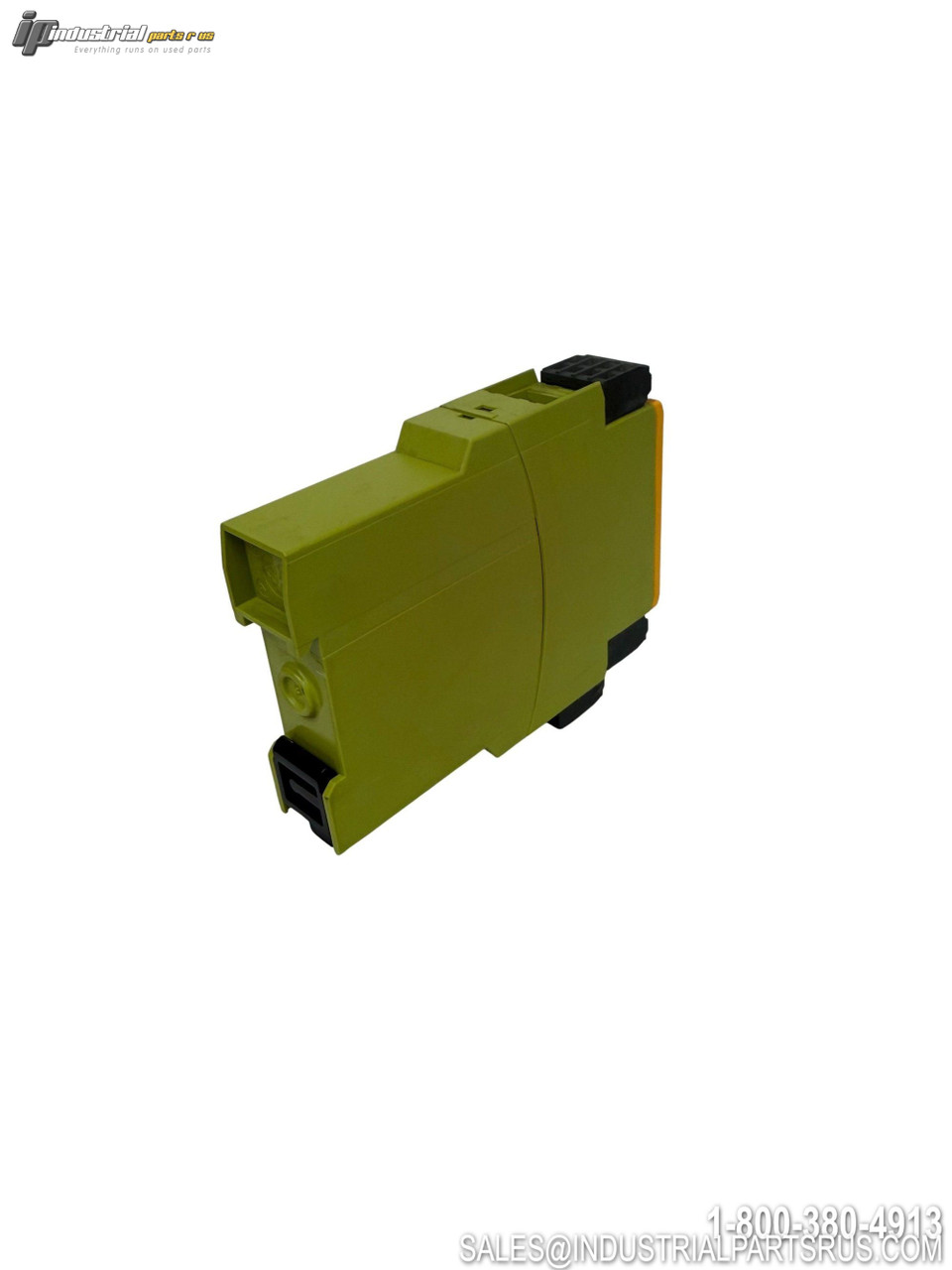

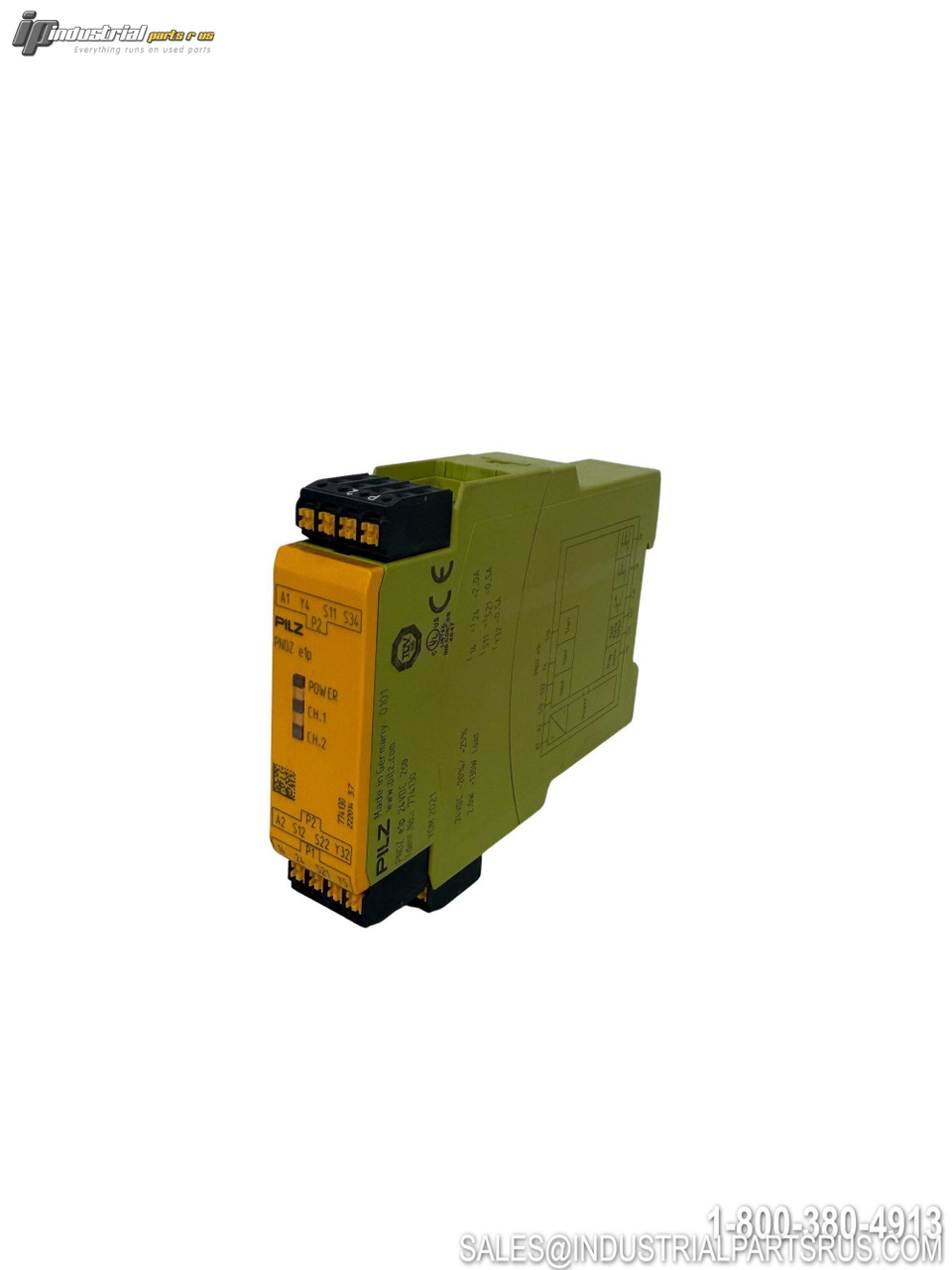

The Pilz 774130 is the PNOZ e1p 24VDC 2SO standalone safety relay from the PNOZelog product family. It provides single or dual-channel monitoring for E-STOP circuits, safety gates, limit switches, and light beam devices (Type 2 and Type 4), featuring 2 instantaneous semiconductor safety outputs and 1 auxiliary semiconductor output. The unit supports automatic and monitored start modes, continuous self-testing, and is safety-rated up to SIL 3 / PL e / Category 4 per EN ISO 13849-1 and EN 62061.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Pilz |
| Model / Part Number | 774130 |
| Product Name | PNOZ e1p 24VDC 2SO |
| Series / Family | PNOZelog |
| Product Type | Safety Relay (Standalone) |
| Supply Voltage (Nominal) | 24 VDC |
| Supply Voltage Range | 19.2 – 30 VDC |
| Coil / Operating Voltage | 24VDC |
| Input Channels | 1 or 2 channel (with/without short-circuit detection) |
| Digital Input | 1 x 24VDC / 5mA (S12, S22, Y4) |
| Test Pulse Outputs | 2 x Test pulse outputs (S11–S21) |
| Safety Outputs | 2 x Instantaneous semiconductor safety outputs (14, 24) |
| Auxiliary Output | 1 x Instantaneous semiconductor auxiliary output (Y32) |
| Output Technology | Semiconductor (SC) outputs |
| Rated Output Current | 2 A |
| Start Mode | Automatic or Monitored (manual) start |
| Safety Integrity Level | SIL 2 (1-ch, monitored start) / SIL 3 (1/2-ch, auto start) |
| Performance Level | PL d / Cat. 2 (1-ch) — PL e / Cat. 4 (1/2-ch auto start) |
| PFH Value | 1.34E-08 (1-ch, mon. start) / 3.44E-09 (1/2-ch, auto start) |
| Monitoring Functions | E-STOP, Safety Gates, Limit Switches, Light Beam Devices Type 2 & 4 |
| Mounting Type | DIN Rail |
| Connection Type | Plug-in / Detachable Screw Terminals |
| Housing Width | 22.5 mm |
| Dimensions (H x W x D) | 94 mm x 22.5 mm x 121 mm |
| Degree of Protection | IP40 |
| Ambient Operating Temperature | -10 to +55°C |
| Housing Material | PPO body / ABS front housing |
| Display / Indicators | Power LED, CH.1 LED, CH.2 LED |
| Applicable Standards | EN 60947-5-1, EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1, VDE 0116, DIN V VDE 801-1/A1 |
| Approvals / Certifications | CE, cULus, EAC, TÜV, CCC |
| Product Status | Phase-out / Discontinued |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style DIN Rail
Current Rating 2 A
Manufacturer Pilz
Enclosure Type IP40
Part Number 774130
Shelf K-70
Model 774130
Coil Voltage 24 VDC
MPN 774130
Type Safety Relay
