Product Description

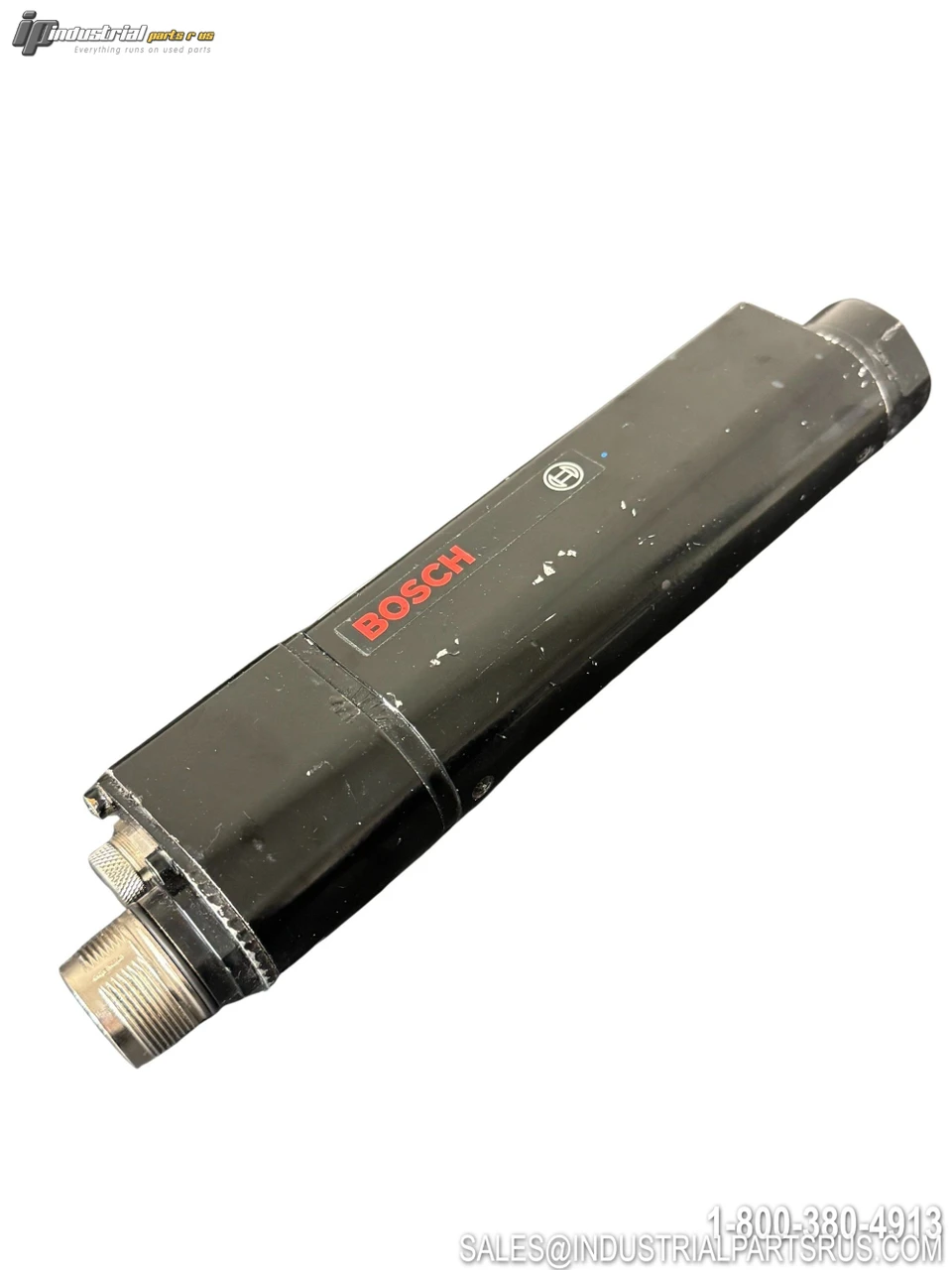

The Bosch Rexroth 0608701016 is an EC302 SZ2 brushless EC (electronically commutated) servo motor belonging to the Bosch Rexroth System 300 tightening series. Designed for high-speed precision tightening spindle applications, this motor features a 14-pin industrial connector and is rated for up to 20,000 RPM with a three-phase 0–230V supply. It is commonly deployed in automated assembly and torque tightening systems where compact size and high rotational speed are critical requirements.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Bosch Rexroth |
| Model / Part Number | 0608701016 |
| Type Code | EC302 SZ2 |
| Product Series | System 300 |
| Motor Type | EC Motor (Electronically Commutated / Brushless) |
| Supply Voltage | 0–230 V (3-phase AC) |
| Max Speed | 20,000 RPM |
| Max Current | 0.7 A |
| Torque Constant | 0.1 Nm/A |
| Rated Torque | 0.6 Nm |
| Peak Torque | 0.7 Nm |
| Connector Type | 14-Pin Industrial Connector |
| Application | Tightening Spindle / Automated Assembly |
| Weight (approx.) | 0.85 kg |
| Manufacturer | Bosch Rexroth AG |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 0.7A
Manufacturer Bosch
Part Number 0608701016
Shelf A-12
Model 0608701016
MPN 0608701016
Type AC Servo Motor
