Product Description

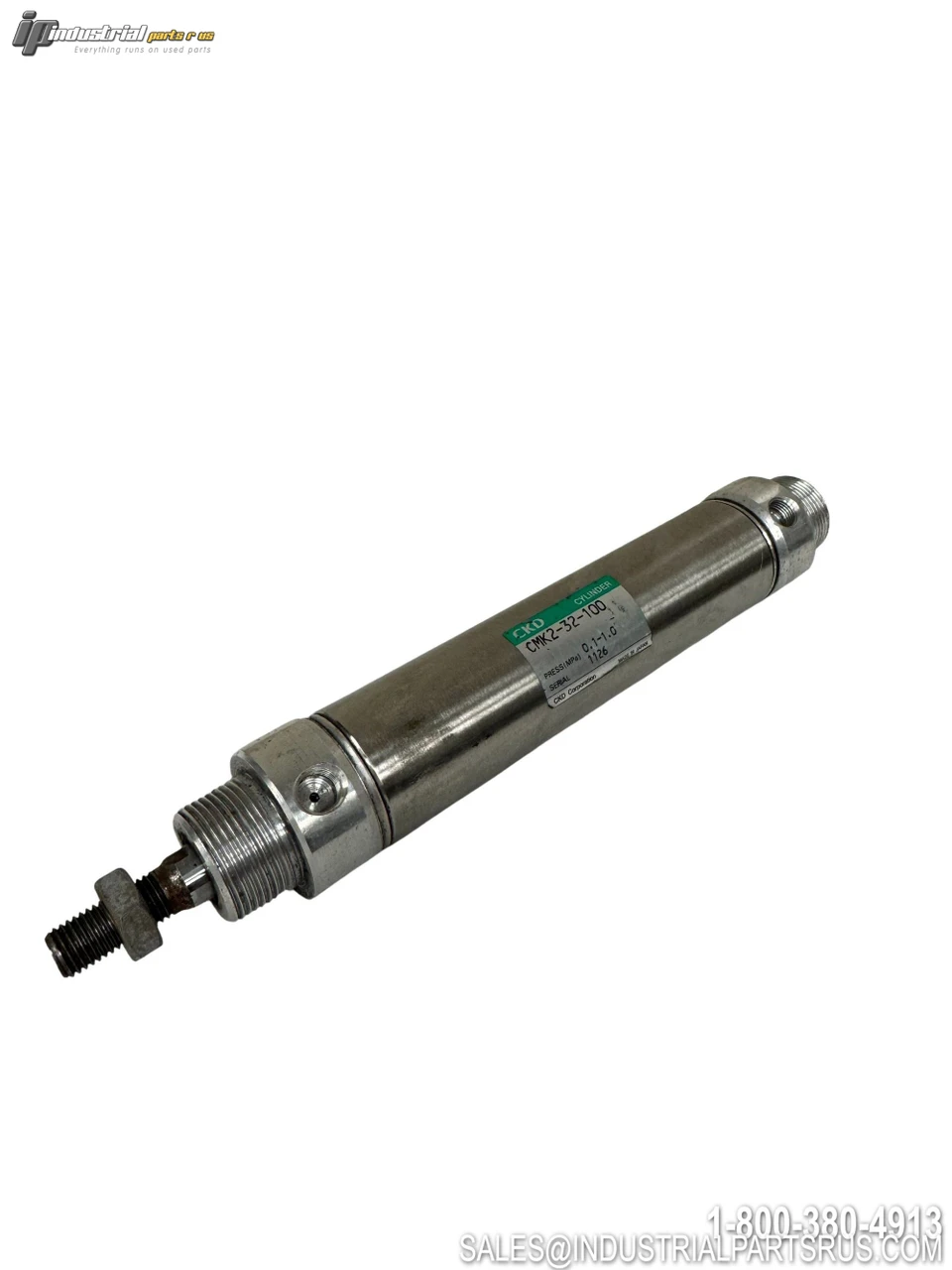

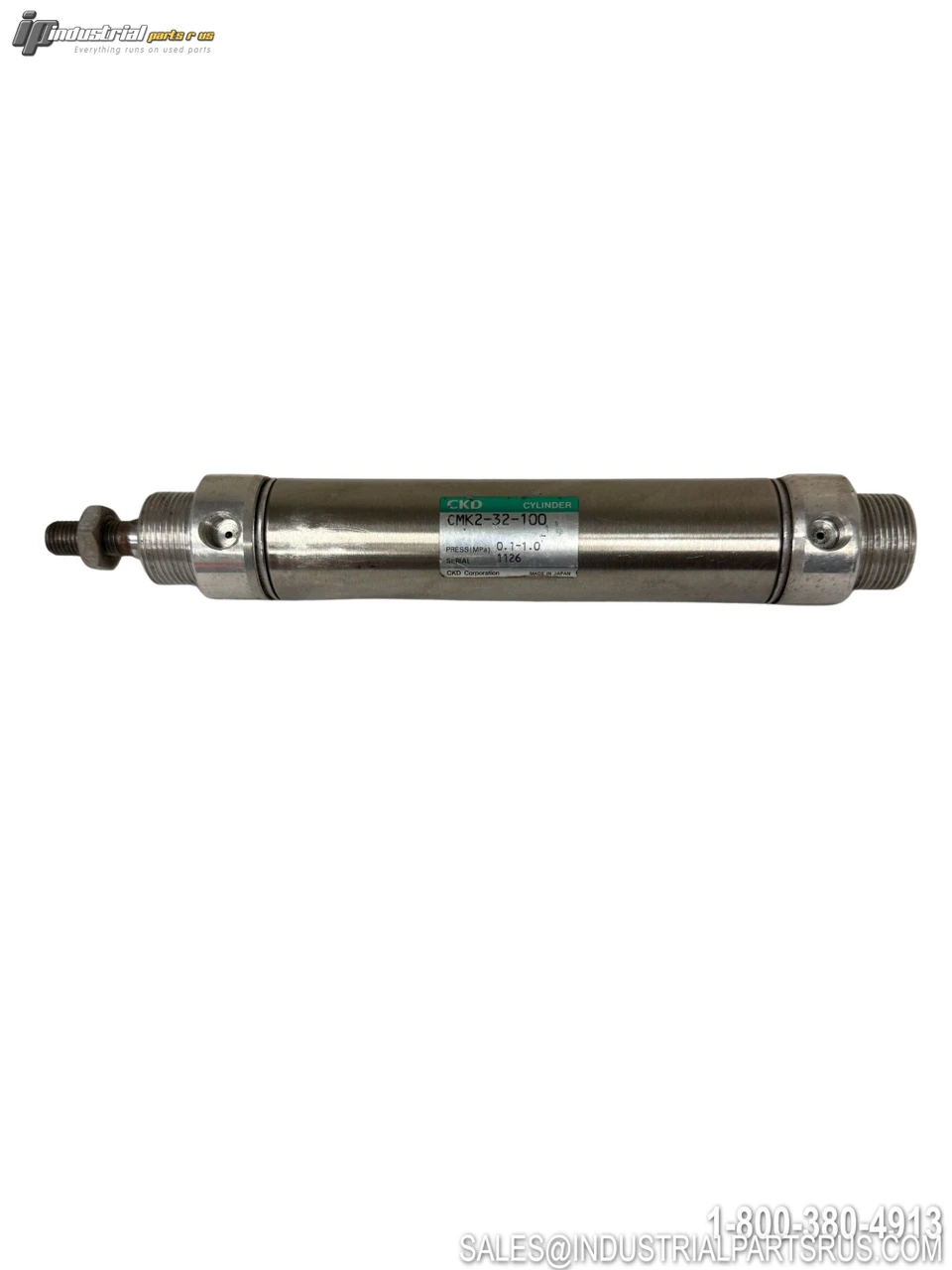

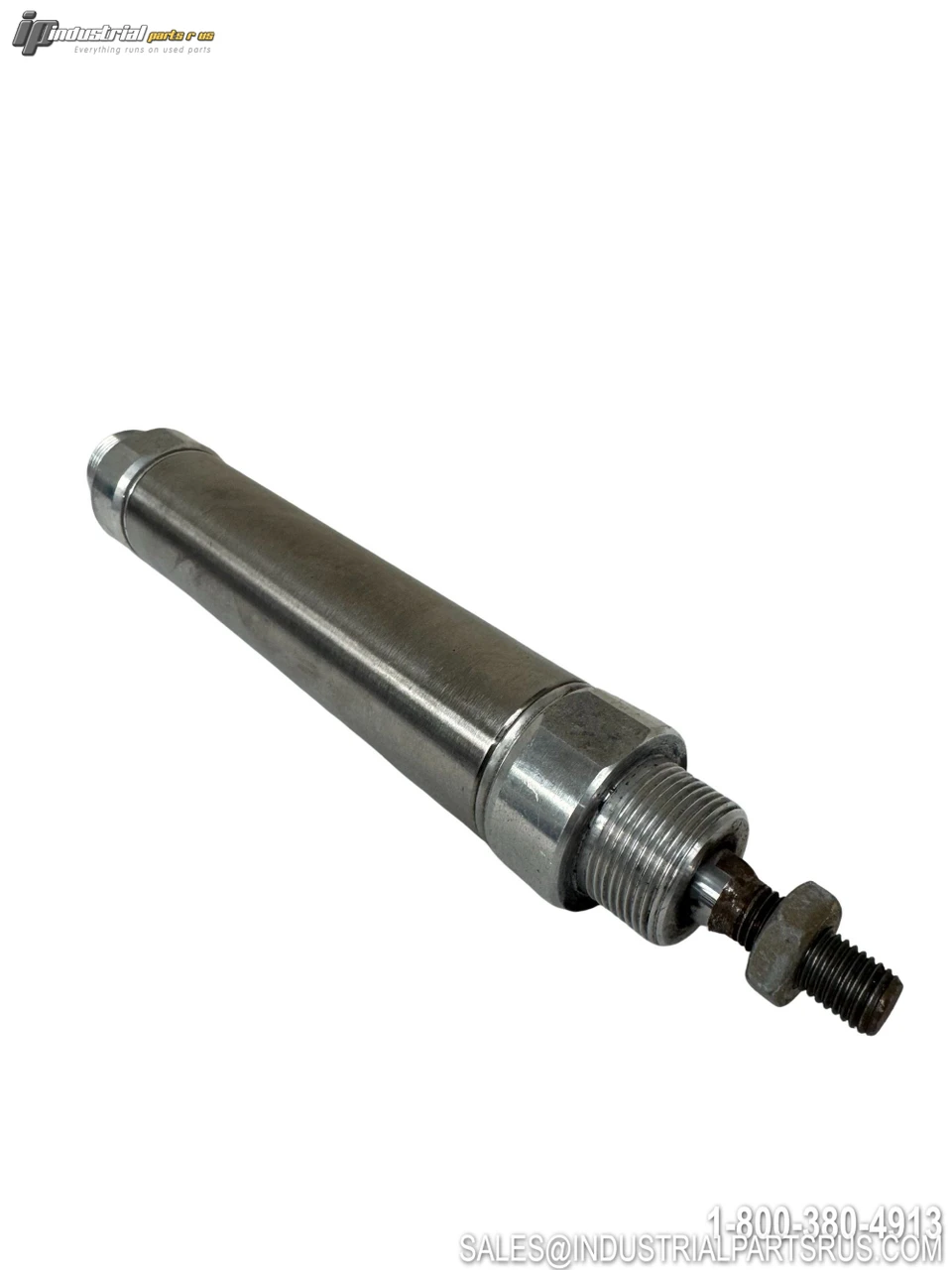

The CKD CMK2-32-100 is a medium bore, double-acting single-rod pneumatic cylinder from CKD's CMK2 Series. It features a 32mm bore diameter and 100mm stroke length in the basic (00) mounting configuration, designed for general-purpose pneumatic automation applications. The CMK2 Series is engineered for high corrosion resistance and long service life, utilizing a stainless steel cylinder tube and rubber cushion end stops.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | CKD |
| Model / Part Number | CMK2-32-100 |
| Series | CMK2 |
| Product Type | Pneumatic Cylinder |
| Actuation | Double Acting |
| Rod Type | Single Rod |
| Bore Diameter | 32 mm (ø32) |
| Stroke Length | 100 mm |
| Mounting Style | Basic Type (00) |
| Working Fluid | Compressed Air |
| Max. Working Pressure | 1.0 MPa (approx. 145 PSI) |
| Min. Working Pressure | 0.1 MPa |
| Withstanding Pressure | 1.6 MPa |
| Ambient Temperature Range | -10°C to 60°C (no freezing) |
| Port Size | Rc1/8 |
| Stroke Tolerance | +2.0 / 0 mm (strokes up to 200 mm) |
| Working Piston Speed | 50 to 500 mm/s |
| Cushion Type | Rubber Cushion |
| Lubrication | Not Required (if lubricating: Turbine Oil Class 1 ISO VG32) |
| Allowable Energy Absorption | 0.424 J (for ø32 bore) |
| Rod Diameter | 12 mm |
| Rod End Thread | M10 x 1.25 |
| Cylinder Tube Material | Stainless Steel |
| Head/Cap Material | Aluminum |
| Standard Stroke Options (series) | 25, 50, 75, 100, 150, 200, 250, 300 mm |
| Max. Stroke Length | 750 mm |
| Min. Stroke Length | 5 mm |
| Switch Compatibility | Optional (Reed T0/T5, Proximity T2/T3/T1, T8 series) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer CKD
Part Number CMK2-32-100
Shelf B-19 Tub 1
Bore Diameter 32 mm
Model CMK2-32-100
MPN CMK2-32-100
Type Pneumatic Cylinder
Country/Region of Manufacture Japan
