Product Description

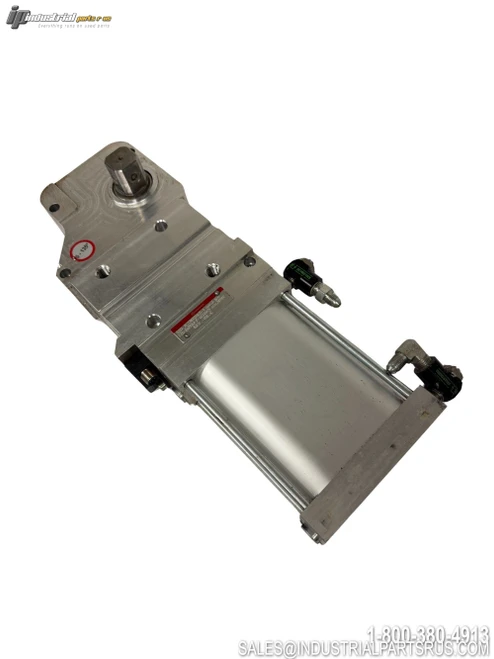

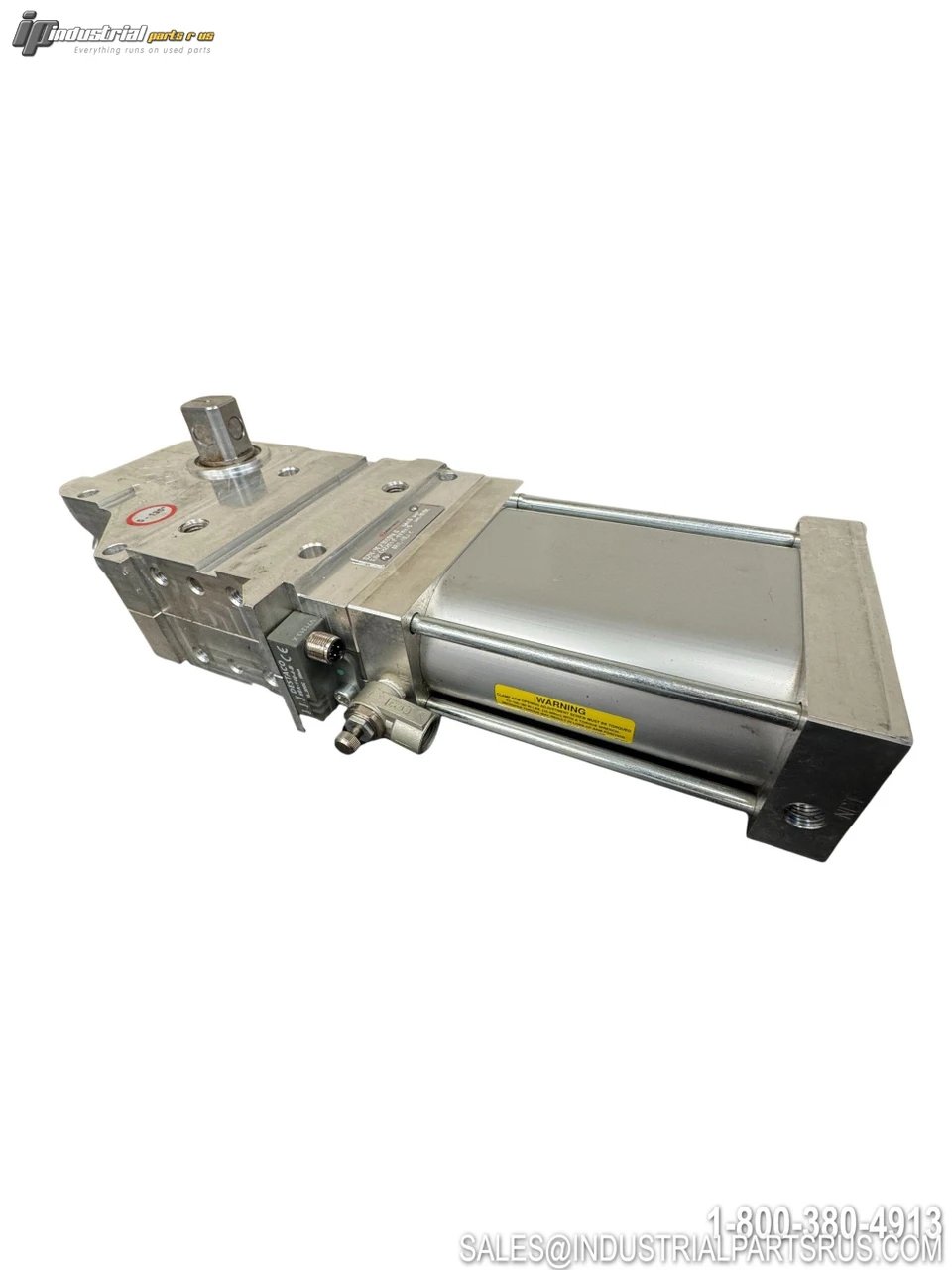

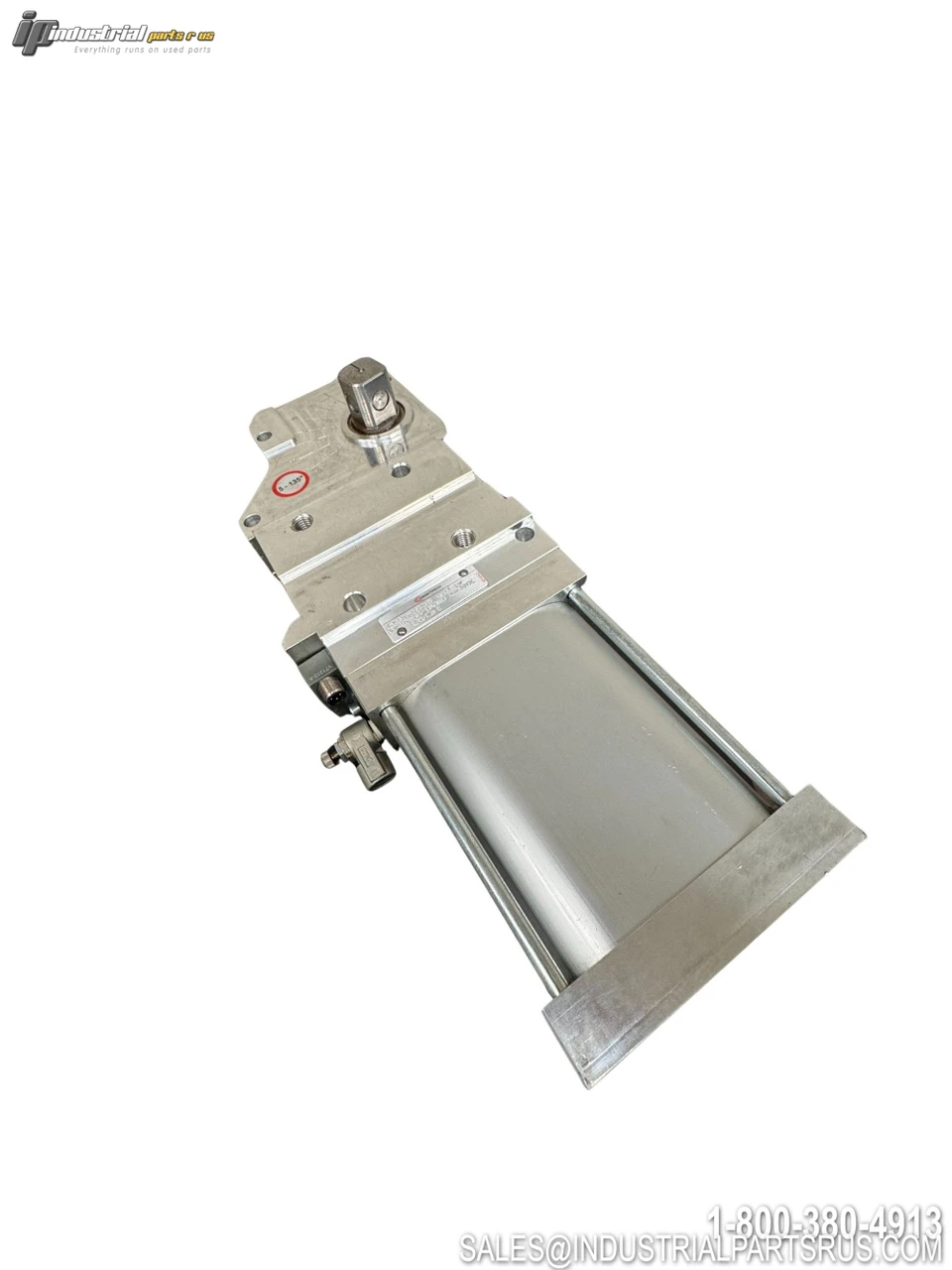

The Destaco 82N-3E23008NL8 is an enclosed heavy-duty modular pneumatic power clamp from the 82M-3E series family, featuring an 80mm cylinder bore with 1/4-18 NPT ports, a lateral clamp arm shaft configuration, no hand lever, and an inline (L8) PNP sensor with M12x1 connector. This clamp is engineered for high-cycle industrial clamping applications in automotive, sheet metal processing, welding fixture, positioning, and locating operations. The enclosed design protects internal components from contaminants, and the toggle-locking mechanism maintains secure hold even in the event of air pressure loss, with a field-adjustable opening angle ranging from 5° to 135°.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Destaco |
| Model / Part Number | 82N-3E23008NL8 |
| Product Type | Enclosed Pneumatic Power Clamp |
| Series Family | 82M-3E (Heavy-Duty Modular) |
| Cylinder Action | Double Acting |
| Cylinder Type | Pneumatic |
| Suitable Media | Air |
| Bore Diameter | 80 mm (3.15 in) |
| Port Type | 1/4-18 NPT |
| Stroke Length | 32 mm (1.26 in) |
| Maximum Operating Pressure | 87 psi (6 bar) |
| Clamp Arm Shaft Style | Lateral Arm (Long Drive Shaft) |
| Hand Lever | No Hand Lever |
| Sensor | L8 — PNP, Inline M12x1 Connector (Order No. 8EA-146-1) |
| Max Holding Torque | 3000 Nm (2213 ft-lb) |
| Max Clamping Torque at 5 bar | 850 Nm (627 ft-lb) |

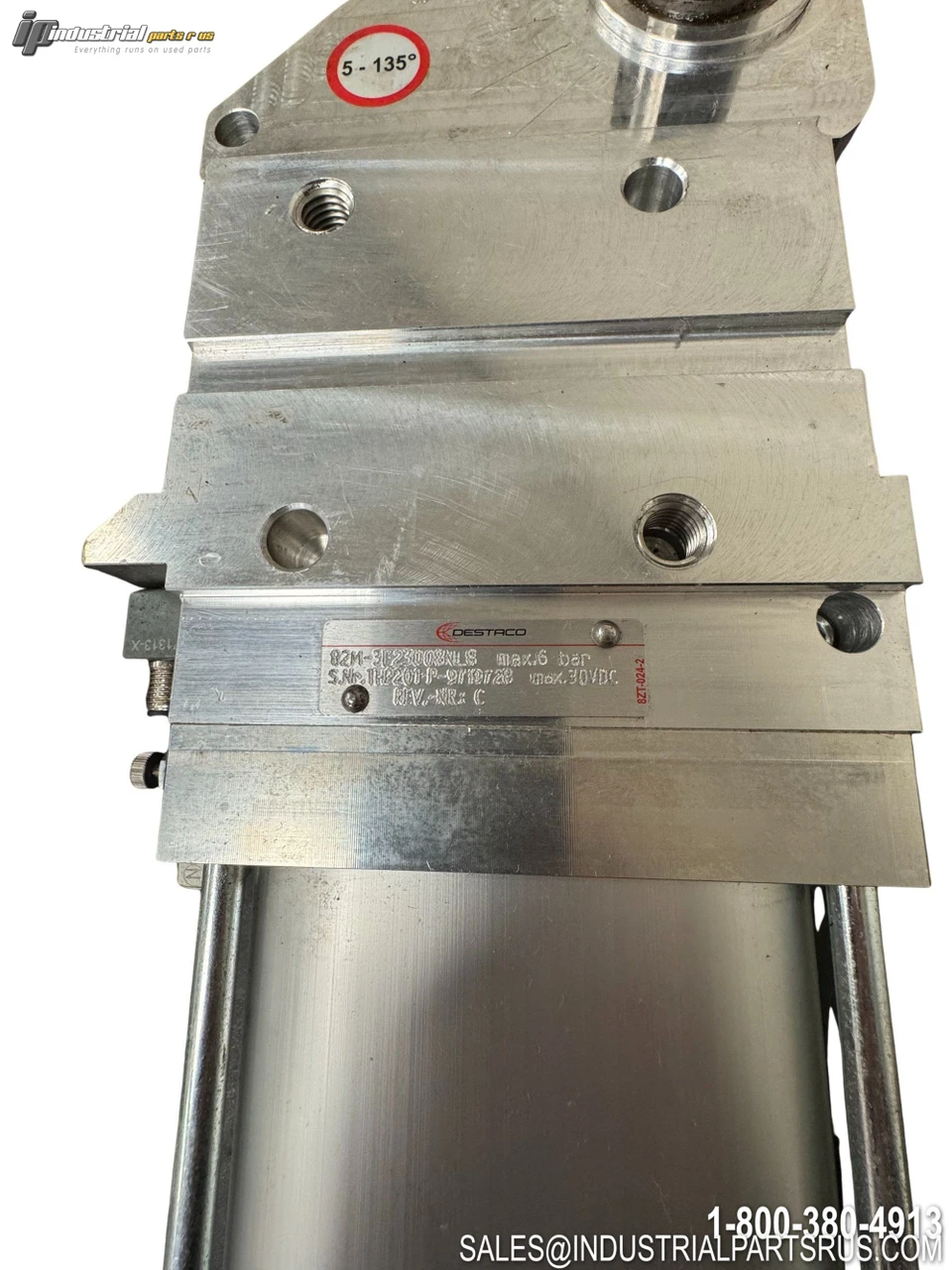

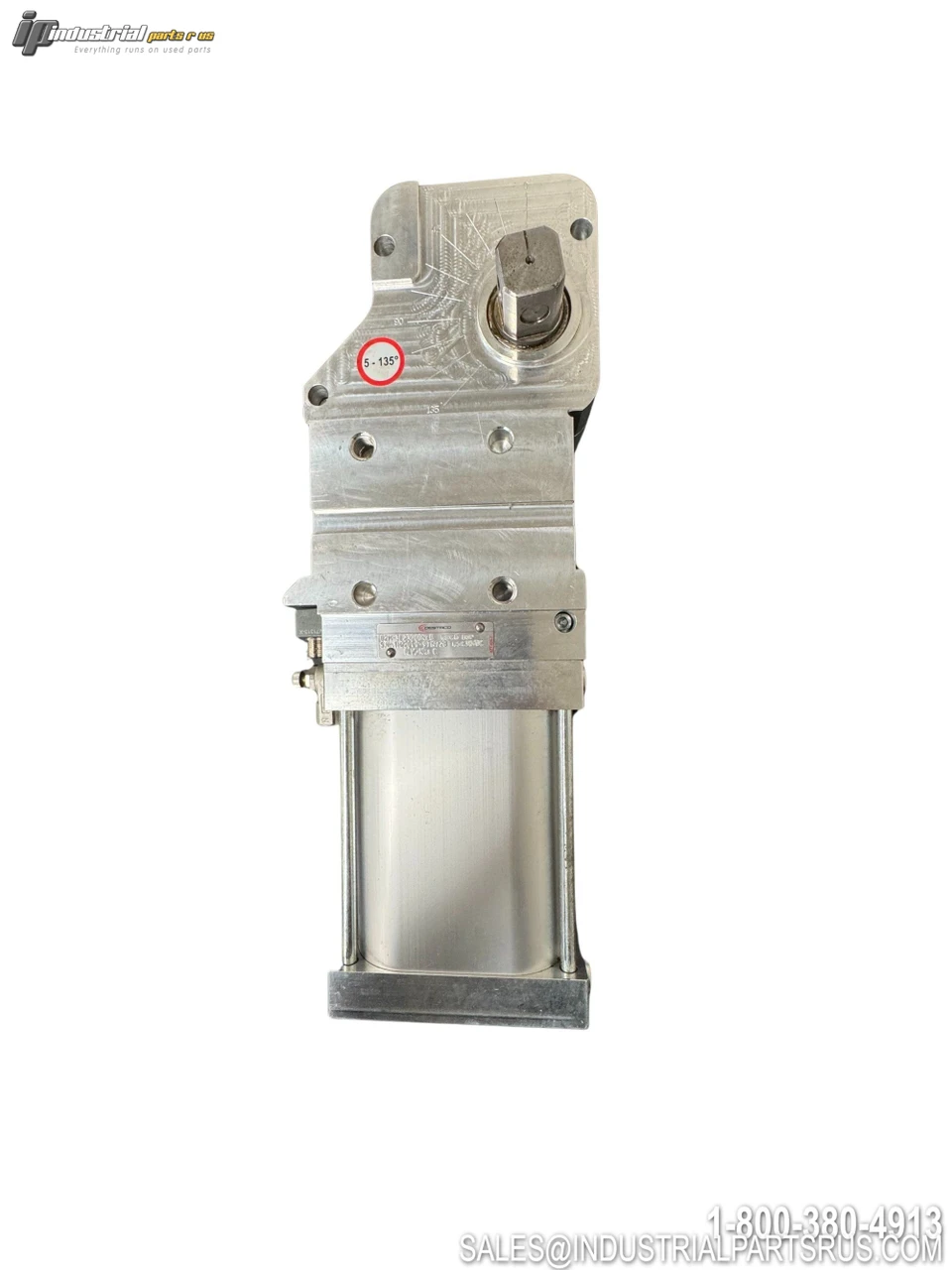

| Opening Angle | 5° – 135° (field adjustable) |
| Air Consumption per Double Stroke at 5 bar | 6.3 liters |
| Drive Shaft Length (L17) | 32 mm (1.26 in) |
| Weight | 19.14 lb (8.7 kg) |
| Spindle Included | No |
| Manual Unlocking | Yes (in case of air pressure loss) |
| Application | Clamping — Automotive, Sheet Metal, Welding Fixtures |
| Mounting Standard | Euro / NAAMS Compatible |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Material Aluminum (enclosed housing)
Mount Euro / NAAMS Compatible
Torque 3000 Nm (2213 ft-lb)
Max. PSI 87 psi (6 bar max)
Max. Operating Pressure 6 bar
Manufacturer Destaco
Empty Weight 19.14 lb (8.7 kg)
Max. Pressure 6 bar
Part Number 82M-3E23008NL8
Series 82M-3E
Shelf L-4
Stroke 6.3 liters at 5 bar
Bore Diameter 80 mm (3.15 in)
Model 82M-3E23008NL8
Port Size 1/4-18 NPT
MPN 82M-3E23008NL8
Type Pneumatic Cylinder
