Product Description

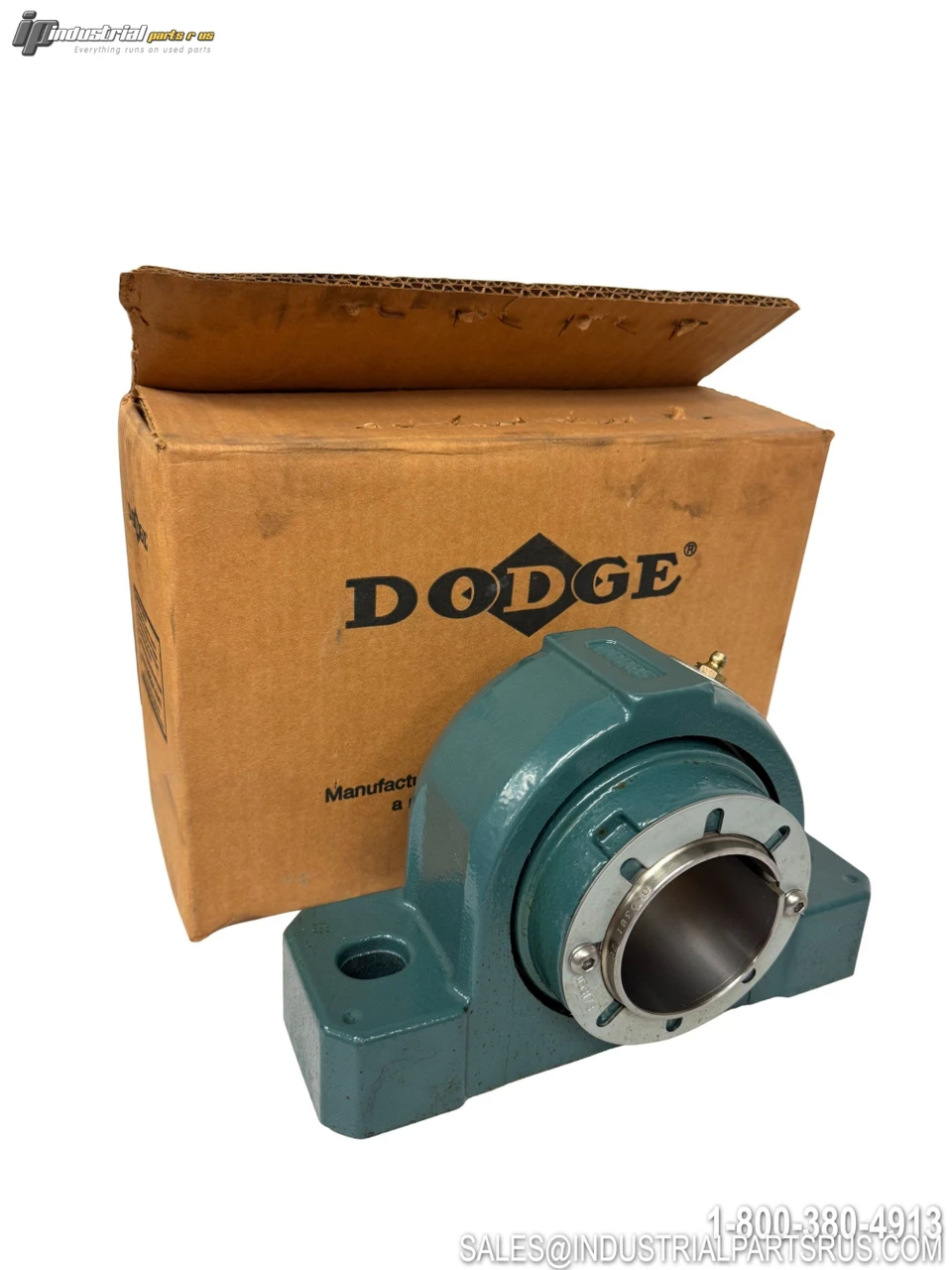

The Dodge P2B-IP-207R is a heavy-duty two-bolt pillow block bearing designed for high-performance industrial applications. This unit features an Imperial spherical roller bearing with cast iron housing construction, providing excellent load capacity and reliability for power transmission systems.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Dodge |
| Model/Part Number | P2b-ip207r |
| Manufacturer Internal Number | 069415 |
| Bore Diameter | 2-7/16 in (2.438 in) |
| Housing Material | Cast Iron |
| Housing Construction | Solid One-Piece |
| Bearing Type | Spherical Roller |
| Mounting Type | 2-Bolt Base |
| Locking Device | Adapter Mounted (Push-Pull Adapter) |
| Expansion Type | Non-Expansion (Fixed) |
| Seal Type | Trident Triple Lip Contact |
| Base to Center Height | 2-3/4 in (2.75 in) |
| Bolt Center to Center Length | 6.94 to 7.31 in |
| Overall Length | 9-1/4 in |
| Overall Width | 3.42 in |
| Overall Height | 5.59 in |
| Insert Material | Steel |
| Dynamic Load Capacity | 39,000 lbf |
| Static Load Capacity | 47,500 lbf |
| Maximum Speed | 2400 rpm |
| Lubrication | Grease (MobilGrease XHP222) |
| Series | 22213 |
| Weight | 15.68 lbs |
| Relubricatable | Yes |
| Sensor Ready | Yes |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Material 52100 Bearing Steel
Manufacturer Dodge
Part Number P2B-IP207R
Shelf G -S -34
Bore Diameter 2-7/16 in
Model P2B-IP207R
MPN P2B-IP207R
Type Pillow Block
