Product Description

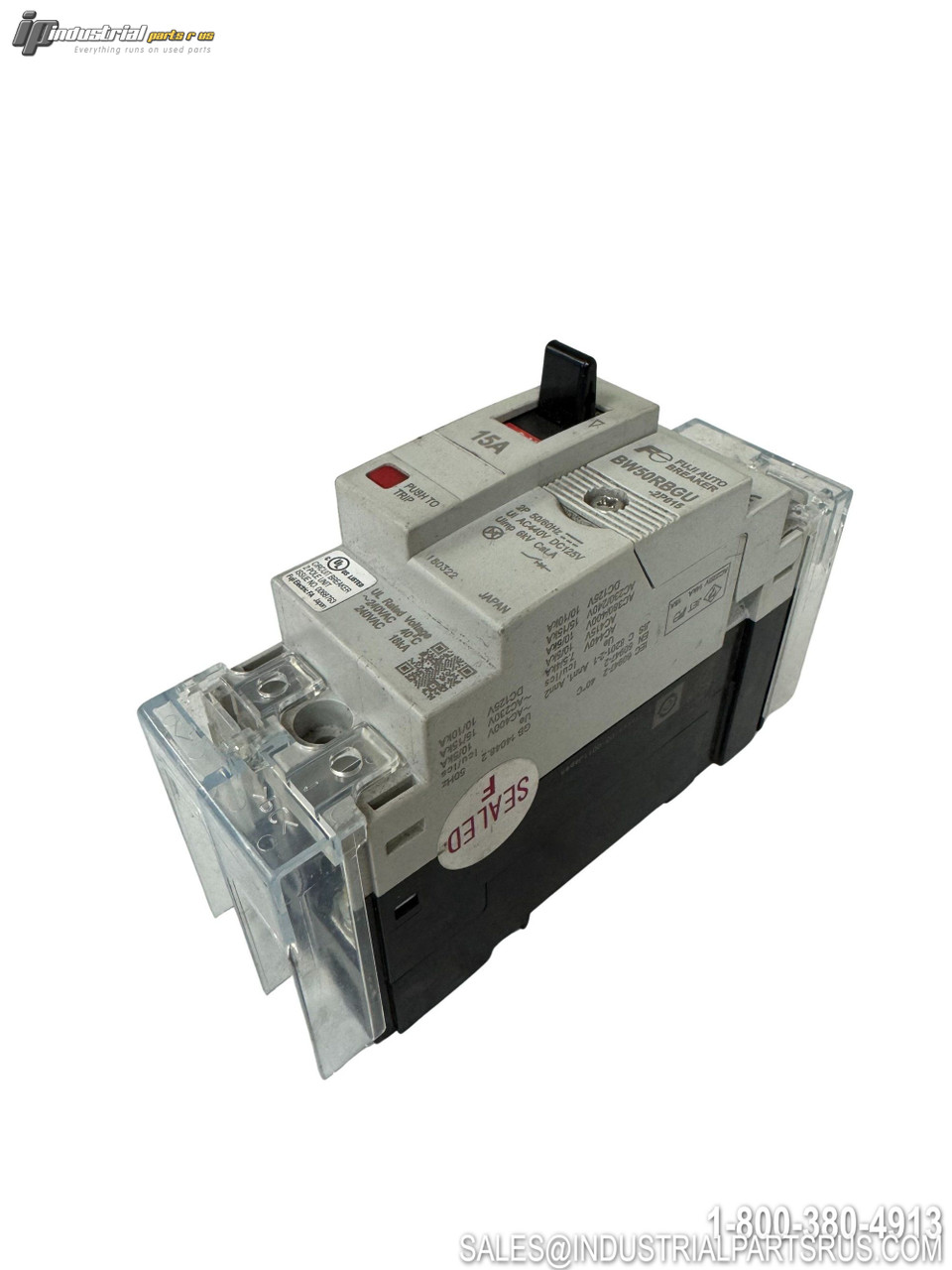

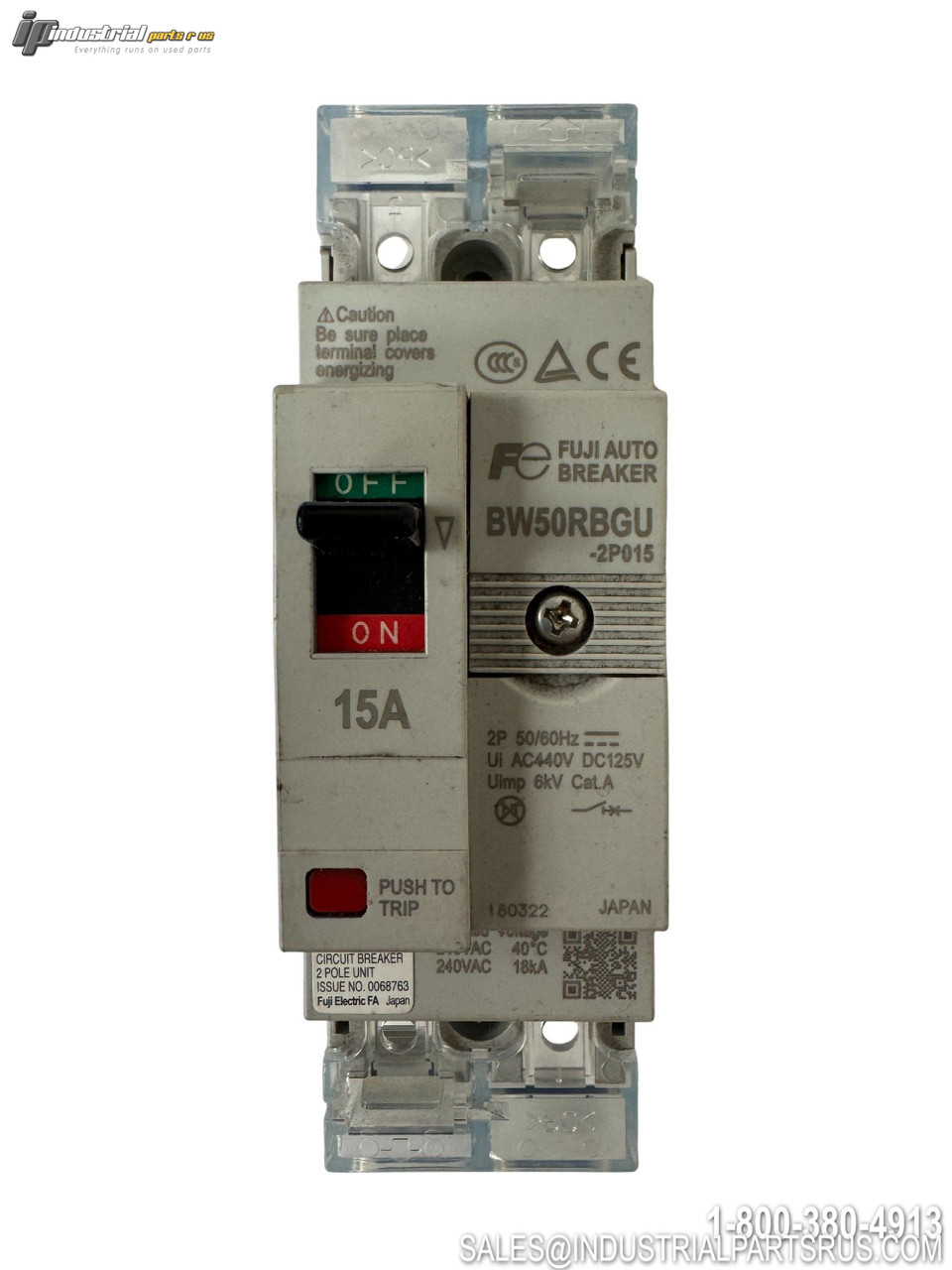

The Fuji Electric BW50RBGU-2P015 is a 2-pole, 15-ampere molded case circuit breaker from the G-TWIN Lambda (BW) Series, designed for reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a hydraulic-magnetic tripping mechanism that supports both AC and DC circuits, housed in a compact 50AF frame rated for up to 690VAC and 250VDC. The breaker supports DIN rail or screw panel mounting and is compatible with a range of field-installable accessories including auxiliary switches, alarm switches, and shunt trip devices. Suitable for industrial control panels, machine equipment, motor branch circuit protection, and power distribution applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Fuji Electric |
| Model / Part Number | BW50RBGU-2P015 |
| Product Type | Molded Case Circuit Breaker (MCCB) |
| Series | G-TWIN Lambda (BW Series) |
| Number of Poles | 2 |
| Rated Current | 15A |
| Ampere Frame | 50AF |
| Rated Voltage (AC) | 690 VAC |
| Rated Voltage (DC) | 250 VDC |
| Breaking Capacity @ 400V AC | 10 kA |
| Breaking Capacity @ 230V AC | 15 kA |
| Interrupt Rating | 18 kA |
| Tripping Device | Hydraulic-Magnetic |
| Connection Method | Surface / Screw Terminal |
| Mounting Method | DIN Rail / Screw Retention |
| Height (mm) | 120 mm (4.724 in) |
| Width (mm) | 36 mm (1.969 in) |
| Depth (mm) | 90 mm (3.543 in) |
| Mass | 0.5 kg |
| Model Class | High Performance Type (UL Registered Product) |
| Certifications | UL Listed (NEMA AB1), CUL, CE, TUV, CCC, CSA, PSE |
| Field-Installable Accessories | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Trip |
| AC/DC Support | Both AC and DC circuits supported |
