Product Description
The General Electric CR72AMH is an IEC manual motor starter / motor protector designed for manual motor control and protection applications. This 3-pole unit features an adjustable thermal-magnetic current range of 1.6–2.5A and is rated for operation on systems up to 600 VAC.
This unit includes a GE CR72AXA11 auxiliary contact block with 1 normally open (N.O.) and 1 normally closed (N.C.) auxiliary contact. The starter features separate START and STOP controls and an adjustable current setting for matching the connected motor load.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | General Electric (GE) |
| Model / Catalog Number | CR72AMH |
| Product Type | Manual Motor Starter / Motor Protector |
| Product Series | CR72 |
| Number of Poles | 3-Pole |
| Adjustable Current Range | 1.6–2.5 A |
| Protection Type | Thermal-Magnetic |
| Trip Class | Class 10 |
| Trip Rating | 120% of Dial Setting |
| Maximum Voltage | 600 VAC |
| Frequency | 50/60 Hz |
| Motor Rating – 200V, 3-Phase | 1/2 HP |
| Motor Rating – 230V, 3-Phase | 1/2 HP |
| Motor Rating – 460V, 3-Phase | 1 HP |
| Motor Rating – 575V, 3-Phase | 1-1/2 HP |
| Motor Rating – 230V, 1-Phase | 1/6 HP |
| Group Fusing Rating | 5 kA – 600 VAC |
| Maximum Fuse / Circuit Breaker | 100 A |
| Wire Range | 14–10 AWG |
| Wire Type | 75°C Copper Wire |
| Terminal Torque | 2.3 Nm / 20 lb-in |
| Controls | Manual START / STOP |
| Standards | IEC 947-4 / EN 60947-4 |
| Country of Manufacture | Germany |
Included Auxiliary Contact Block
| Manufacturer | General Electric (GE) |
| Catalog Number | CR72AXA11 |
| Product Type | Auxiliary Contact Block |
| Contact Configuration | 1 N.O. / 1 N.C. |
| Terminal Identification | 13-14 N.O. / 21-22 N.C. |
| Maximum Voltage / Current | 600 VAC Max. / 5 A |
| Pilot Duty Rating | B300 / R300; B600 (Same Polarity) |
| Thermal Current (Ith) | 6 A @ 50°C |
| Compatibility | For Use With GE CR72A Series |

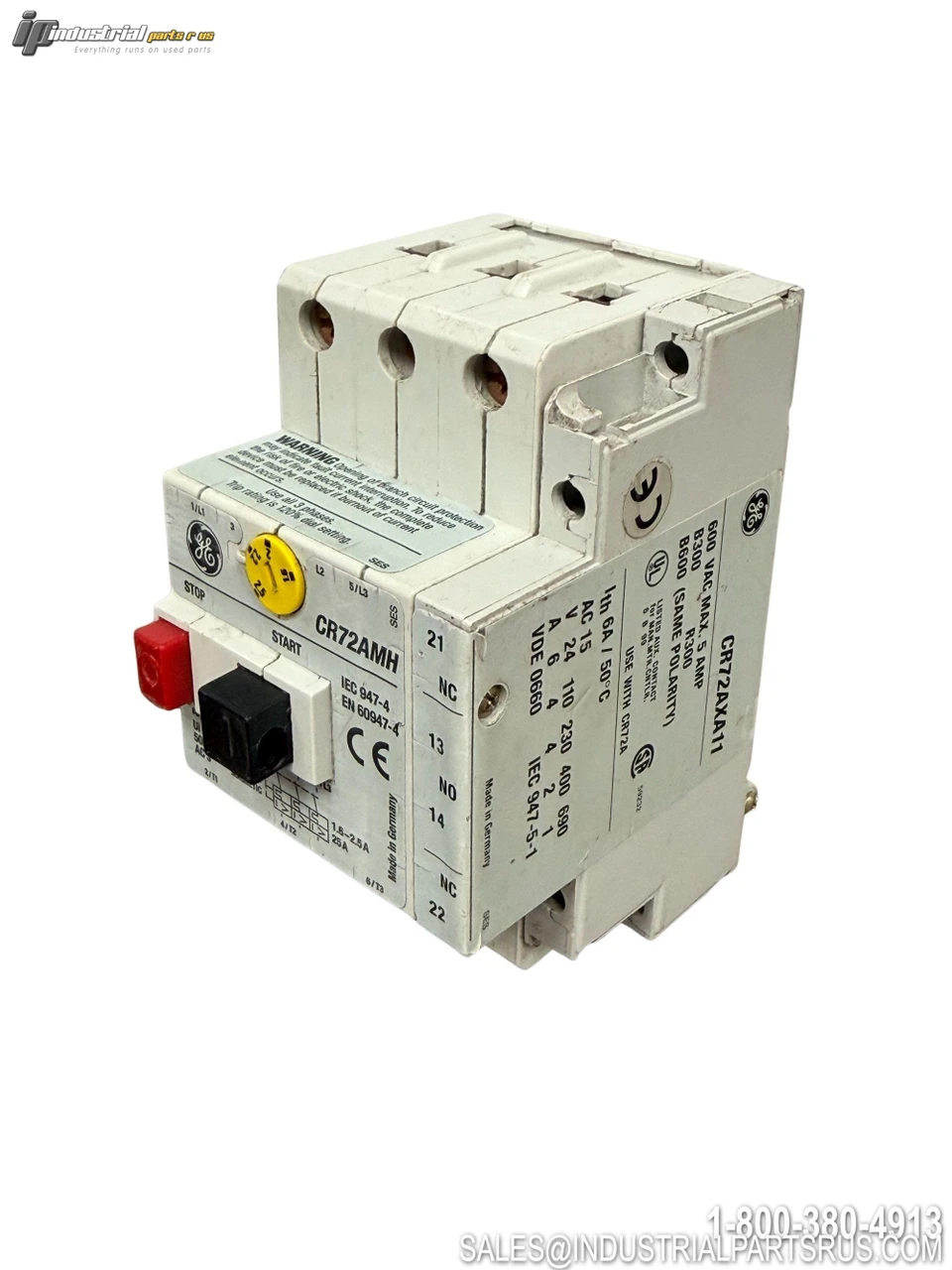

Included: GE CR72AMH manual motor starter with GE CR72AXA11 auxiliary contact block as pictured.
Please review all photos for the exact configuration, markings, and cosmetic condition of the unit.
