Product Description

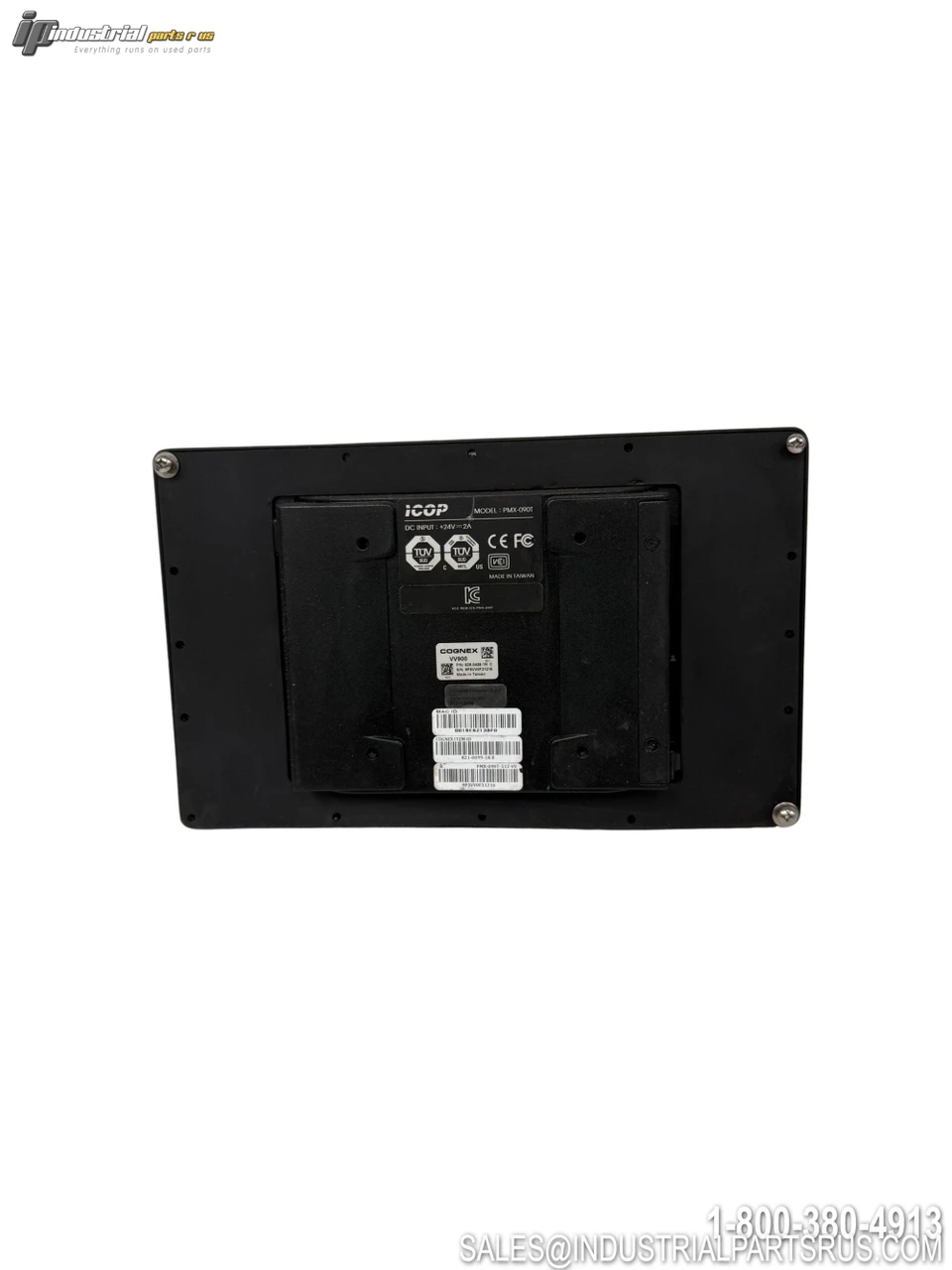

The ICOP PMX-090T is an ultra-compact industrial Touch Panel PC built around the DM&P Vortex86MX+ SoC processor running at up to 1GHz, featuring a 9-inch WSVGA TFT LCD with resistive touchscreen. It is designed for demanding embedded and industrial HMI applications, providing an IP65-rated front panel for splash and dust resistance, an integrated 10/100M Ethernet port for network connectivity, and support for Linux, Windows CE, and Windows XP environments. The fanless, wide-range 8–35VDC input design makes it suitable for harsh industrial environments. The unit is discontinued by the manufacturer but remains widely available through industrial surplus channels.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | ICOP |
| Model / Part Number | PMX-090T |
| Product Type | Touch Panel PC / HMI |
| CPU | DM&P Vortex86MX+ SoC, up to 1GHz |
| CPU Cache (L1) | 16KB I-Cache + 16KB D-Cache |
| CPU Cache (L2) | 256KB |
| BIOS | AMI BIOS |
| Memory | 512MB or 1GB DDR2 (onboard, variant-dependent) |
| Display Size | 9 inches TFT LCD (WSVGA) |
| Display Resolution | 1024 x 600 pixels |
| Contrast Ratio | 500:1 |
| Viewing Angle (Vertical) | 120 degrees |
| Viewing Angle (Horizontal) | 140 degrees |
| Touchscreen Type | Resistive |
| Input Voltage | +8V to +35V DC (variant-dependent; 5A or 8A power connector) |
| Rated Voltage (Radwell) | 24 VDC |
| Rated Current | 2A |
| Ethernet | Integrated 10/100 Mbps (RJ45) |
| Serial Port | 1x COM (RS-232 / RS-422 / RS-485, BIOS selectable) |
| USB Ports | 2x USB |
| Audio | HD Audio — Realtek ALC262 CODEC, 1x Line-Out |
| Storage Slots | 1x Compact Flash Slot, 1x MicroSD Slot |
| Keyboard Port | 1x PS/2 Keyboard |
| Watchdog Timer | Software programmable, 30.5μs to 512 seconds x 2 sets |
| Graphics | Integrated RDC Display chip (~1–1.5W power consumption) |
| Supported OS | Linux, Windows CE, Windows XP |
| Dimensions | 236.6 x 146 x 35 mm (9.31 x 5.75 x 1.38 in) |
| Weight | 468g / ~2.01 lbs |
| Wireless | Optional (antenna port available on select variants) |
| Status | Discontinued by Manufacturer |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 2A
Manufacturer Icop
Part Number PMX-090T
Controller Platform PMX-090T Panel PC Series
Shelf D-15
Model PMX-090T
MPN PMX-090T
Type Touch Panel
