Product Description

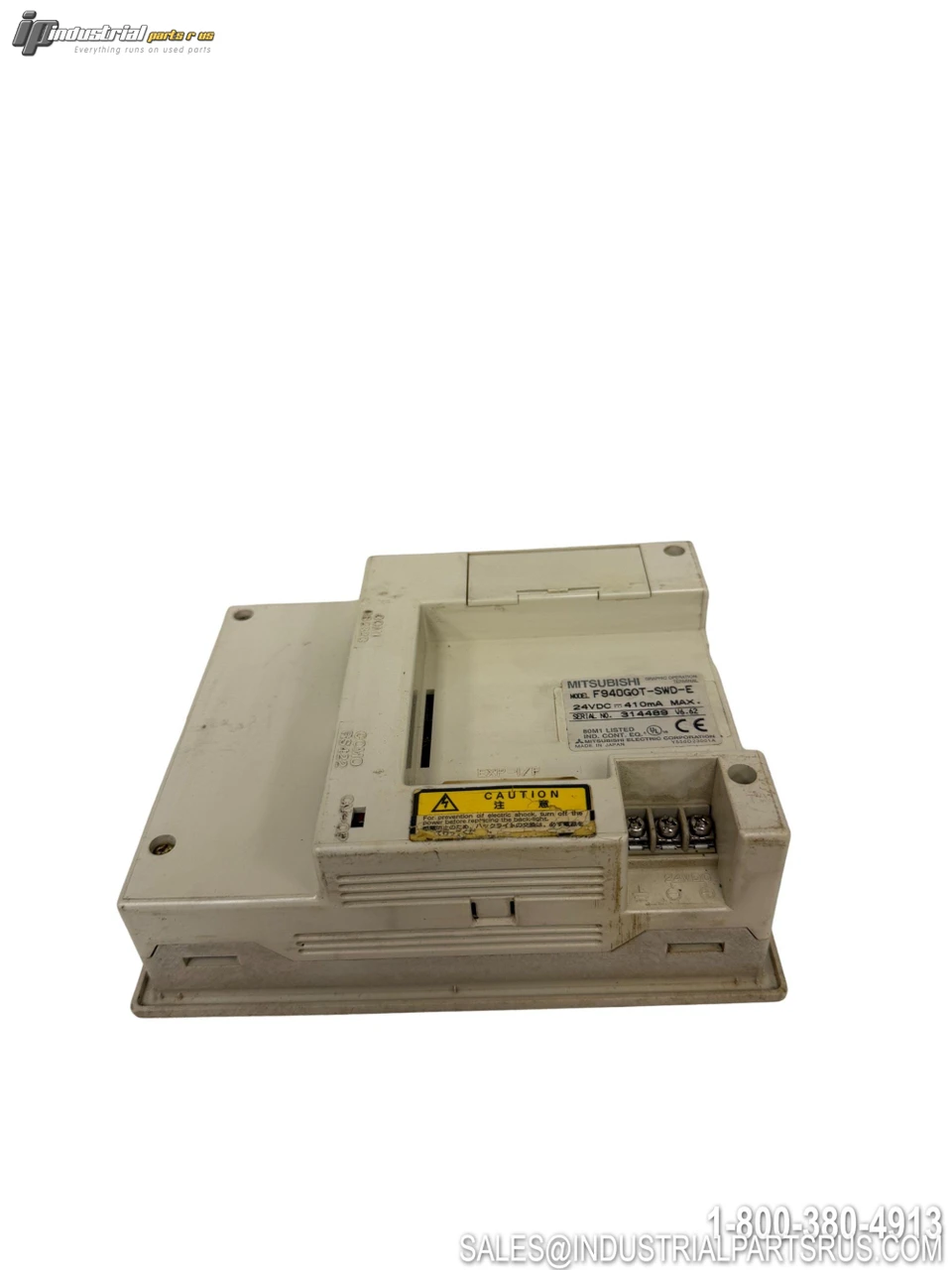

The Mitsubishi Electric F940GOT-SWD-E is a Graphic Operation Terminal (GOT) belonging to the MELSEC-GOT F900 Series, designed for panel-mount installation in industrial control and automation environments. It features a 5.7-inch STN full-dot-matrix LCD touchscreen with 8-color display and 320×240 pixel resolution, providing clear visual feedback for operator control and PLC monitoring. The unit communicates with Mitsubishi FX, A, QnA, and Q series PLCs via dual serial interfaces (RS-232C and RS-422) and is rated IP65f for resistance to dust and liquid ingress.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mitsubishi Electric |
| Model / Part Number | F940GOT-SWD-E |
| Product Series | MELSEC-GOT F900 Series |
| Product Type | Graphic Operation Terminal (HMI / Touch Panel) |
| Screen Size (Diagonal) | 5.7 inches |
| Screen Dimensions (W × H) | 115 mm × 86 mm (4.53 in × 3.39 in) |
| Display Type | STN Full Dot Matrix LCD |
| Display Resolution | 320 × 240 dots |
| Dot Pitch | 0.36 mm (H & V) |
| Number of Colors | 8 colors (gray, blue, yellow/green) |
| Characters per Line | 40 characters |
| Lines per Screen | 15 lines |
| Maximum Touch Keys | 50 keys |
| Supply Voltage | 24 VDC (+10% / -15%) |
| Current Consumption | 410 mA @ 24 VDC |
| Communication Port 1 | RS-232C, 9-pin D-sub (male) |
| Communication Port 2 | RS-422, 9-pin D-sub (female) |
| Compatible PLCs | Mitsubishi MELSEC FX, A, QnA, Q Series; FREQROL Series; select third-party PLCs |
| Enclosure / IP Rating | IP65f equivalent (front panel) |
| Backlight Lifespan | 50,000 hours (typical) |
| Battery Type | Lithium (PM-20BL), approx. 5-year lifespan |
| Momentary Power Outage Tolerance | 5 milliseconds |
| Dielectric Withstand Voltage | 500 VAC for 1 minute (power terminals to ground) |
| Insulation Resistance | ≥ 5 MΩ @ 500 VDC (power terminals to ground) |
| Noise Immunity | 1,000 Vp-p |
| Impact Resistance | 147 m/s² |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 35% to 85% RH (non-condensing) |
| Mounting Style | Panel mount (front of control panel) |
| Color / Housing | White |
| Language | English |
| Programming Software | GT Designer2, FX-PCS-DU/WIN-E (FXDUWIN) |
| Status | Discontinued by Manufacturer |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear. SCREEN DAMAGEProduct Videos
Custom Field
GTIN 679523686161
Full Load Amps 410 mA @ 24 VDC
Manufacturer Mitsubishi
Enclosure Type IP65f equivalent (front panel)
Part Number F940GOT-SWD-E
Controller Platform Mitsubishi MELSEC FX, A, QnA, Q Series
Shelf D-15
Model F940GOT-SWD-E
MPN F940GOT-SWD-E
Type HMI
