Product Description

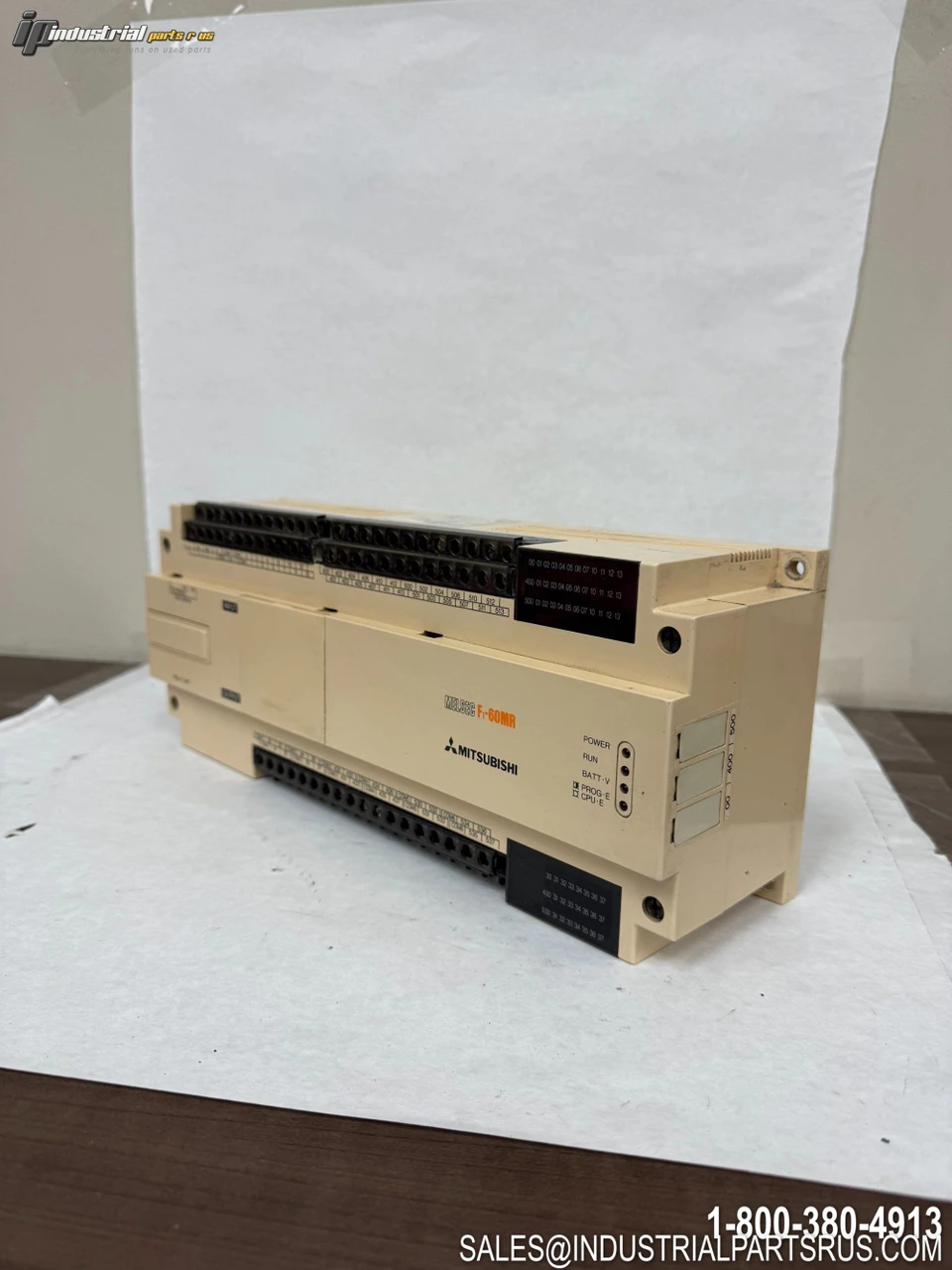

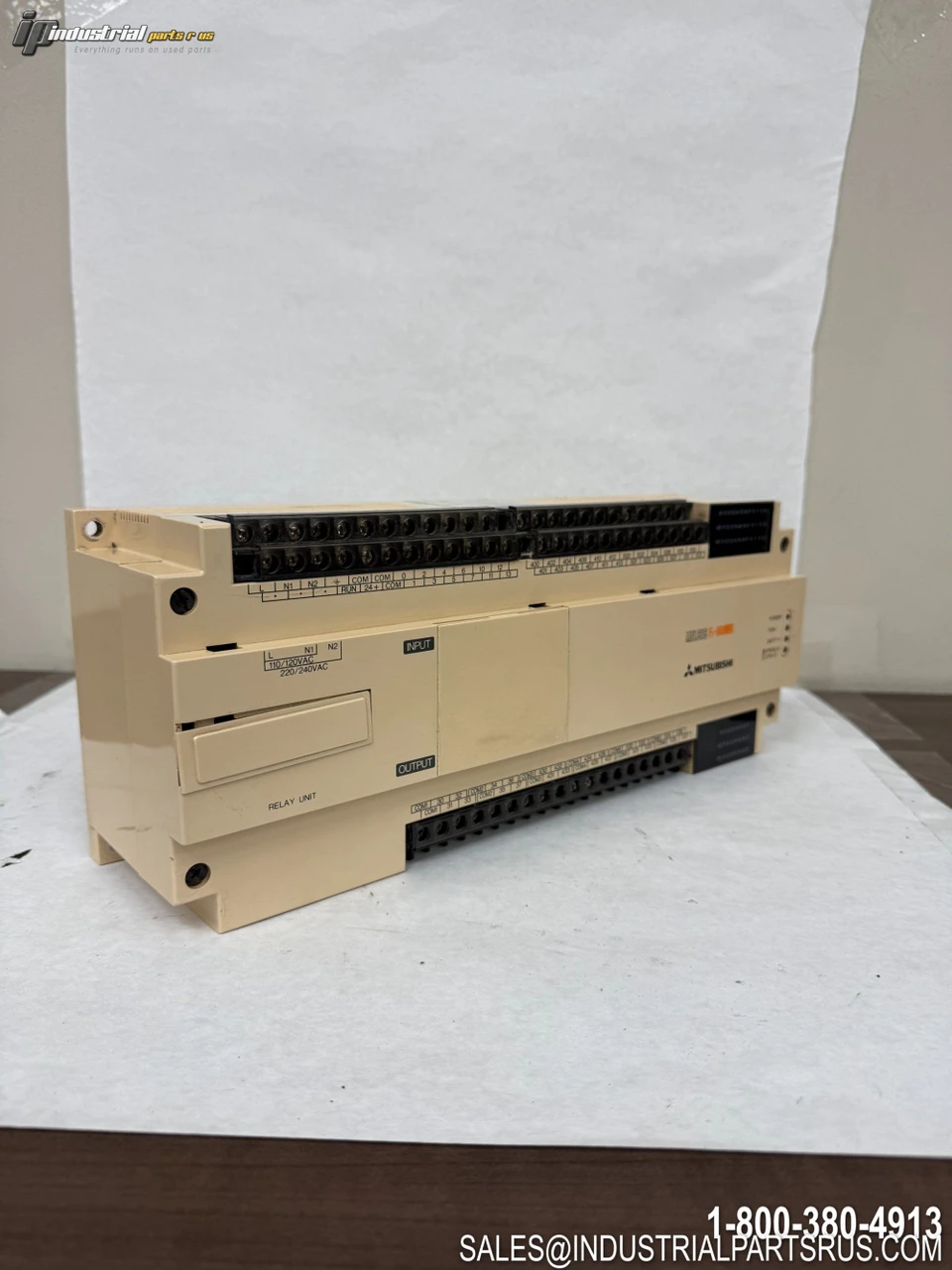

The Mitsubishi MELSEC F1-60MR is a brick-style programmable logic controller (PLC) from the legacy F1 Series, featuring 60 I/O points (36 DC inputs and 24 relay outputs) in a single integrated base unit. It operates on AC mains power (100–120V or 200–240VAC, selectable) and provides an internal 24VDC service rail for input sensor devices. The F1-60MR is expandable to 120 I/O points via extension units and supports EPROM, EEPROM, or cassette tape external program storage. Programming is performed via Mitsubishi's F Series handheld programmer or dedicated programming software using ladder logic. This model has been discontinued by Mitsubishi Electric.(Output relay will not switch. Parts only)
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mitsubishi Electric |
| Model / Part Number | F1-60MR |
| Series / Platform | MELSEC F1 Series |
| Product Type | Programmable Logic Controller (PLC) – Brick / Base Unit |
| Total I/O Points | 60 (36 Inputs / 24 Outputs) |
| Number of Inputs | 36 |
| Input Voltage (Sensor) | 24V DC |
| Input Current (OFF→ON) | 4 mA minimum |
| Input Current (ON→OFF) | 1.5 mA maximum |
| Number of Outputs | 24 |
| Output Type | Relay (NO contacts) |
| Output Rating | 30V DC / 250V AC, 2A max |
| AC Power Supply Voltage | 100V/110V AC or 200V/220V AC (selectable) |
| Power Supply Frequency | 50/60 Hz |
| Power Consumption | 40 VA |
| Input Response Time | Approx. 10 ms |
| Program Memory Capacity | 1000 Steps |
| Memory Type | CMOS RAM (battery backed); optional EPROM / EEPROM / cassette |
| Execution Speed | Average 12 µs/step |
| Programming Language | Ladder Logic (Relay Ladder Diagram) |
| Programming Device | F Series Handheld Programmer or compatible programming software |
| Maximum Expandable I/O | 120 I/O (via extension units) |
| Battery Backup | Yes (5-year battery for built-in RAM) |
| Terminal Type | Screw terminals (removable terminal block) |
| Diagnostic LEDs | Inputs, Outputs, Power Supply, RUN/STOP, Battery Voltage, Program Error, CPU Error |
| Mounting Type | DIN Rail or Surface Mount |
| Weight | Approx. 2.59 kg (5.75 lbs) |
| Status | Discontinued by Manufacturer |
We warranty all items for 30 days from date of purchase.
