Product Description

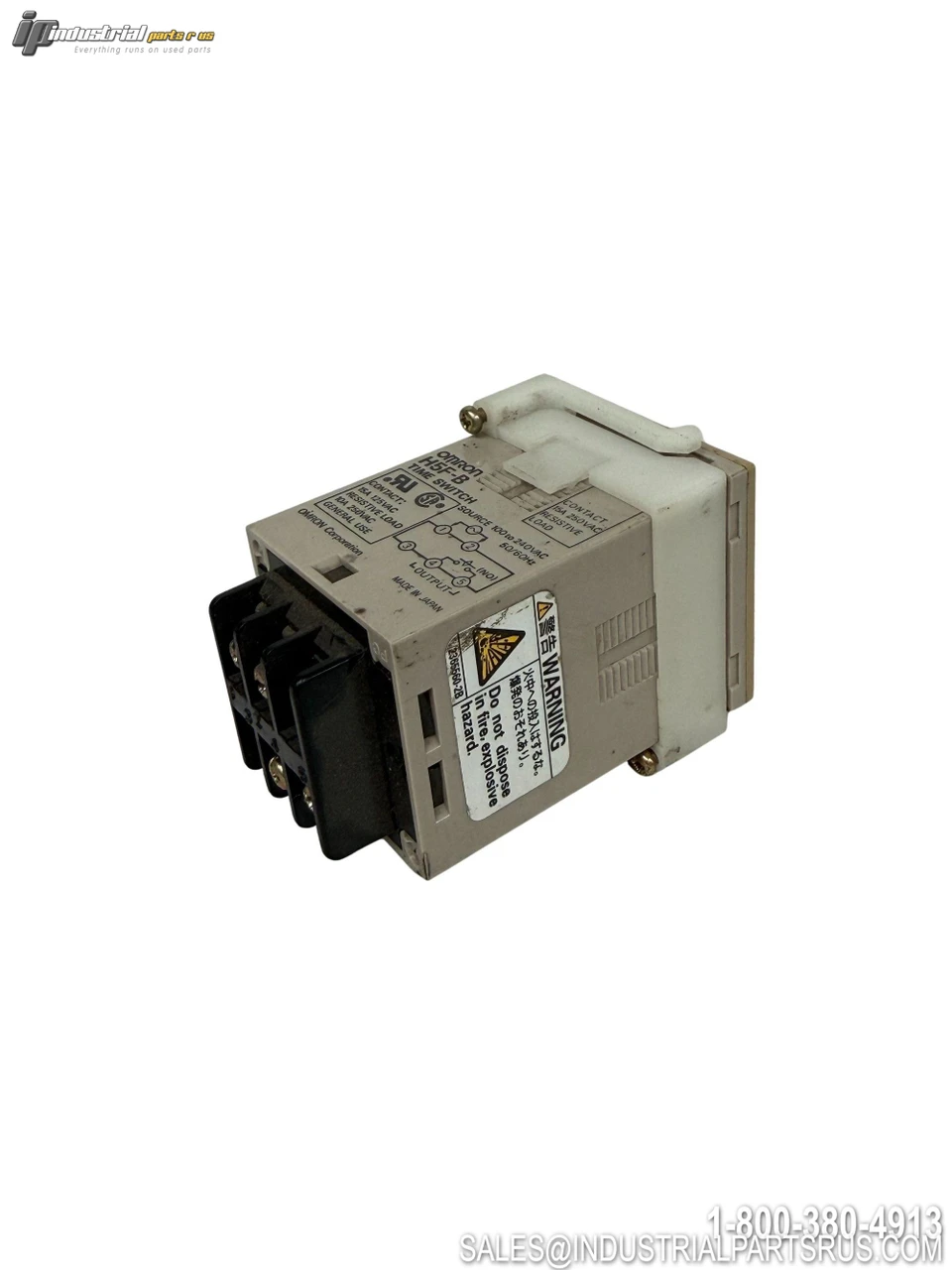

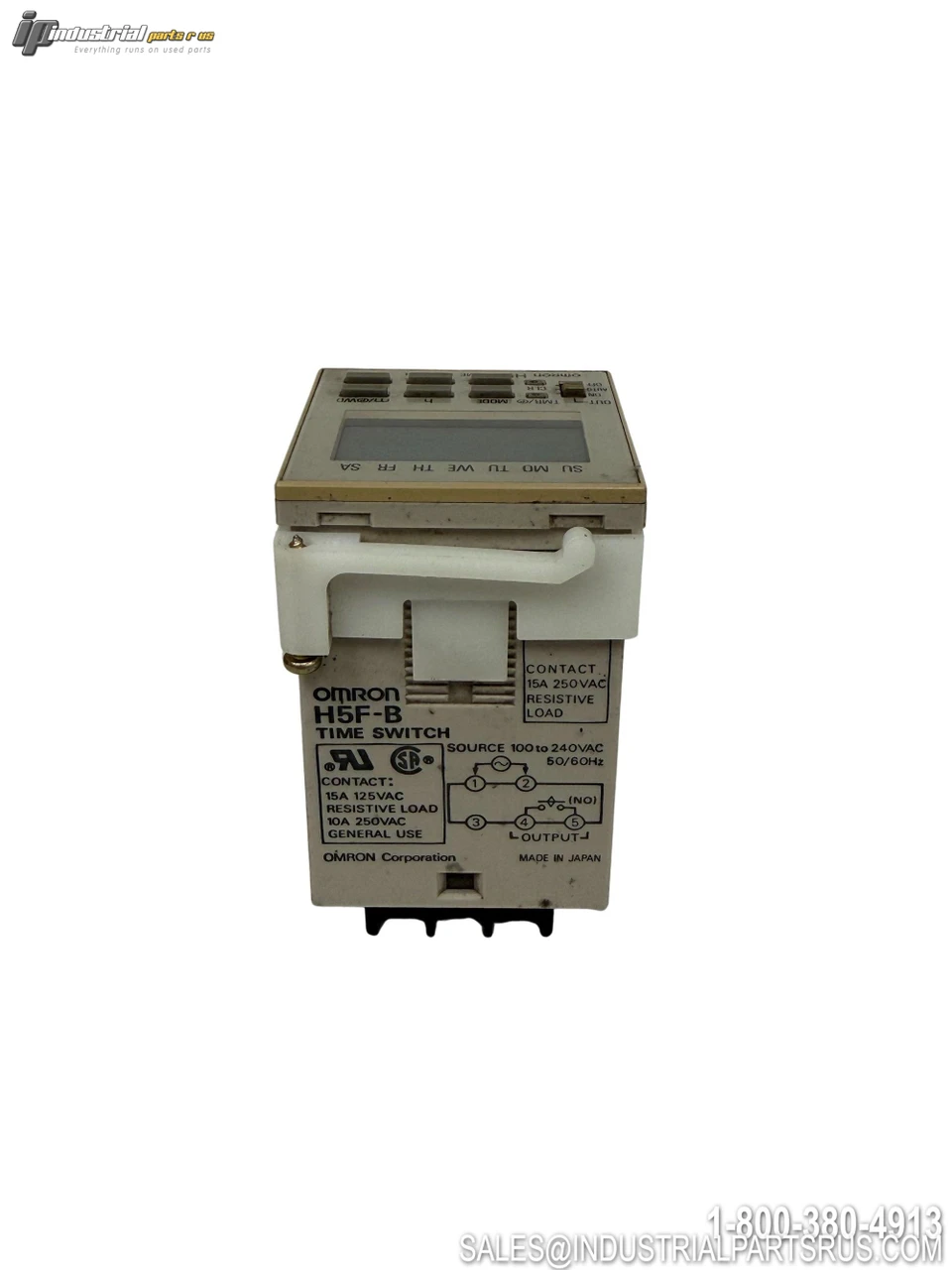

The Omron H5F-B is a 1/16 DIN (48×48 mm) Digital Daily Time Switch designed for precise daily and weekly ON/OFF scheduling in industrial and commercial control panel applications. It features a 7-segment LCD display, memory backup via lithium battery, six operating timer modes, and supports up to 12 ON/OFF operations per day (or 24 in pulse-output mode) across a full 24h×7-day schedule. The H5F-B is a flush-panel-mount model supplied with the Y92F-30 flush mounting adapter and accepts a wide supply voltage range of 100 to 240 VAC at 50/60 Hz.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Model / Part Number | H5F-B |
| Product Type | Digital Daily Time Switch (Timer) |
| Series | H5F |
| Supply Voltage (AC) | 100 to 240 VAC (110V / 120V / 200V / 208V / 220V / 230V), 50/60 Hz |
| Power Consumption | Approx. 2.4 VA at 264 VAC |
| Output Type | SPST-NO (1 Form A), no-voltage relay contact output |
| Contact Rating (AC) | 15 A @ 250 VAC (resistive load) |
| Contact Rating (DC) | 10 A @ 24 VDC (resistive load) |
| Number of Outputs | 2 (SPST-NO relay contacts) |
| Time Range | 24 hours × 7 days |
| Max ON/OFF Operations | 12 per day (timer mode); 24 per day (pulse-output mode) |
| Pulse Width Range | 1 to 59 s (1-second steps) or 1 to 60 min (1-minute steps) |
| Operating Modes | Timer ON/OFF; Pulse-output; Forced ON/OFF; Override & auto return; Partial operation on specified day; Holiday setting (6 modes) |

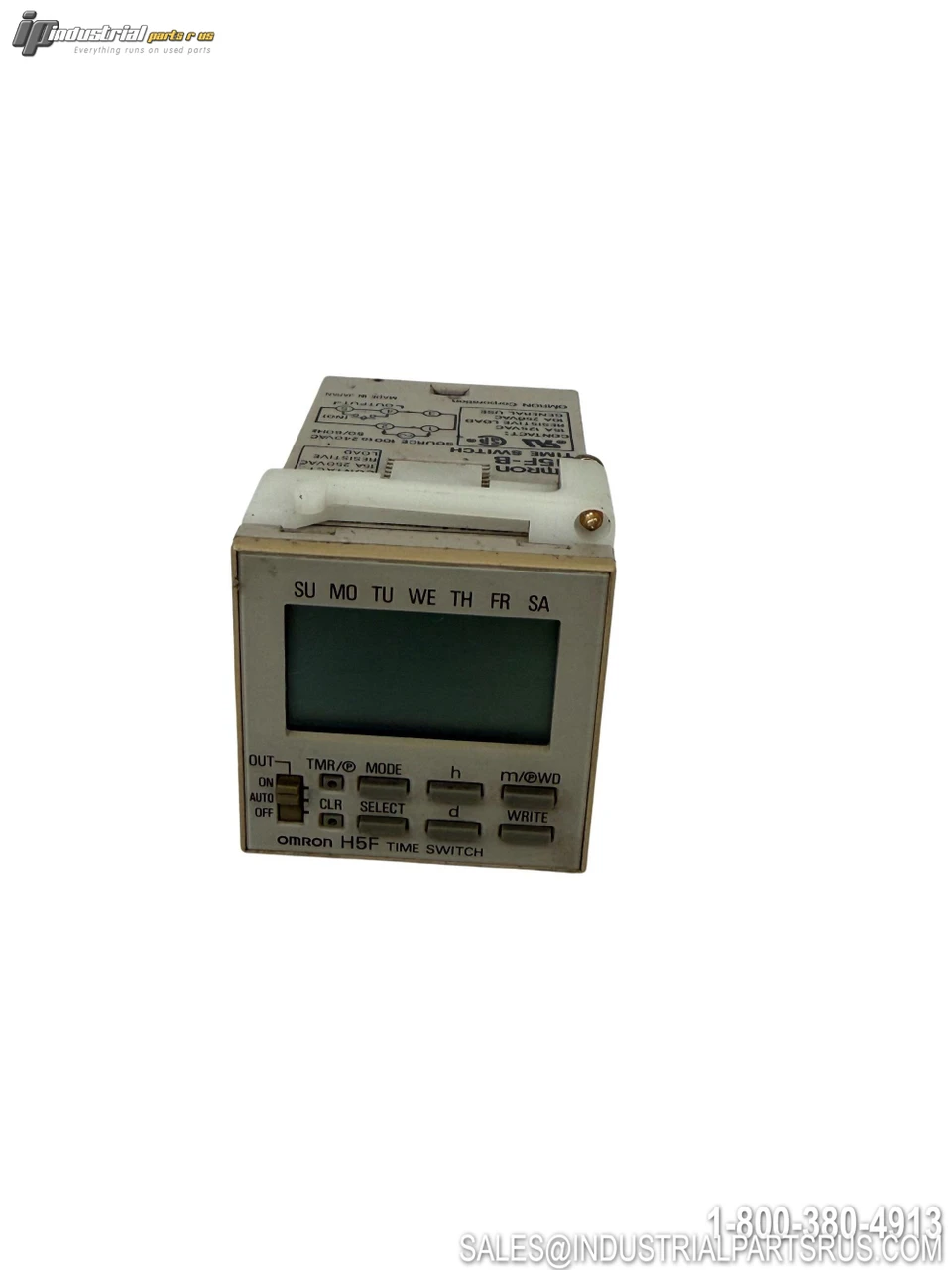

| Display | Positive 7-segment LCD, 8 mm character height, day/hours/minutes (no backlight) |
| Panel Language | English |
| Time Display Format | 12-hour (AM/PM) or 24-hour selectable |
| Accuracy / Total Error | ±0.01% ±0.05 s max. |
| Monthly Time Difference | ±15 s (at 25°C) |
| Memory Backup (Lithium Battery) | Continuous use: 5 years min. (at 25°C); Power-interruption rate 50%: 10 years min. (at 25°C) |
| Insulation Resistance | 100 MΩ min. |
| Dielectric Strength | 2,000 VAC, 50/60 Hz for 1 min (supply to output/non-current-carrying parts); 1,000 VAC for 1 min (between non-continuous contacts) |
| Mounting Type | Flush panel mount (door mounting); supplied with Y92F-30 flush mounting adapter |
| DIN Size | 1/16 DIN (48 × 48 mm) |
| Panel Cutout | 45 mm × 45 mm |
| Recommended Panel Thickness | 1 to 5 mm |
| Color | Light gray |
| Connection Type | M3.5 screw terminals |
| Applicable Wire | 600 V vinyl-insulated, solid or twisted copper, 14–24 AWG, 2 wires max. per terminal |
| Terminal Tightening Torque | 0.98 to 1.17 N·m |
| Recommended Fuse | T2A, 250 VAC, time-delay, low breaking capacity |
| Weight (Approx.) | 115 g |
| Standards | EN61010-1, EN/IEC 61326-1, RoHS Compliant |
