Product Description

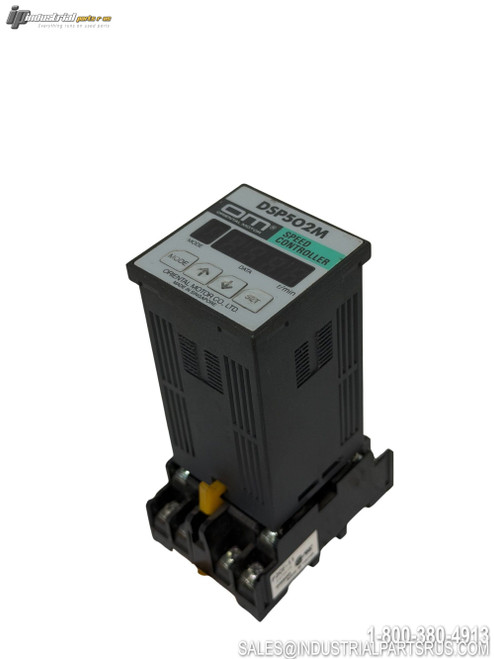

The Oriental Motor DSP502M is a discontinued AC motor speed controller designed for use with Oriental Motor's single-phase induction motors in the 6W to 40W power range. Operating at 200VAC, 50/60Hz, the unit mounts via an 11-pin relay socket base (Omron P2CF-11 compatible) and provides phase-control-based variable speed regulation. It features a 7-segment LED rotation speed display and integrated electromagnetic brake interlock and free functions suitable for a wide range of light-duty industrial automation applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Oriental Motor |
| Model / Part Number | DSP502M |
| Product Type | AC Motor Speed Controller |
| Input Voltage | 200 VAC |
| Frequency | 50/60 Hz |
| Compatible Motor Power Range | 6W – 40W |
| Phase | Single Phase |
| Mounting / Socket Type | 11-Pin Relay Socket (Omron P2CF-11 compatible) |
| Speed Display | 7-Segment LED |
| Control Functions | Speed control, non-contact instantaneous stop, forward/reverse, speed switching, slow start/slow down |
| Brake Functions | Electromagnetic brake interlock, electromagnetic brake free |
| Alarm / Error Output | Yes (error detection) |
| Dimensions (L × W × H) | 55 mm × 75 mm × 120 mm |
| Net Weight | 270 g |
| Manufacturer Status | Discontinued |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686208
Manufacturer Oriental Motor
Part Number DSP502M
Shelf F-10
Input Voltage 200V AC
Model DSP502M
MPN DSP502M
Type AC Drive
