Product Description

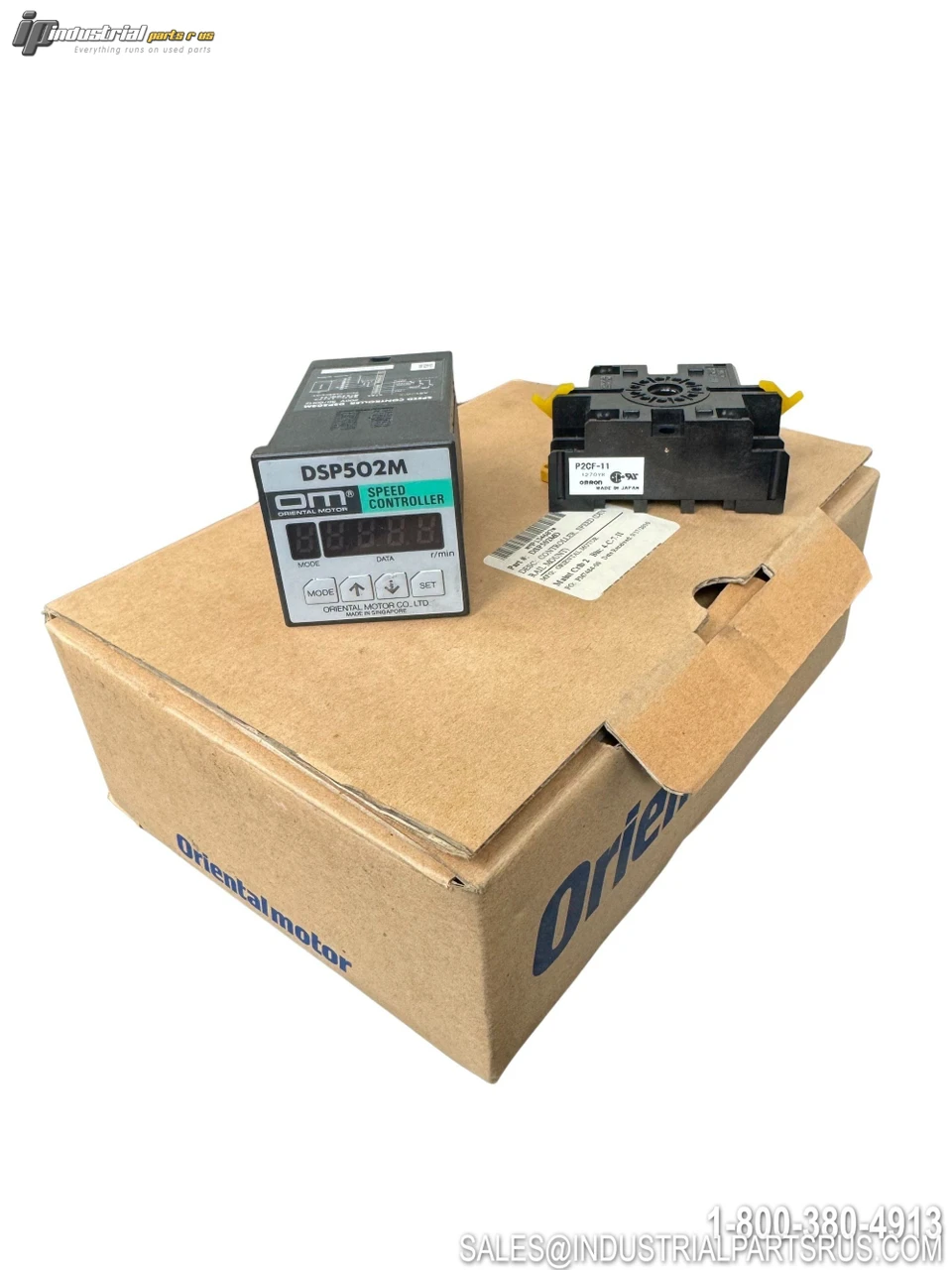

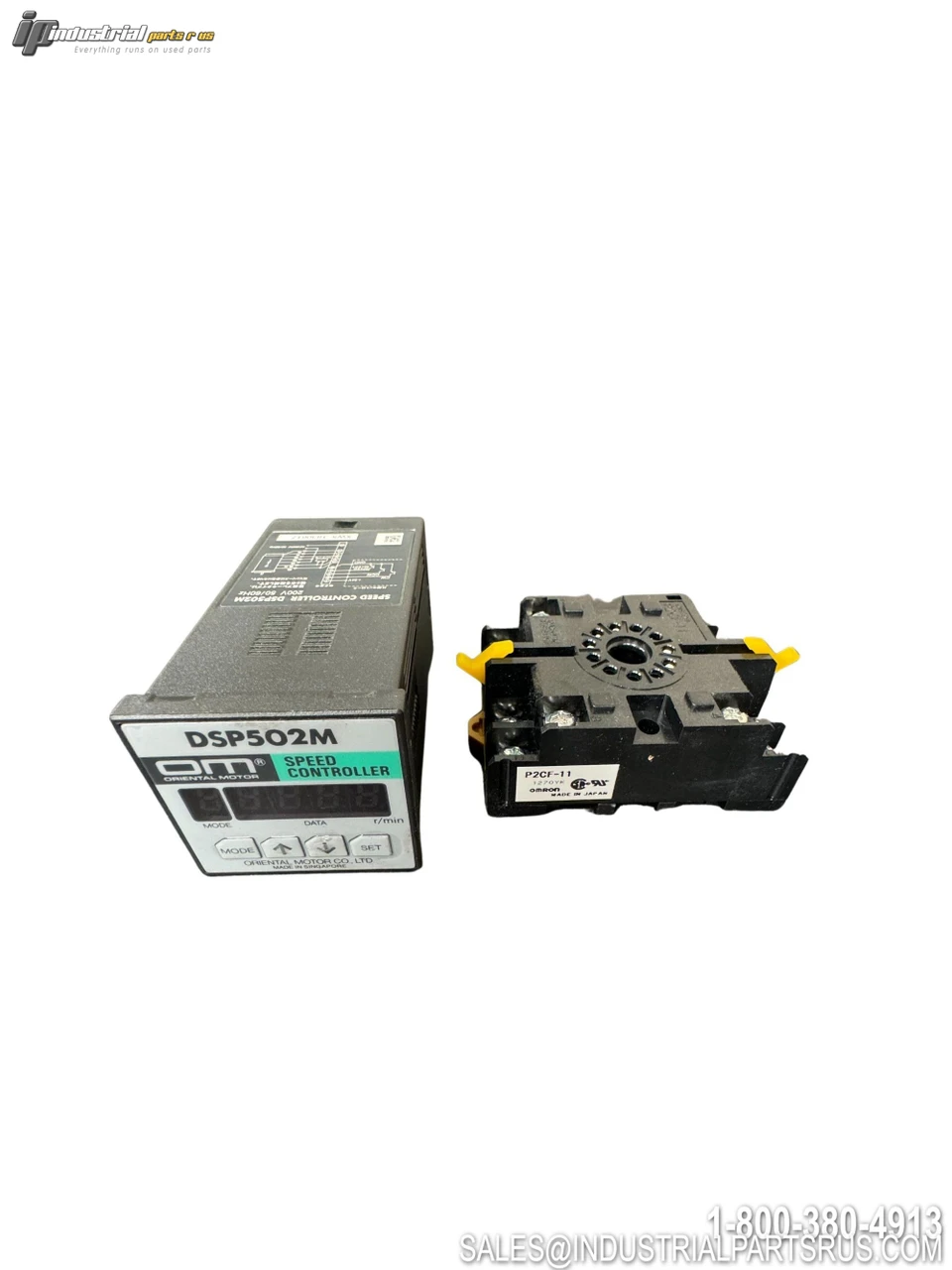

The Oriental Motor DSP502MD is a Speed Control Pack from the MSD Series, designed for use with single-phase 200V AC speed control motors rated from 6W to 40W. It features non-contact speed control with a built-in digital tachometer, photocoupler signal inputs for CW/CCW/Speed Select control, and DIN rail mounting for convenient installation in control panels or switchboards. Speed can be set digitally in 10 r/min increments across a wide range of 90 to 1400 r/min (50Hz) or 90 to 1700 r/min (60Hz).
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Oriental Motor |
| Model / Part Number | DSP502MD |
| Product Series | MSD Series |
| Product Type | Speed Control Pack |
| Power Supply (Input Voltage) | Single-Phase 200V ±10% |
| Input Frequency | 50/60 Hz |
| Applicable Motor Output | 6W, 15W, 25W, 40W |
| Control Power Supply | DC 24V ±10%, 0.1A minimum |
| Control Input Type | Photocoupler input (CW / CCW / SPEED SELECT) |
| External Contact Rating | DC 26.4V, 15mA |
| Speed Control Range (50 Hz) | 90 – 1400 r/min |
| Speed Control Range (60 Hz) | 90 – 1700 r/min (90–1600 r/min for 6W) |
| Speed Setting Method | Digital, settable in 10 r/min increments |
| Display | 7-Segment LED (rotation speed display) |
| Mounting Type | DIN Rail |
| DIN Rail Width | 35 mm |
| Phase | Single-Phase |
| Functions | Speed Control, Non-contact Instantaneous Stop, CW/CCW, Speed Switching, Slow Start/Slow Down, Abnormal Stop |
| Electromagnetic Brakes / Clutches | No |
| Environment | Standard |
| Product Status | End of Production (Order cutoff: January 29, 2027) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture Japan
Manufacturer Oriental Motor
Part Number DSP502MD
Shelf K-36
Input Voltage Single-Phase 200V ±10%
Model DSP502MD
MPN DSP502MD
Type Variable Frequency Drive
