Product Description

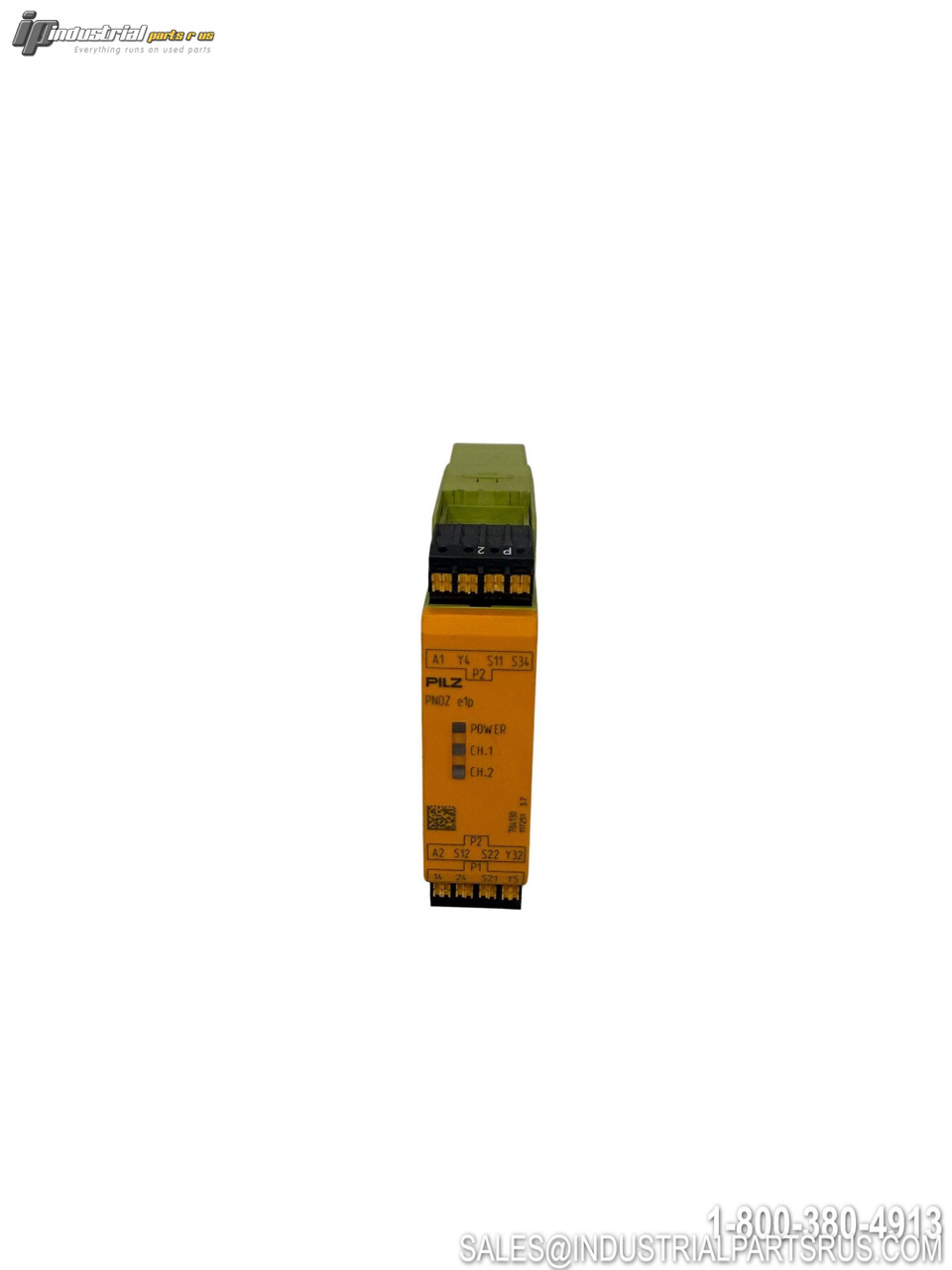

The Pilz 784130 (PNOZ e1p C 24VDC 2so) is a standalone PNOZelog series safety relay designed for single or dual-channel monitoring of E-STOP circuits, safety gates, light beam devices, and limit switches. It features plug-in spring-loaded terminals for easy installation and achieves up to SIL 3 / PL e / Category 4 safety performance per EN ISO 13849-1 and EN 62061. The relay supports both automatic and monitored manual start modes, self-test functionality, and detection of shorts across contacts, making it suitable for demanding machine safety applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Pilz |
| Model / Part Number | 784130 |
| Product Name | PNOZ e1p C 24VDC 2so |
| Product Series / Family | PNOZelog |
| Supply Voltage | 24V DC (19.2–30V DC range, 24V DC nominal) |
| Voltage Type | DC |
| Rated Current | 2A |
| Number of Inputs | 2 (1 x Digital Input 24VDC / 5mA) |
| Input Wiring | 1/2-channel, with or without detection of shorts across contacts |
| Number of Safety Outputs | 2 (instantaneous, undelayed) |
| Auxiliary Output | 1 (in SC technology) |
| Total Outputs | 5 |
| Number of Test Pulse Outputs | 2 |
| Safety Integrity Level | SIL 2 (Cat.2 / PLd) / SIL 3 (Cat.4 / PLe) |
| Performance Level | PL d / PL e per EN ISO 13849-1 |
| Safety Category | Category 2 / Category 4 |
| Stop Category | 0 |
| PFH (SC output; 1-ch. monitored start) | 1.34E-08 |
| PFH (SC output; 2-ch. monitored start) | 3.44E-09 |
| Start Modes | Automatic / Monitored Manual Reset |
| Application Options | E-STOP monitoring, Safety gate monitoring, Limit switch monitoring, Light beam device monitoring Type 2 & Type 4 |
| Connection Type | Plug-in / Detachable spring-loaded terminals |
| Mounting Type | DIN Rail |
| IP Rating | IP40 |
| Ambient Temperature | -10°C to +55°C |
| Width | 22.5 mm |
| Height | 94 mm |
| Depth | 121 mm |
| Net Weight | 120 g |
| Gross Weight | 135 g |
| Display / Indicators | Power LED, CH.1 LED, CH.2 LED |
| Product Standard | EN 60947-5-1 |
| Applicable Standards | EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1, VDE 0116, DIN V VDE 801-1/A1 |
| Certifications | CE, cULus, EAC (Eurasian), TÜV, CCC |
| GTIN | 4046548008920 |
