Product Description

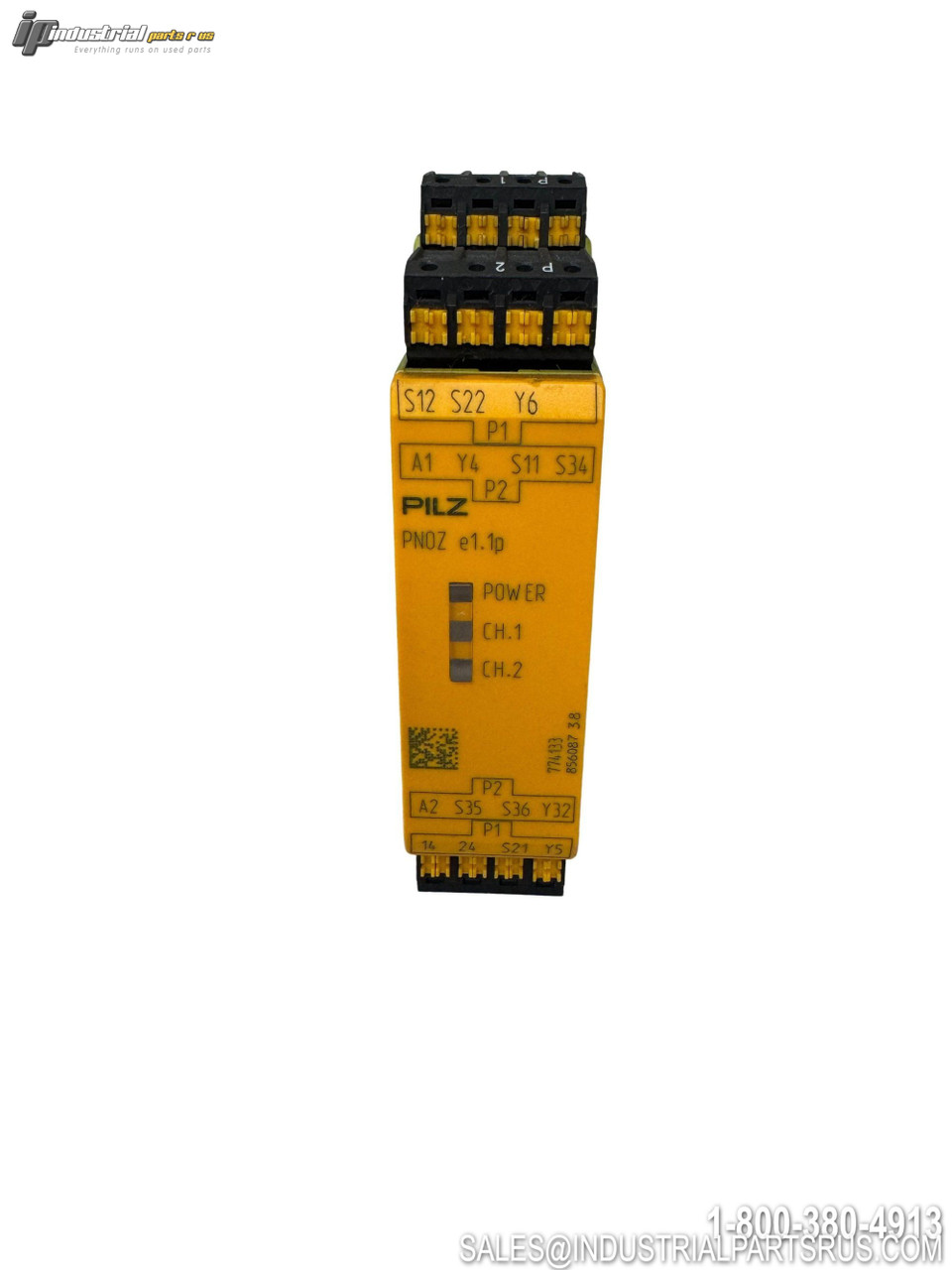

The Pilz PNOZ e1.1p is a compact safety relay from the PNOZelog series designed for monitoring emergency stop circuits, safety gates, and light barriers. This standalone safety relay features 1/2-channel wiring capability with or without detection of shorts across contacts and provides 2 safety outputs plus 1 auxiliary output in semiconductor technology.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Pilz |
| Model/Part Number | PNOZ e1.1p |
| Order Number | 774133 |
| Series | PNOZelog |
| Supply Voltage | 24 VDC |
| Input Type | 1/2-channel wiring with/without detection of shorts across contacts |
| Output Configuration | 2 safety outputs + 1 auxiliary output |
| Output Technology | Semiconductor technology |
| Contact Current Rating | 6A, 10A |
| Contact Form | 2SO |
| Start Mode | Automatic/monitored start |
| Width | 22.5 mm |
| Height | 94.0 mm |
| Depth | 121.0 mm |
| Terminal Type | Plug-in screw terminals |
| Operating Temperature | -10°C to +55°C |
| Mounting | DIN Rail (35 mm) |
| Applications | E-STOP monitoring, safety gates, light barriers |
| Standards Compliance | EN 60947-5-1, EN 60204-1, VDE 0113-1 |
| Net Weight | 130 g |
| Gross Weight | 145 g |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style DIN Rail
Current Rating 6A, 10A
Application E-Stop Monitoring
Manufacturer Pilz
Enclosure Type Industrial
Part Number PNOZ E1.1P
Shelf K-70
Model PNOZ E1.1P
Coil Voltage 24VDC
MPN PNOZ E1.1P
Type Safety Relay
