Product Description

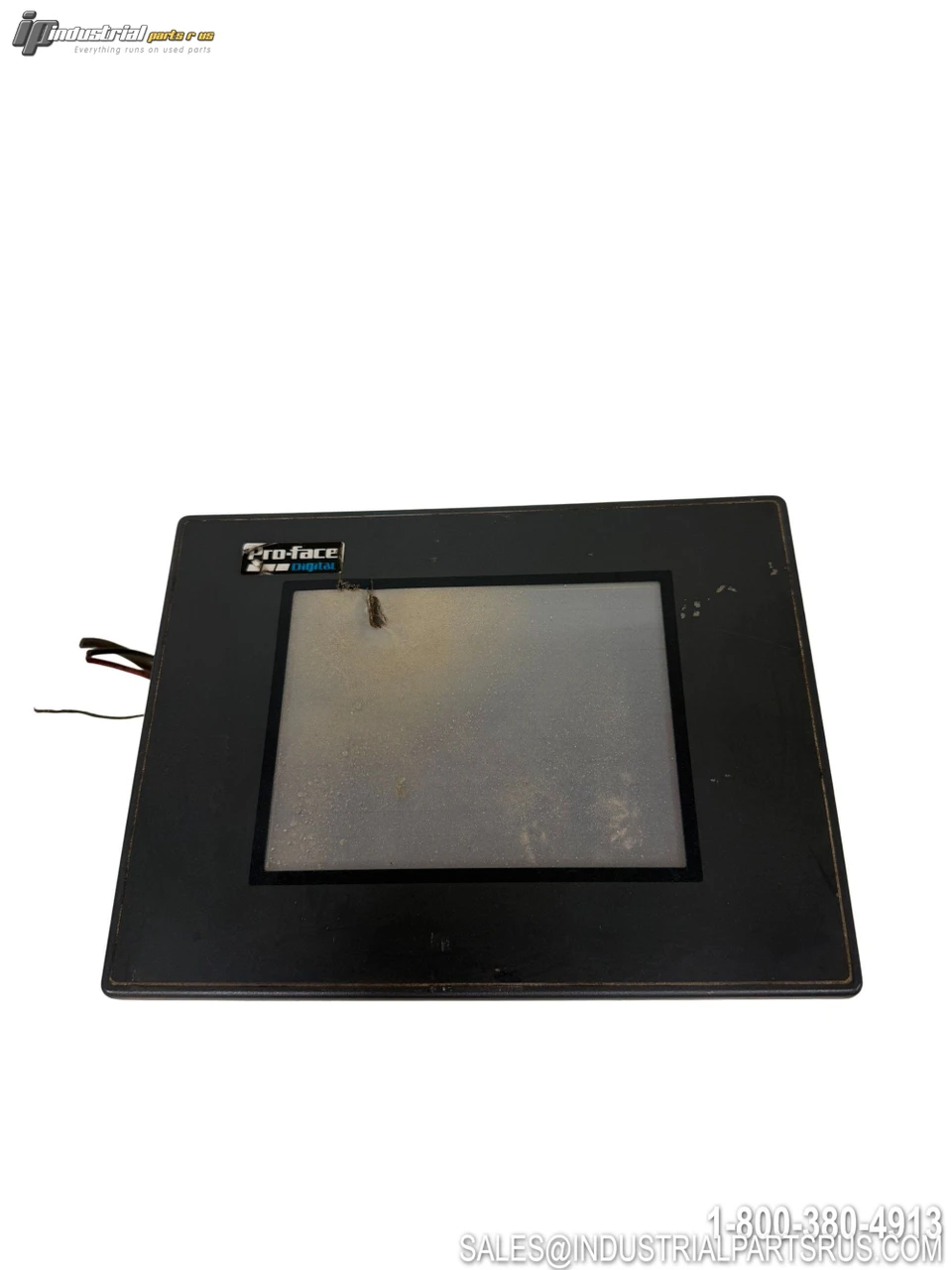

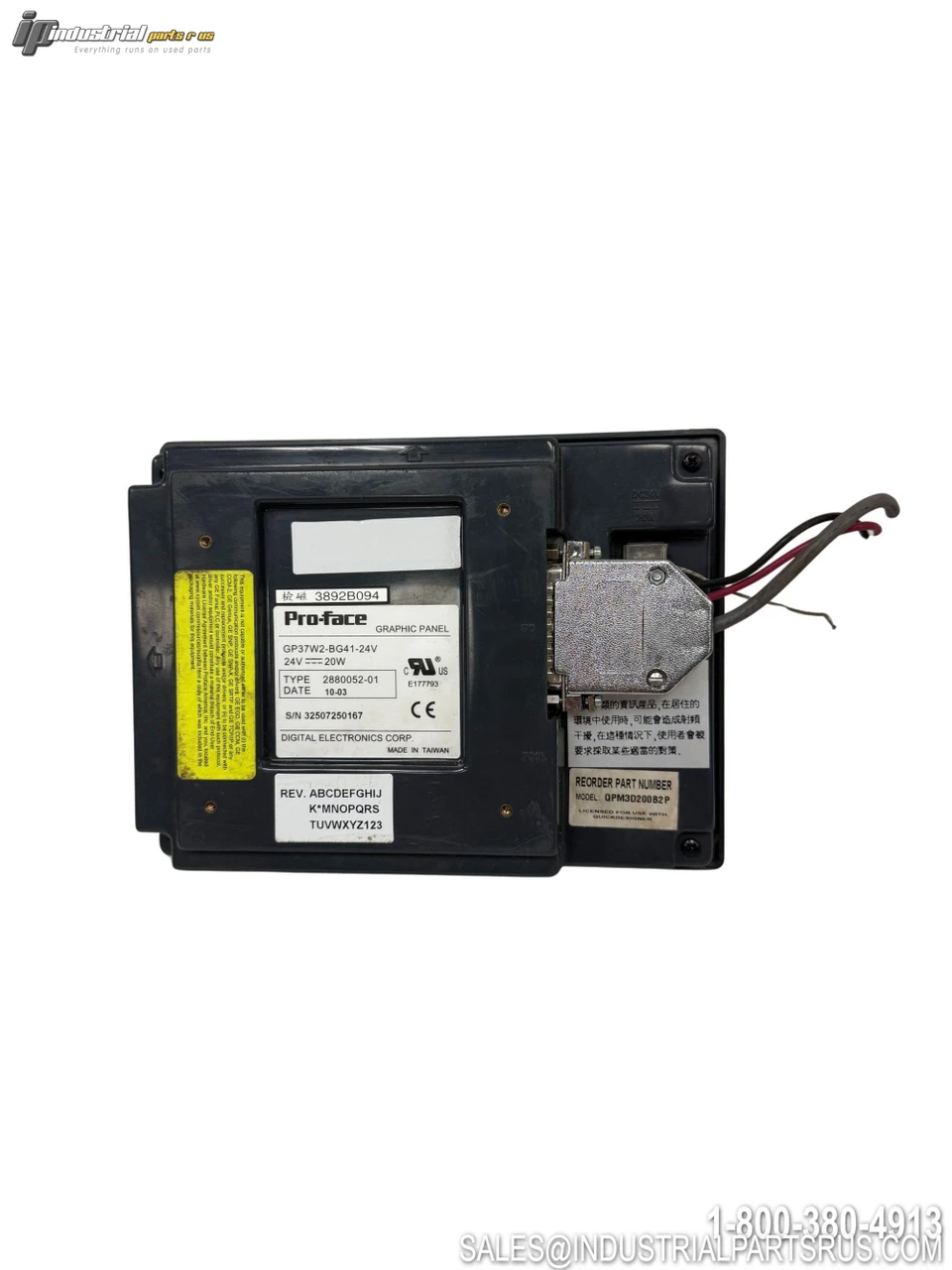

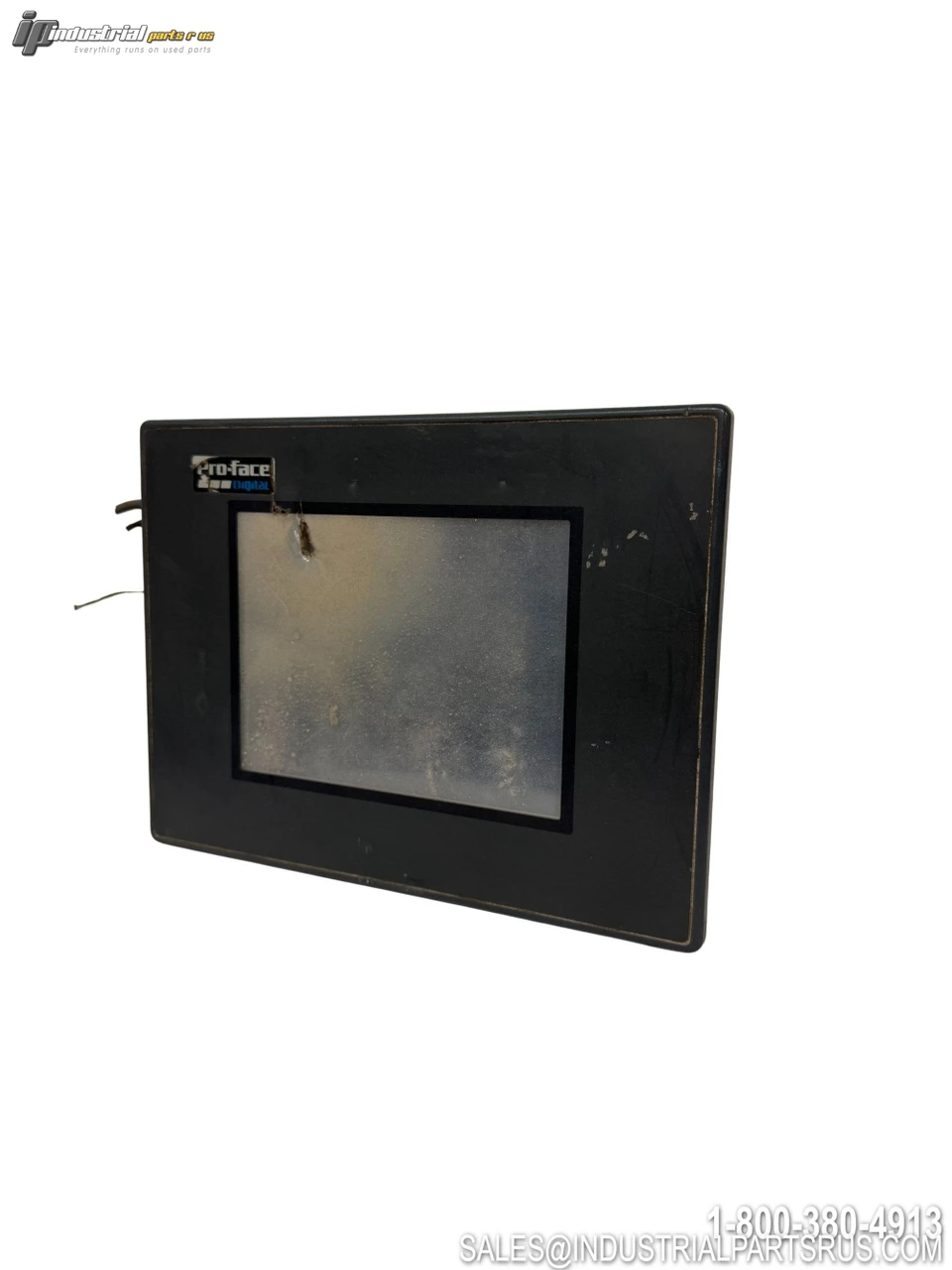

The Pro-Face GP37W2-BG41-24V (GP-37W2B) is a 5.7-inch industrial HMI touch screen operator interface from the GP-37W2 Series. It features a blue-mode monochrome LCD display with 320x240 pixel resolution and is powered by 24VDC, making it suitable for a wide range of industrial automation applications including machine monitoring, tank level display, on/off status, and event management. The unit communicates via RS-232C/RS-422 serial ports and is supported by Pro-face's GP-PRO 03 HMI development software.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Pro-Face |
| Model / Part Number | GP37W2-BG41-24V |
| UL Registration Model | 2880052-01 |
| Series | GP-37W2 Series (GP-37W2B) |
| Product Type | HMI Touch Panel / Operator Interface |
| Display Size | 5.7 Inch |
| Display Type | Blue-Mode Monochrome LCD (8-shade) |
| Display Resolution | 320 x 240 pixels (QVGA) |
| Contrast Adjustment | 8 levels, adjustable via touch panel |
| Backlight Type | CCFL (Service life: 25,000 hrs at 25°C continuous) |
| Touch Panel Type | Resistive Film, 1 or 2-point touch, 16x12 keys/screen |
| Input Voltage (Rated) | DC 24V (Range: DC 20.4V to DC 27.6V) |
| Power Consumption | 20W or less |
| Allowable Voltage Drop | 2ms or less |
| Insulation Resistance | 20 MΩ or higher at DC 500V |
| Voltage Endurance | AC 1000V 10mA for 1 minute |
| Communication Ports | RS-232C / RS-422 (Asynchronous, 2400 to 115.2 Kbps) |
| Serial Data Format | Data: 7 or 8 bits; Stop: 1 or 2 bits; Parity: None/Odd/Even |
| Tool/Barcode Port | Program download port (doubles as barcode reader input) |
| Backup Memory | 96KB (Lithium battery-backed) |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 20% RH to 85% RH (no condensation) |
| Atmospheric Pressure | 800 to 1114 hPa (up to 2000m elevation) |
| ESD Immunity | 6kV (IEC 61000-4-2 Level 3) |
| Enclosure Rating | IP65f (JEM 1030), NEMA 250 Type 4X/12 (front face) |
| Cooling Method | Natural Air Circulation |
| External Dimensions (W x H x D) | 207mm x 157mm x 58mm (8.17" x 6.18" x 2.28") |
| Weight | 1.1 kg (2.4 lbs) or less |
| Grounding Requirement | 100 Ω or less |
| Programming Software | GP-PRO 03 |
| Certifications | UL, cUL (CSA), CE |
| Industrial Classification | Class A Industrial Device |
| Manufacturer | Pro-face (Schneider Electric) |
| End of Sales | September 30, 2013 (Discontinued) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Pro-face
Enclosure Type IP65f / NEMA 4X, 12 (front face)
Part Number GP37W2-BG41-24V
Controller Platform GP-37W2B
Shelf D-15
Model GP37W2-BG41-24V
MPN GP37W2-BG41-24V
Type Touch Panel
