Product Description

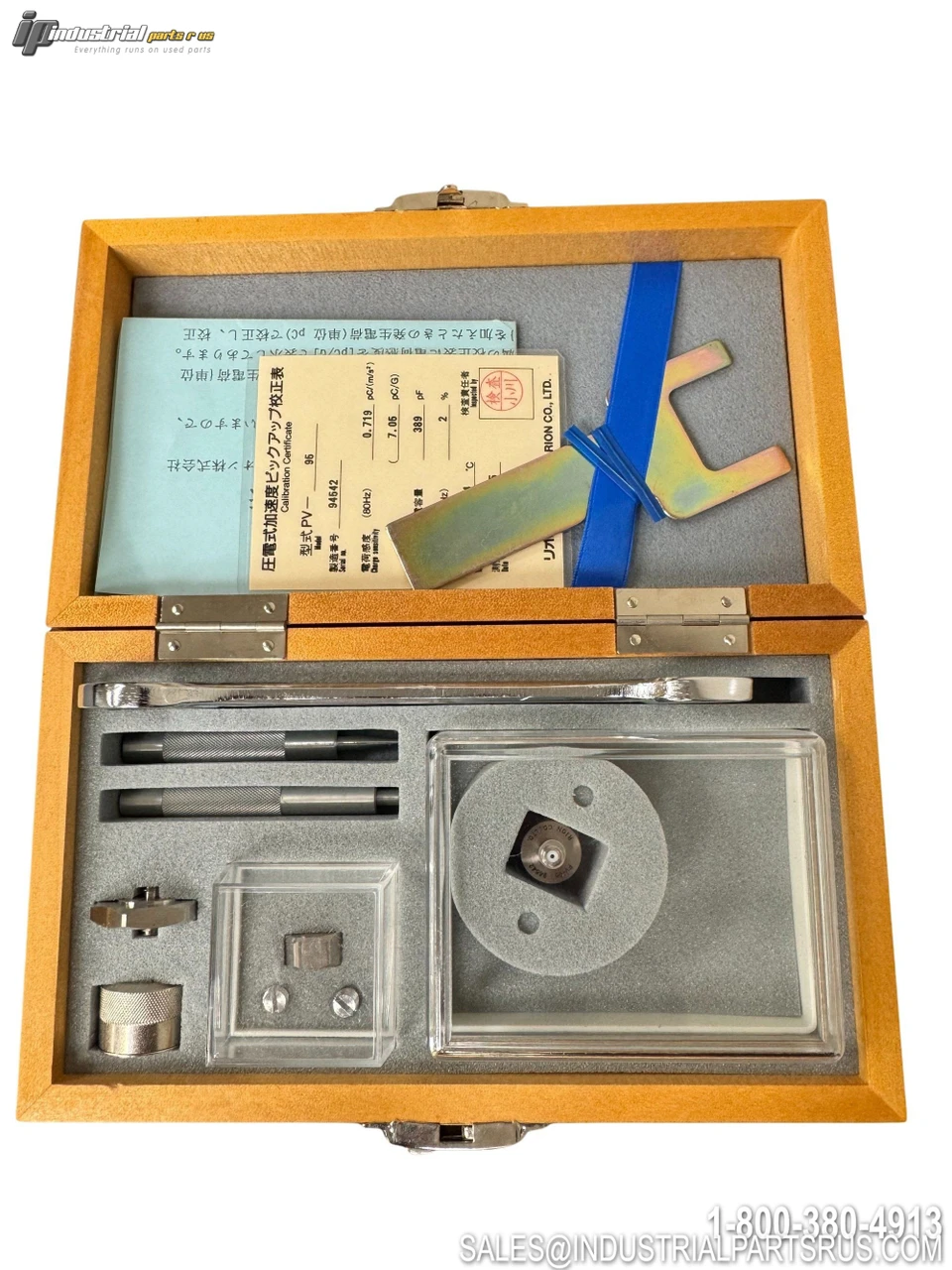

The Rion PV-95 is a high-sensitivity, shear-type piezoelectric accelerometer designed for precision vibration measurement of large structures and low-level vibration environments. Part of Rion's PV Series, it features a titanium case, top-mounted connector, and a broad frequency range of 1 to 10,000 Hz (±1 dB), making it suitable for structural monitoring, machinery diagnosis, and seismic applications. It connects to a charge amplifier and is supplied with a VP-51A (2 m) shielded cable.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Rion |
| Model / Part Number | PV-95 |
| Manufacturer | Rion Co., Ltd. |
| Series | PV Series |
| Type | High-Sensitivity Piezoelectric Accelerometer |
| Sensing Principle | Shear |
| Output Type | Charge Output |
| Mass | 9 g |
| Charge Sensitivity | 0.714 pC/(m/s²) (representative value at 80 Hz) |
| Vibration Frequency Range (±1 dB) | 1 to 10,000 Hz |
| Mounting Resonance Frequency | Approx. 36 kHz |
| Temperature Range for Use | -50°C to +160°C |
| Case Material | Titanium |
| Connector Location | Top-mounted |
| Connecting Equipment | Charge Amplifier |
| Supplied Cable | VP-51A (2 m) |
| Dimensions | φ13 × 15.5 mm (H) |
| Standard Mounting | M6 screw (depth 4.5 mm) |
| Transverse Sensitivity | 5% or less |
| Application | Large structures, low-level vibration, structural monitoring, seismometry |
| Calibration Reference Frequency | 80 Hz (per ISO 5347) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type Analog
Sensor Type Accelerometer
Manufacturer Rion
Part Number PV-95
Shelf K-36
Model PV-95
MPN PV-95
Type Pressure Sensor
