Product Description

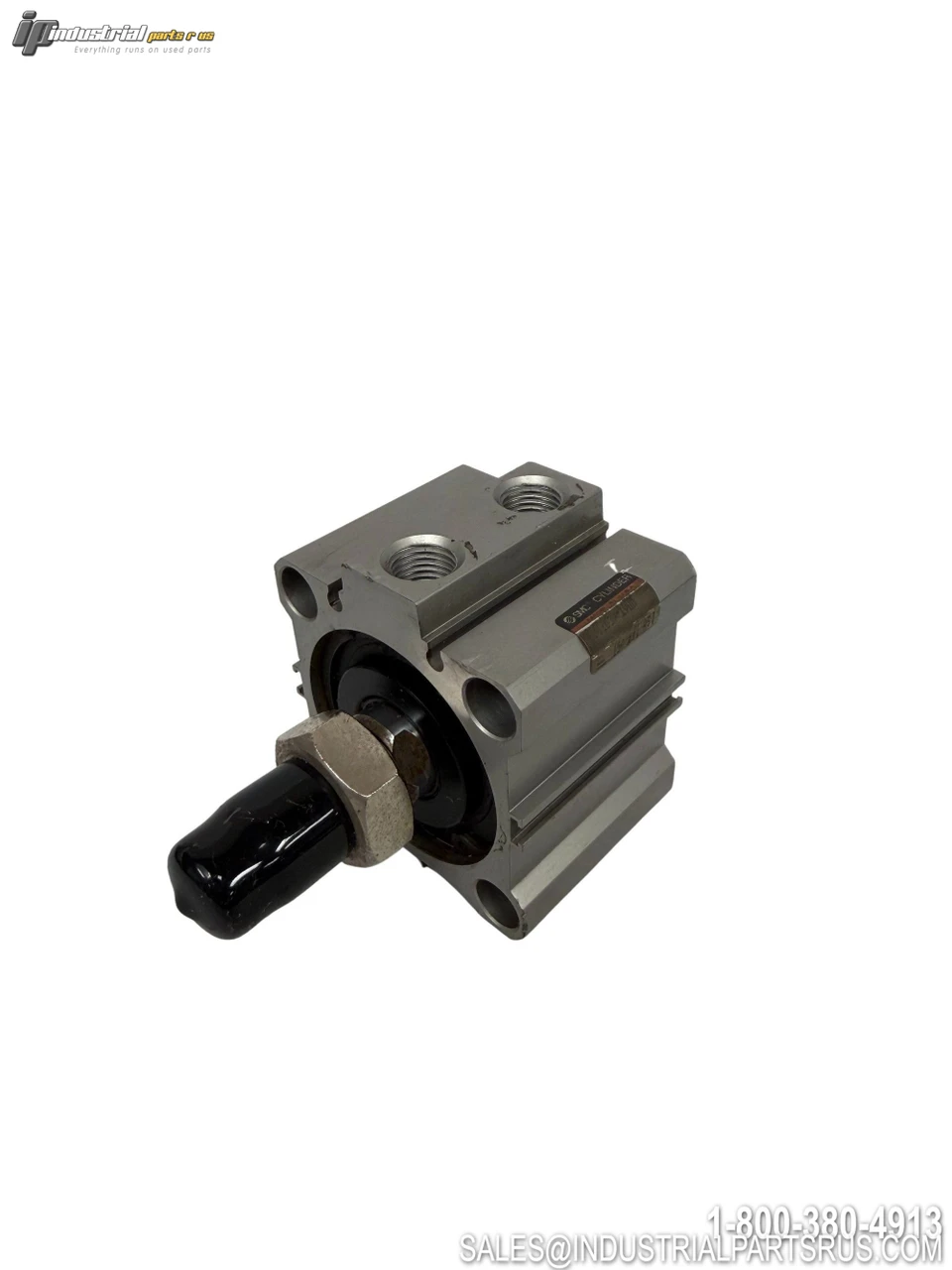

The SMC CDQ2B50-10DM is a double-acting, single-rod compact pneumatic cylinder from the CQ2 series, featuring a 50mm bore and 10mm stroke. It includes a built-in magnet (CDQ2 prefix) for use with compatible auto switches, through-hole (B-type) mounting, and a male-threaded rod end. This cylinder belongs to SMC's space-saving CQ2 compact body design, which is considerably shorter than conventional tie-rod cylinder designs and suitable for a wide range of industrial automation applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model / Part Number | CDQ2B50-10DM |
| Series | CQ2 |
| Product Type | Compact Cylinder (Pneumatic) |
| Bore Diameter | 50 mm |
| Stroke Length | 10 mm |
| Cylinder Action | Double Acting |
| Rod Type | Single Rod |
| Rod End Thread | Male Thread (M body option) |
| Mounting Style | Through-Hole, Standard (B-type) |
| Built-in Magnet | Yes (D-prefix, CDQ2 series) |
| Auto Switch Groove | None (No Z-suffix; no switch groove) |
| Auto Switch Included | No Switch |
| Port Thread Type | G 1/4 (Rc/M thread, 32–100mm bore) |
| Maximum Operating Pressure | 1.0 MPa (145 PSI) |
| Minimum Operating Pressure | 0.1 MPa (14.5 PSI) |
| Maximum Operating Temperature | +70°C (+158°F) |
| Minimum Operating Temperature | -10°C (+14°F) |
| Fluid / Media | Air (Compressed) |
| Cylinder Tube Material | Stainless Steel (Hard Anodized) |
| Piston Material | Carbon Steel (Chromated) |
| Bushing Material | Aluminum Bearing Alloy |
| Body / Cover Material | Aluminum Alloy Casting (Chromated, Plated for ø50+) |
| Seal Material | NBR |
| Lubrication | Not Required (Non-lube) / Air or oil lubricated |
| Lube-Retainer | Without Stable Lubrication Function |
| Mounting Bolt | None (Optional; special long bolt available) |
| Manufacturer | SMC Corporation |
