Product Description

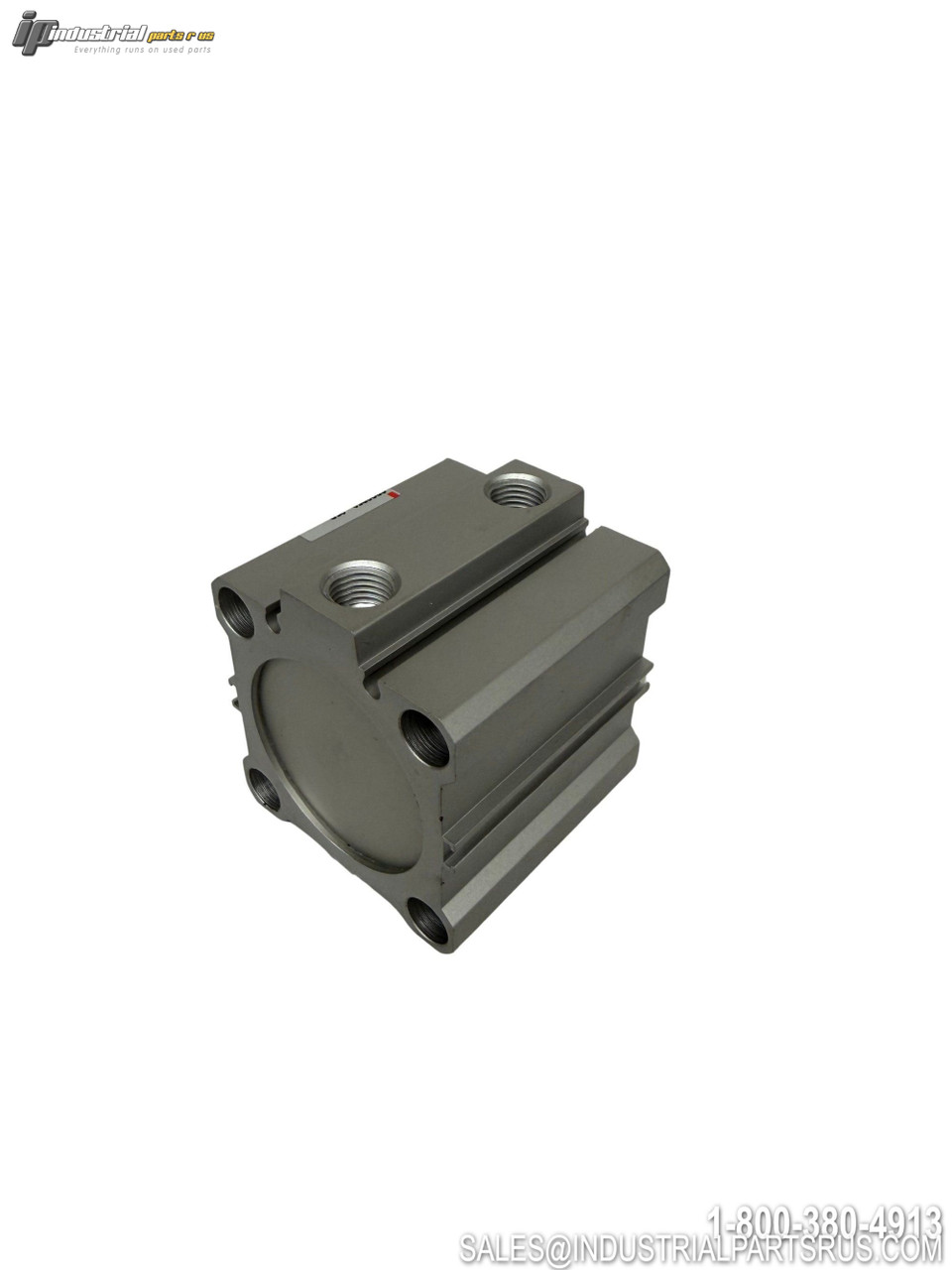

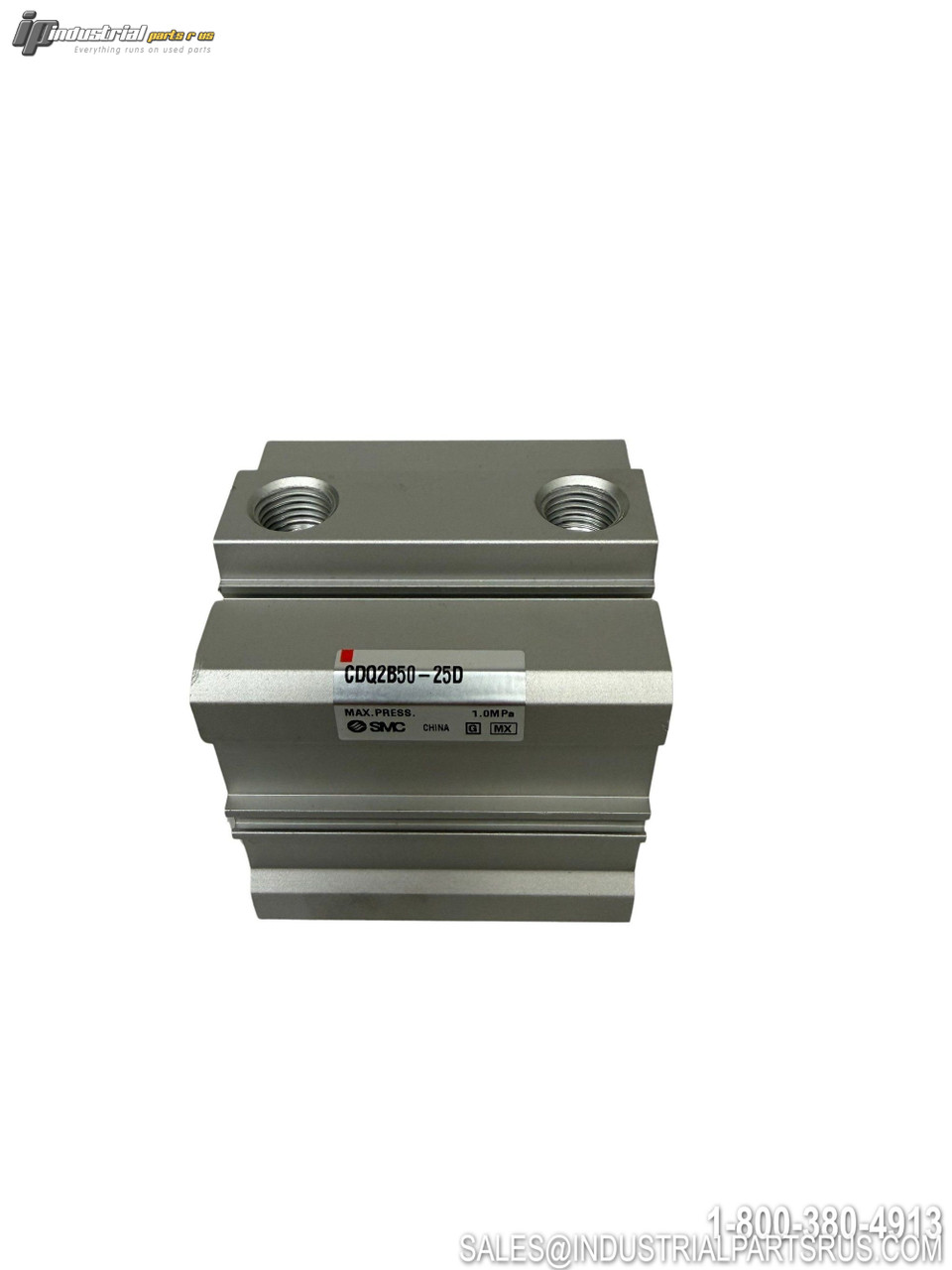

The SMC CDQ2B50-25D is a double-acting, single-rod compact pneumatic cylinder from the CQ2 Series, featuring a 50mm bore and 25mm stroke. It uses through-hole (standard) mounting style with a built-in magnet for optional auto switch compatibility on up to 4 surfaces. This space-saving cylinder is designed for a wide range of industrial automation applications requiring reliable, compact linear actuation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model / Part Number | CDQ2B50-25D |
| Series | CQ2 |
| Cylinder Type | Compact Cylinder |
| Action | Double Acting |
| Rod Configuration | Single Rod |
| Bore Diameter | 50 mm |
| Stroke Length | 25 mm |
| Mounting Style | Through-Hole (Standard) – Type B |
| Built-in Magnet | Yes (D) |
| Port Thread Type | Rc / M Thread (ø32–ø100 bore: Rc or NPT or G) |
| Auto Switch Mounting Groove | 4 Surfaces (ø32–ø100 bore) |
| Max Operating Pressure | 1.0 MPa (145 PSI) |
| Min Operating Pressure | 0.05 MPa |
| Proof Pressure | 1.5 MPa |
| Fluid Temperature (Min) | -10°C |
| Fluid Temperature (Max) | 60°C |
| Fluid / Media | Air (Pneumatic) |
| Seal Material | NBR (Nitrile) |
| Cylinder Tube Material | Stainless Steel (Hard Anodized) |
| Piston Material | Carbon Steel (Chromated) |
| Bushing Material | Aluminum Bearing Alloy |
| Body / Cover Material | Aluminum Alloy Casting (Chromated, Plated – ø50+) |
| Magnet Material | Carbon Tool Steel (Phosphate Coated) |
| Replacement Seal Kit | CQ2B50-PS |
| Auto Switch | Without Auto Switch (switch-ready) |
| Manufacturer | SMC Corporation |
