Product Description

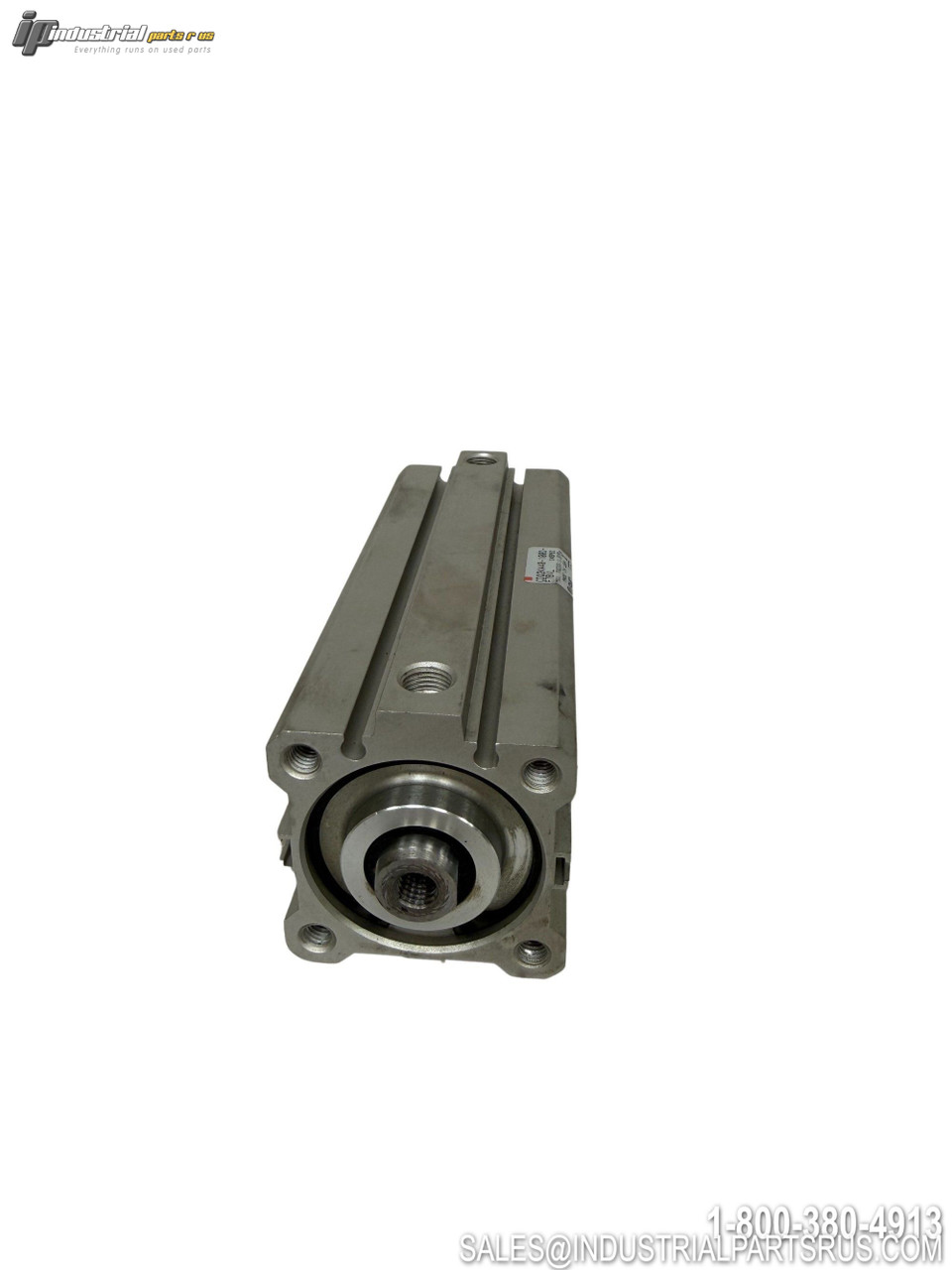

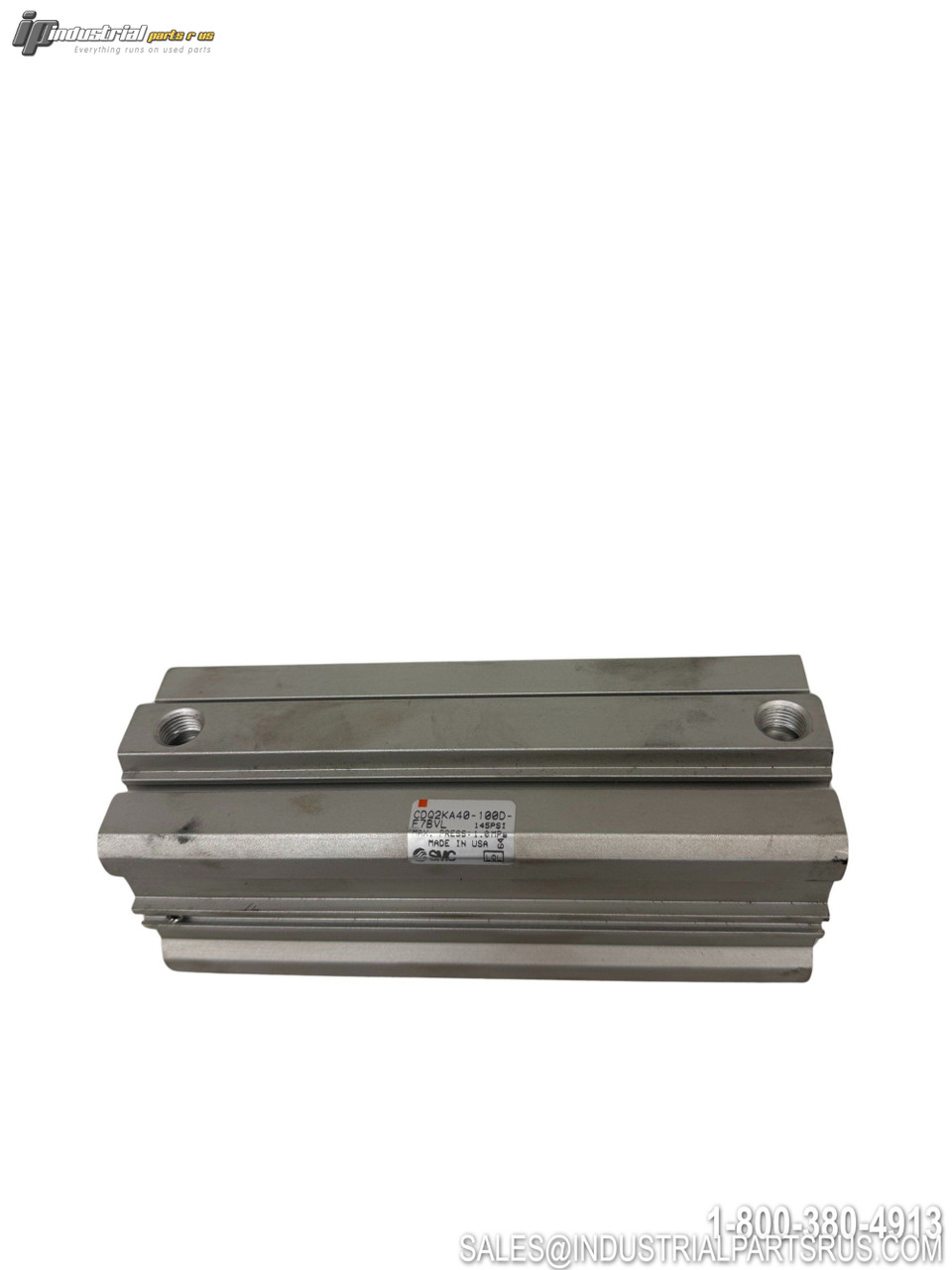

The SMC CDQ2KA40-100D-F7BVL is a compact pneumatic cylinder from the CQ2K series featuring a non-rotating piston rod design. This double-acting, single rod cylinder provides reliable linear actuation in space-constrained applications with its compact body design and magnetic piston for auto switch compatibility.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Smc |
| Model/Part Number | Cdq2ka40-100d-f7bvl |
| Series | CQ2K |
| Cylinder Type | Compact Cylinder |
| Action Type | Double Acting |
| Rod Type | Single Rod, Non-Rotating |
| Bore Diameter | 40mm |
| Stroke Length | 100mm |
| Mounting Type | Basic Type |
| Rod End | Female Thread |
| Operating Pressure | 0.05 to 1.0 MPa |
| Proof Pressure | 1.5 MPa |
| Operating Temperature | -10°C to +70°C |
| Auto Switch Compatible | Yes, Magnetic Piston |
| Port Connection | Side Port |
| Construction | Space-saving Compact Body |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Manufacturer SMC
Part Number CDQ2KA40-100D-F7BVL
Shelf K-67
Bore Diameter 40 mm
Model CDQ2KA40-100D-F7BVL
MPN CDQ2KA40-100D-F7BVL
Type Pneumatic Cylinder
