Product Description

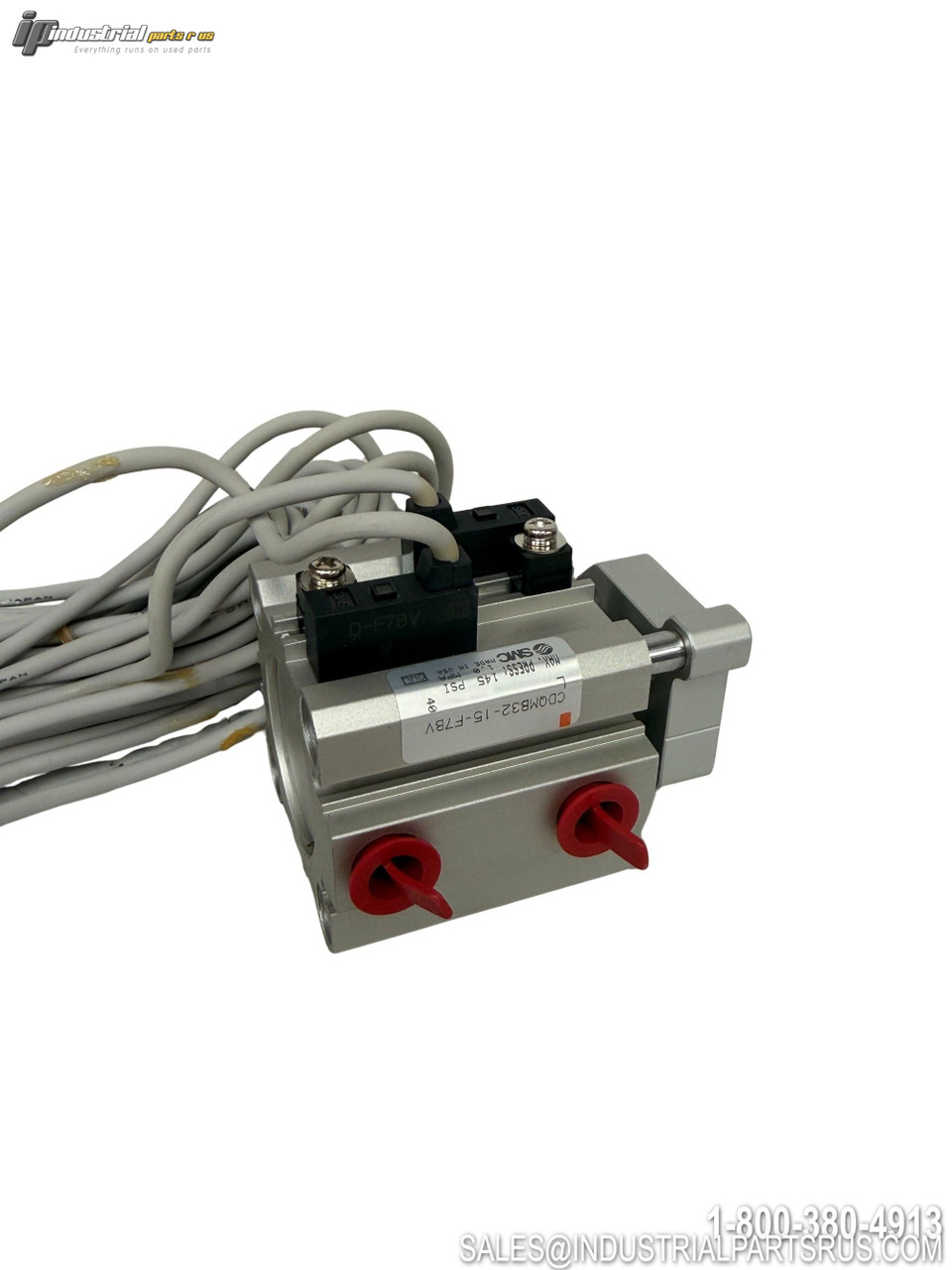

The SMC CDQMB32-15-F7BVL is a compact pneumatic cylinder from SMC's CQM series featuring an integrated guide rod design. This cylinder combines a 32mm bore with 15mm stroke length and includes the F7BVL solid state auto switch for position sensing. The guide rod construction provides excellent non-rotating accuracy for precise linear motion applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | CDQMB32-15-F7BVL |
| Product Type | Compact Guide Rod Cylinder |
| Series | CQM |
| Bore Diameter | 32mm |
| Stroke Length | 15mm |
| Cylinder Action | Double Acting |
| Auto Switch | F7BVL Solid State |
| Switch Voltage | DC24V (DC10~28V) |
| Switch Type | 2-Wire, Perpendicular Mount |
| Mounting Type | Through-hole |
| Construction | Guide Rod Type |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer SMC
Part Number CDQMB32-15-F7BVL
Shelf K-65 tub-2
Bore Diameter 32 mm
Model CDQMB32-15-F7BVL
MPN CDQMB32-15-F7BVL
Type Pneumatic Cylinder
