Product Description

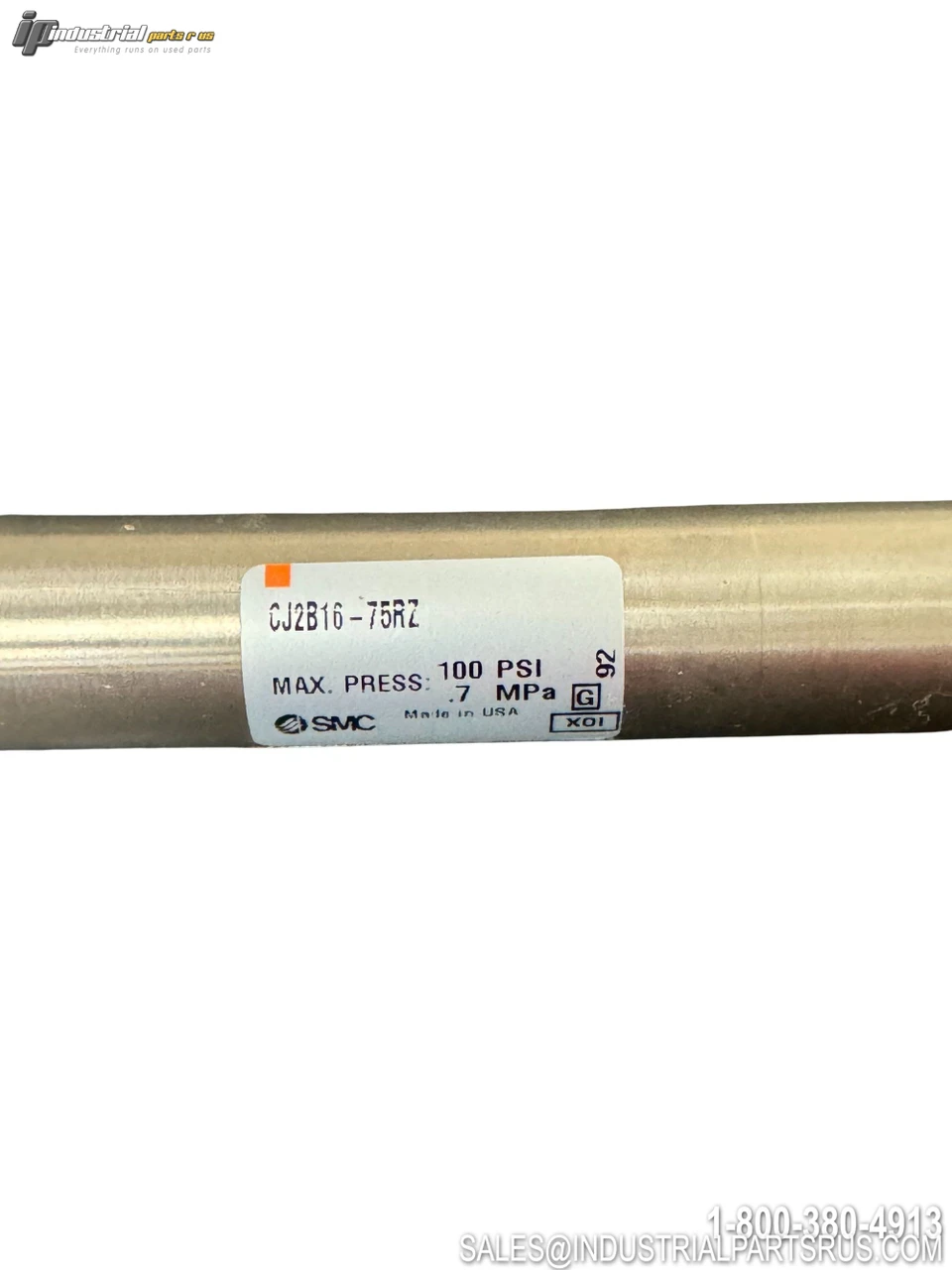

The SMC CJ2B16-75RZ is a miniature round-body air cylinder from the CJ2-Z series, featuring a stainless steel cylinder tube and stainless steel piston rod for enhanced corrosion resistance and durability. It is configured with a 16mm bore, 75mm stroke, basic (B) mounting style, and an axial (R) head cover port location, making it well-suited for compact automation applications where space and corrosion resistance are critical. The cylinder is double-acting with a single rod and requires no lubrication for reliable, maintenance-friendly operation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model / Part Number | CJ2B16-75RZ |
| Series | CJ2-Z |
| Product Type | Compact Air Cylinder |
| Action Type | Double Acting, Single Rod |
| Bore Diameter | 16 mm |
| Stroke Length | 75 mm |
| Mounting Style | Basic (B) |
| Head Cover Port Location | Axial / In-Line (R) |
| Port Size | M5 x 0.8 |
| Fluid | Air |
| Maximum Operating Pressure | 0.7 MPa (101.5 PSI) |
| Minimum Operating Pressure | 0.08 MPa |
| Proof Pressure | 1.05 MPa |
| Cushion Type | Rubber Bumper |
| Piston Speed | 50 to 750 mm/s |
| Lubrication | Not Required (Non-lube) |
| Cylinder Tube Material | Stainless Steel |
| Piston Rod Material | Stainless Steel |
| Rod Cover / Head Cover Material | Aluminum Alloy (Anodized) |
| Seal Material | NBR |
| Operating Temperature (Without Auto Switch) | -10°C to 70°C |
| Operating Temperature (With Auto Switch) | -10°C to 60°C |
| Auto Switch Capability | Mountable (Band Mounting) |
| Stroke Length Tolerance | +1.0 / 0 mm |
| Approximate Weight (75mm stroke) | ~55 g |
| Overall Length (approx.) | ~150 mm |
| Height / Width (approx.) | ~18.3 mm x 18.3 mm |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture United States
Manufacturer SMC
Part Number CJ2B16-75RZ
Shelf B-6
Bore Diameter 16 mm
Model CJ2B16-75RZ
MPN CJ2B16-75RZ
Type Compact Cylinder
