Product Description

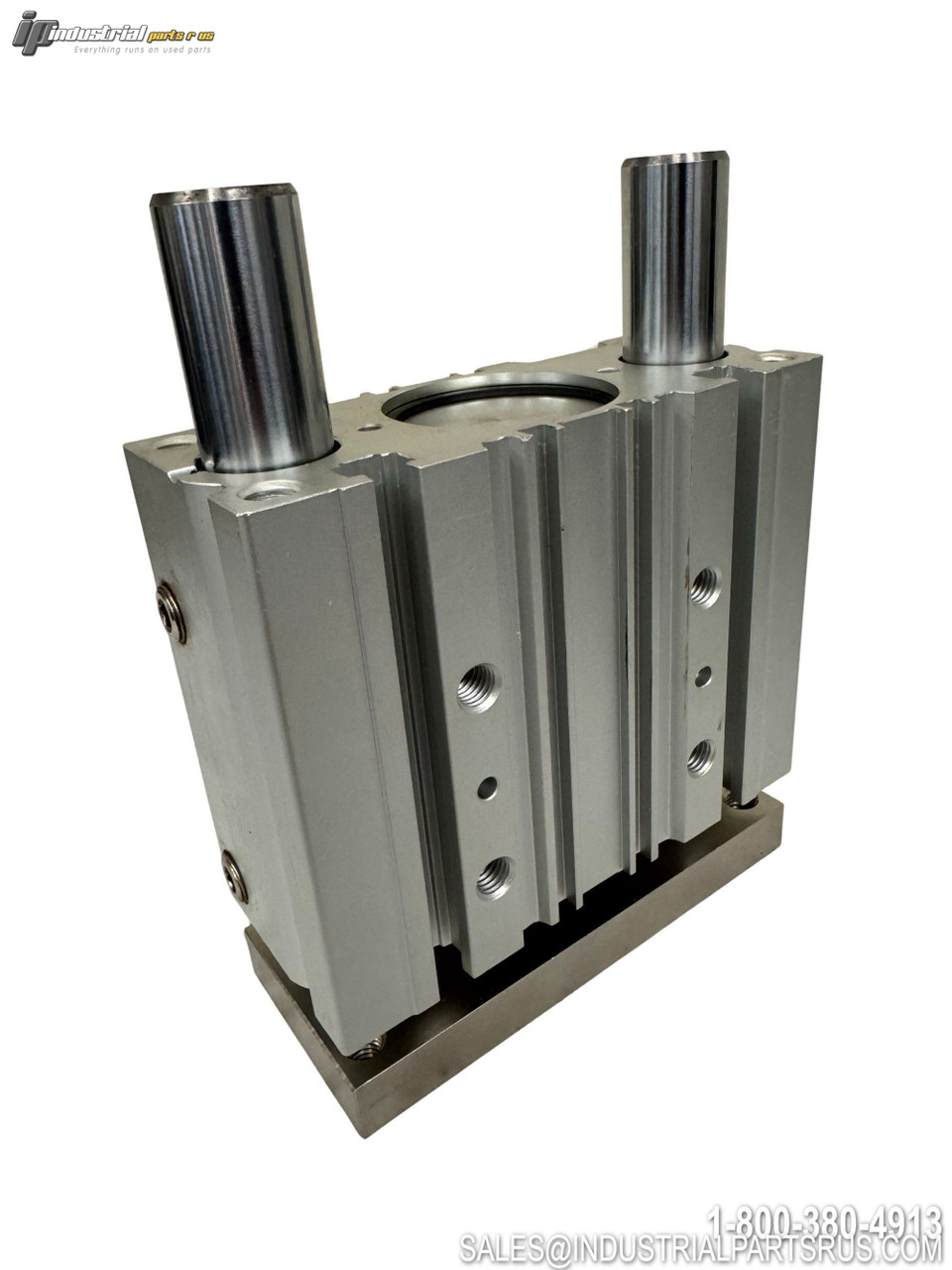

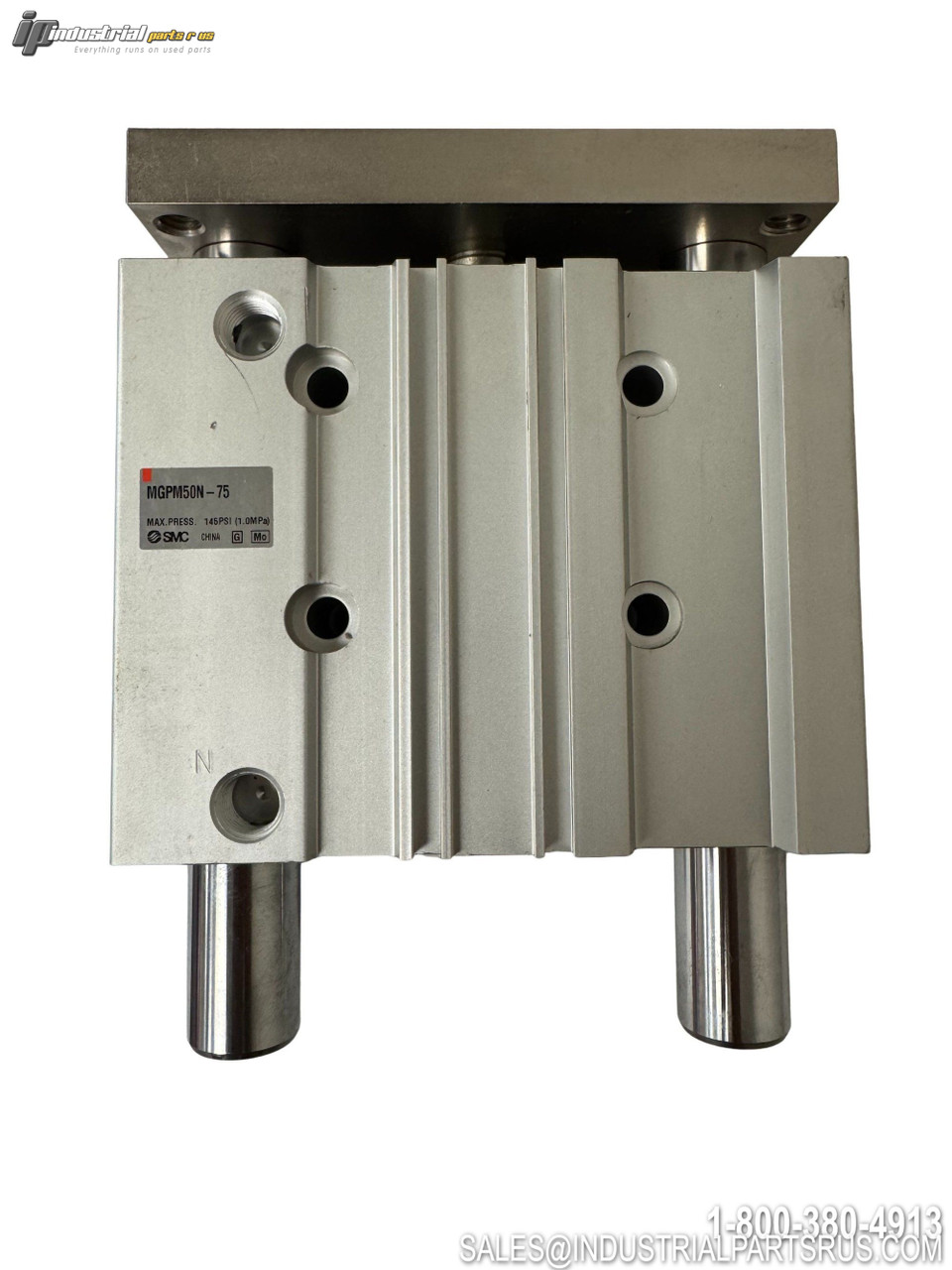

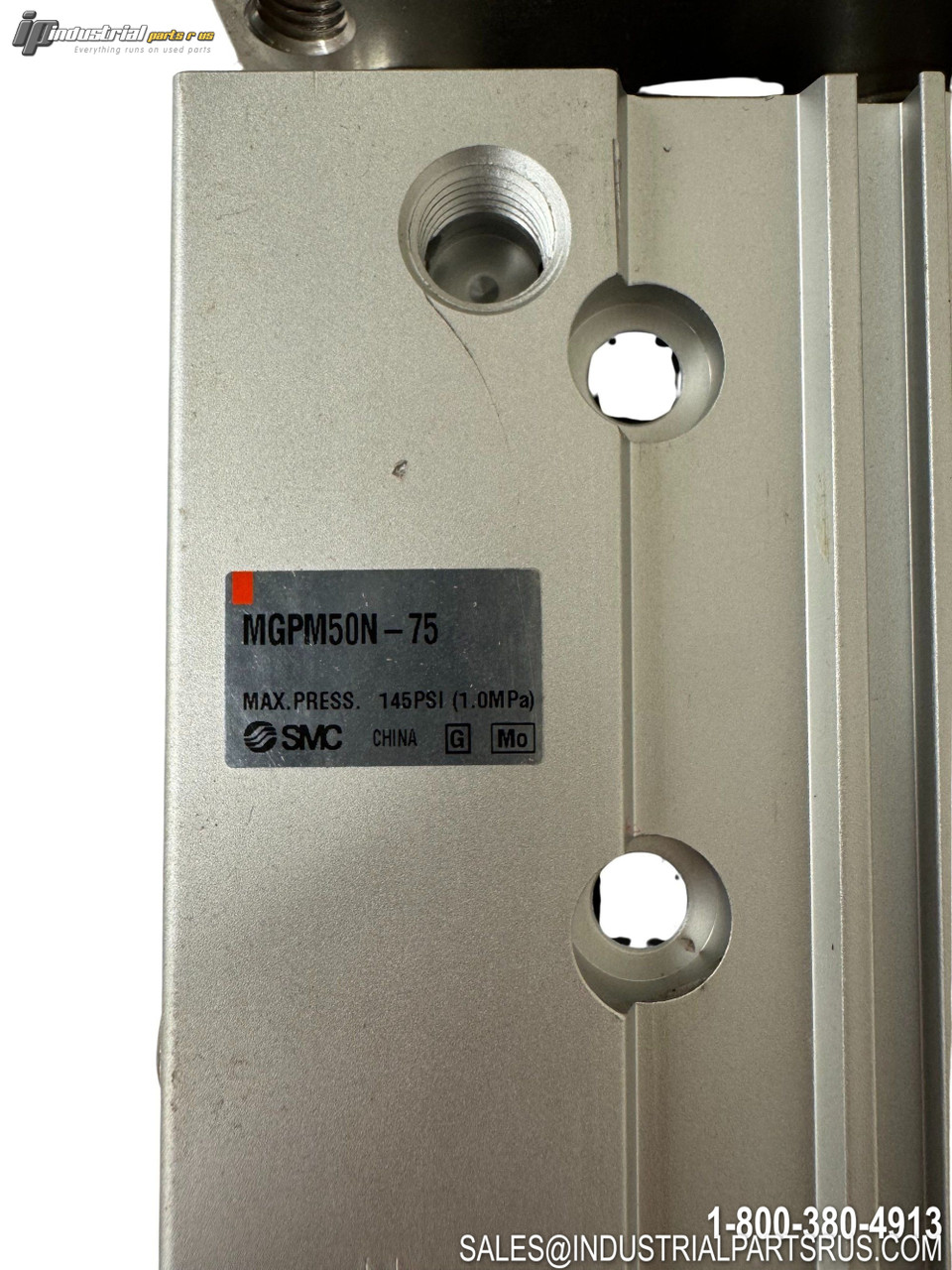

The SMC MGPM50N-75 is a compact guide cylinder from SMC's MGP Series, featuring a 50mm bore and 75mm stroke with a carbon steel alloy slide bearing. It integrates internal guide shafts to isolate load bearing from the movement of the actuator's rod and seals, providing excellent lateral stability and resistance to side load impacts. This double-acting cylinder is designed for high side load applications in material handling, lifting, stopping, and automation environments.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model / Part Number | MGPM50N-75 |
| Series | MGP |
| Cylinder Type | Compact Guide Cylinder – Slide Bearing (MGPM) |
| Bore Diameter | 50 mm |
| Stroke Length | 75 mm |
| Action | Double Acting |
| Fluid | Air |
| Maximum Operating Pressure | 1.0 MPa (145 psi) |
| Minimum Operating Pressure | 0.1 MPa (14.5 psi) |
| Proof Pressure | 1.5 MPa (218 psi) |
| Piston Speed | 50 – 500 mm/s |
| Port Size | Rc 1/4" |
| Number of Ports | 2 |
| Bearing Type | Carbon Steel Alloy Slide Bearing |
| Guide Rod Diameter | 25 mm / 30 mm (dual guide rods) |
| Piston Rod Size | 18 mm / 25 mm |
| Seal Material | NBR (Nitrile Rubber) |
| Cushion | Rubber Bumper (both ends) |
| Lubrication | Not Required (non-lube) |
| Non-Rotating Accuracy | ±0.05° (50mm bore) |
| Ambient / Fluid Temperature | -10°C to +60°C |
| Mounting Style | Basic (top / T-slot side mounting) |
| Auto Switch | None (N suffix – no switch) |
| Built-in Magnet | Yes (auto switch mountable) |
| Plate Material | Carbon Steel |
| Application | Material handling, lifting, stopping, automation |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture China
Manufacturer SMC
Part Number MGPM50N-75
Shelf B-11
Bore Diameter 50 mm
Model MGPM50N-75
MPN MGPM50N-75
Type Guided Cylinder
