Product Description

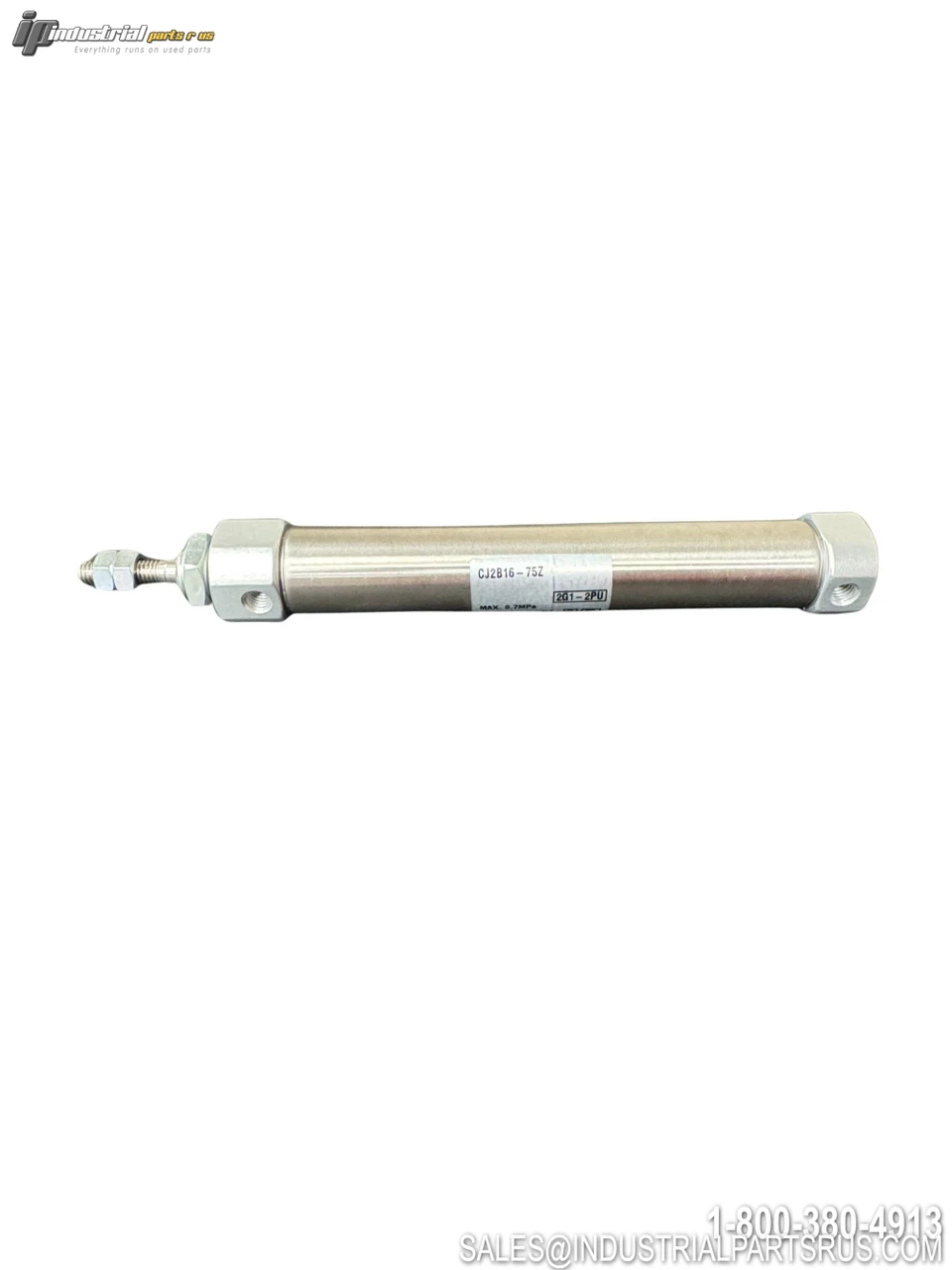

The SMC CJ2B16-75Z is a compact, round-body pneumatic cylinder from SMC's CJ2 Series, featuring a 16mm bore diameter and 75mm stroke length. It operates as a double-acting, single-rod cylinder using air as its fluid medium, making it well suited for precise motion control in automation, assembly, and material handling applications. The cylinder features a stainless steel tube and stainless steel rod for enhanced corrosion resistance and durability in a lightweight, space-saving package. Designed for long service life with no lubrication required.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model / Part Number | CJ2B16-75Z |
| Series | CJ2 |
| Product Type | Compact Cylinder (Round Body) |
| Action | Double Acting, Single Rod |
| Bore Diameter | 16 mm |
| Stroke Length | 75 mm |
| Port Connection | M5 x 0.8 |
| Pneumatic Connection | M5 |
| Fluid | Air |
| Maximum Operating Pressure | 0.7 MPa (101.5 PSI) |
| Proof Pressure | 1.0 MPa |
| Minimum Operating Pressure | 0.06 MPa |
| Cushion Type | Rubber Bumper |
| Piston Speed | 50 to 750 mm/s |
| Operating Temperature (without auto switch) | -10°C to 70°C (No freezing) |
| Operating Temperature (with auto switch) | -10°C to 60°C |
| Lubrication | Not Required (Non-Lube) |
| Tube / Rod Material | Stainless Steel |
| Auto Switch Mounting | Band Mounting (Mountable) |
| Mounting Style | Basic (B) |
| Overall Dimensions (L x W x H) | 150 x 18 x 18 mm |
| Weight | 55 g |
| Head Cover Port Location | Z (Perpendicular/Axial Position) |
| Stroke Length Tolerance | +1.0 / 0 mm |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Country/Region of Manufacture China
Manufacturer SMC
Part Number CJ2B16-75Z
Shelf B-6
Bore Diameter 16 mm
Model CJ2B16-75Z
MPN CJ2B16-75Z
Type Compact Cylinder
