Product Description

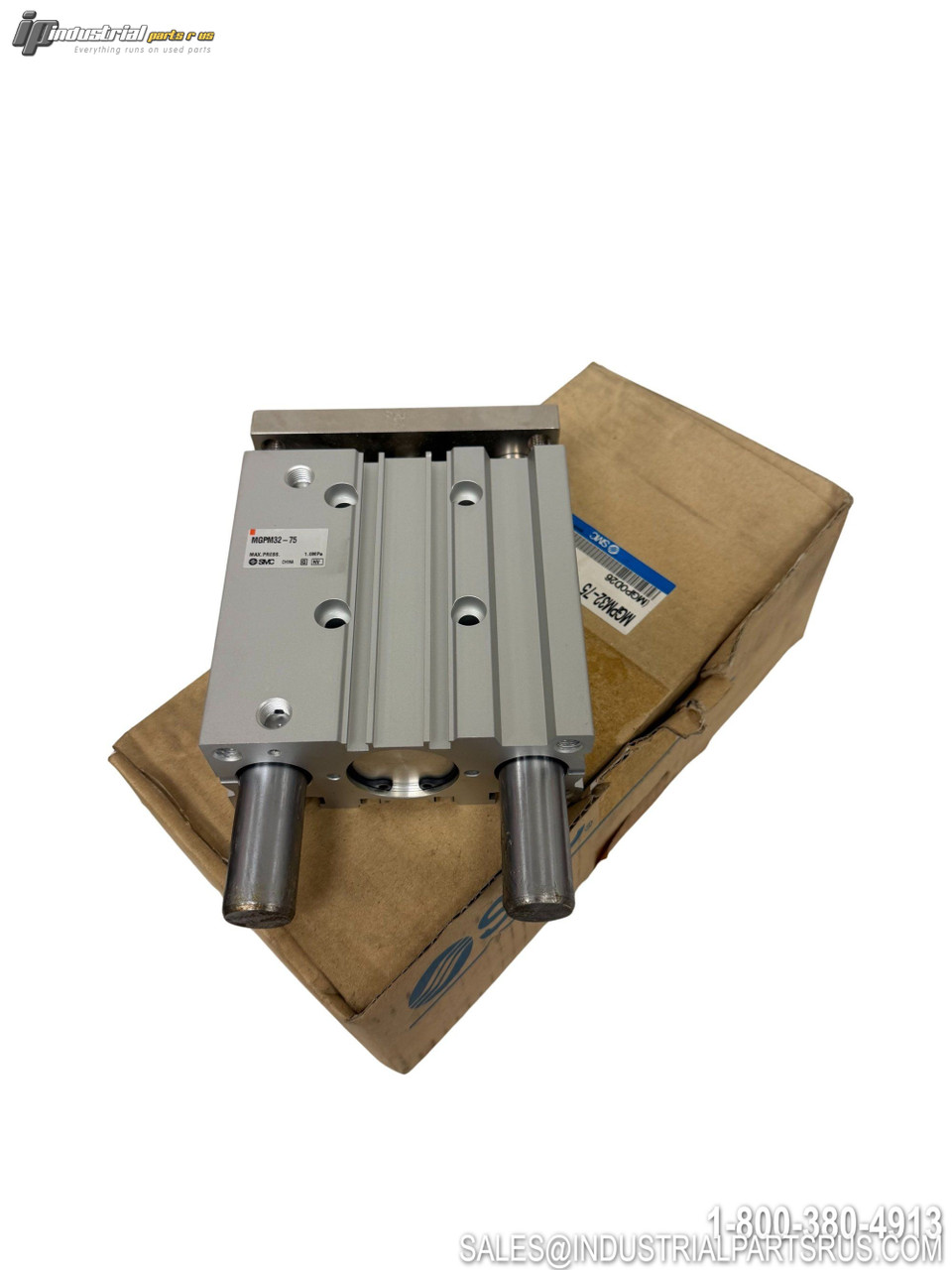

The SMC MGPM32-75 is a compact guided pneumatic cylinder from the MGP series, designed for high side load applications in material handling, lifting and stopping operations. This cylinder utilizes an ultra-compact design by incorporating the cylinder body as part of the guide body, enhancing load bearing capacity as stroke length increases.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | MGPM32-75 |
| Series | MGP |
| Cylinder Type | Compact Guide Cylinder |
| Bore Diameter | 32 mm |
| Stroke Length | 75 mm |
| Bearing Type | Slide Bearing |
| Action | Double-acting |
| Port Thread Type | Rc1/8" |
| Maximum Operating Pressure | 145 psi (1.0 MPa) |
| Minimum Operating Pressure | 17 psi (0.12 MPa) |
| Proof Pressure | 218 psi (1.5 MPa) |
| Piston Speed | 50-500 mm/s |
| Seal Material | NBR |
| Cushion Type | Rubber Bumper |
| Built-in Magnet | Yes |
| Switch Mounting | Magnetic field resistant auto switches compatible |
| Weight (approximate) | 2.47 kg |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer SMC
Part Number MGPM32-75
Shelf B-15
Bore Diameter 32 mm
Model MGPM32-75
MPN MGPM32-75
Type Compact Cylinder
