Product Description

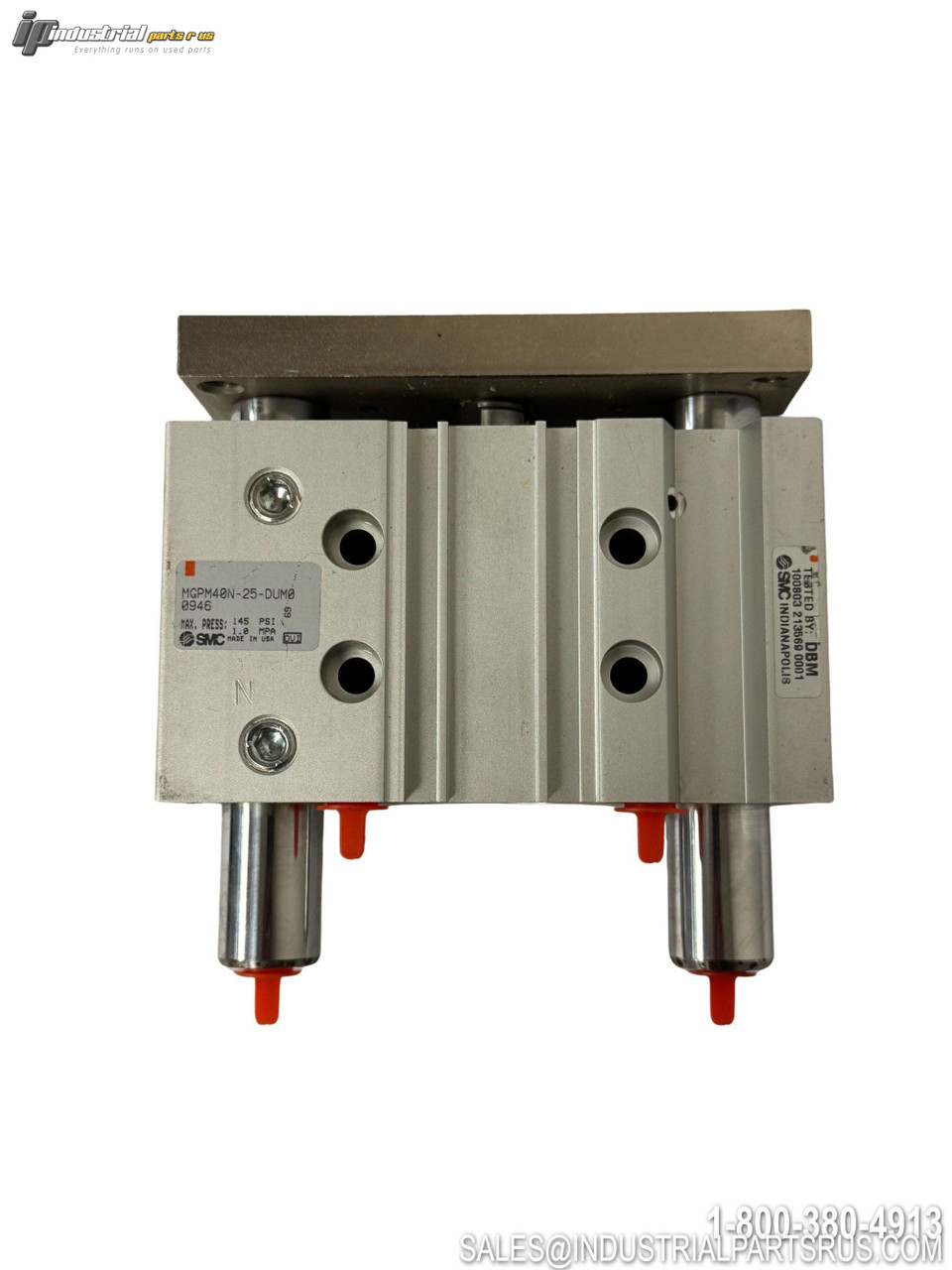

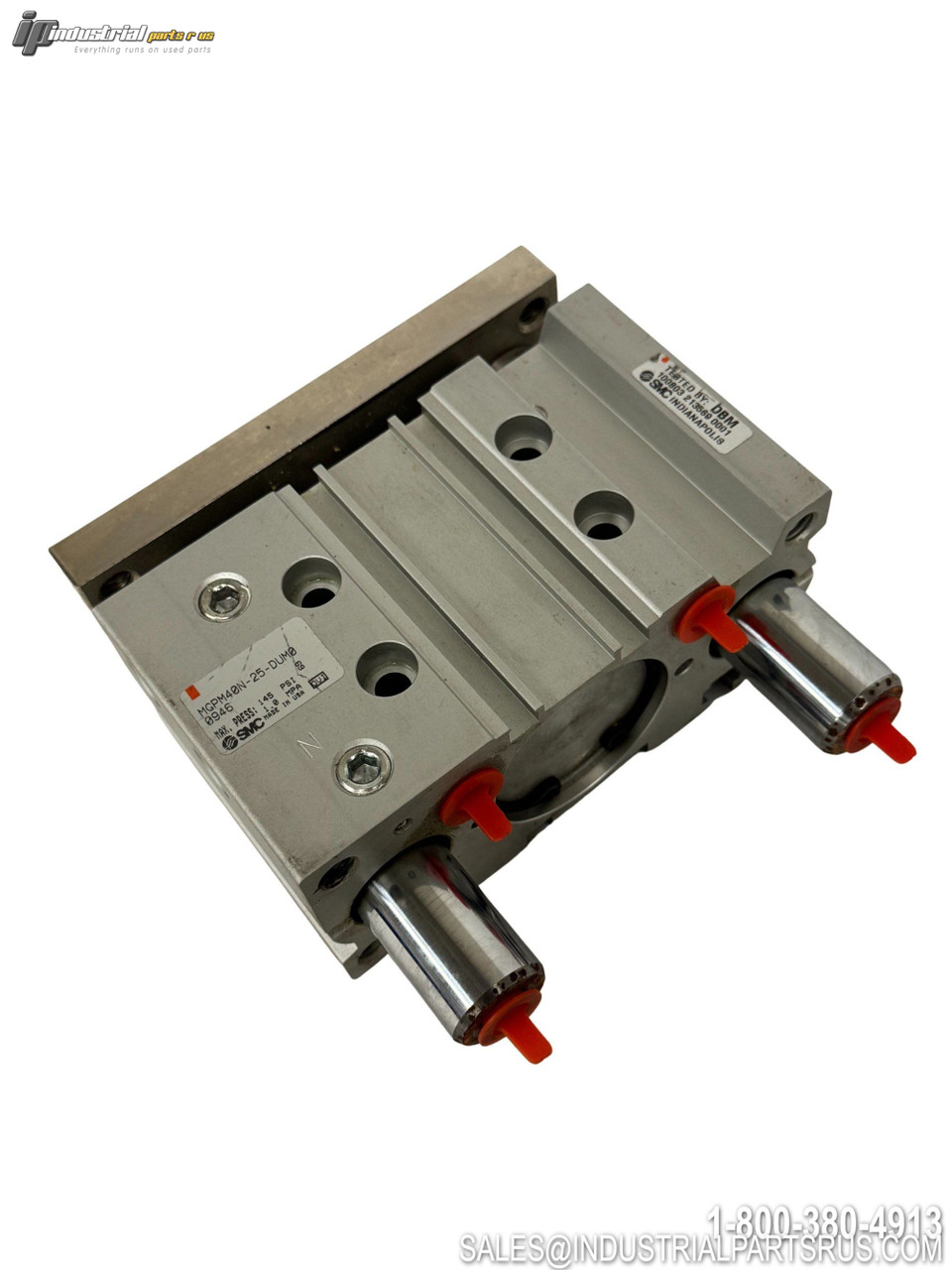

The SMC MGPM40N-25-DUM00946 is a compact guide cylinder from SMC's MGP series, featuring a 40mm bore diameter and 25mm stroke length. This pneumatic actuator integrates internal guide shafts to isolate load bearing from the movement of the actuator's rod and seals, making it suitable for high side load applications in material handling, lifting, and stopping operations.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | MGPM40N-25-DUM00946 |
| Product Type | Compact Guide Cylinder |
| Series | MGPM (MGP Compact Guide) |
| Bore Diameter | 40mm |
| Stroke Length | 25mm |
| Bearing Type | Slide Bearing (Carbon Steel Alloy) |
| Cylinder Type | Double Acting |
| Non-Rotating Accuracy | ±0.06° (32 & 40mm bore) |
| Application | Material Handling, Lifting, Stopping |
| Guide Shaft Type | Internal Guide Shafts |
| Switch Mounting | Auto Switch Capable |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture Japan
Manufacturer SMC
Part Number MGPM40N-25-DUM00946
Shelf B-10
Bore Diameter 40 mm
Model MGPM40N-25-DUM00946
MPN MGPM40N-25-DUM00946
Type Pneumatic Cylinder
