Product Description

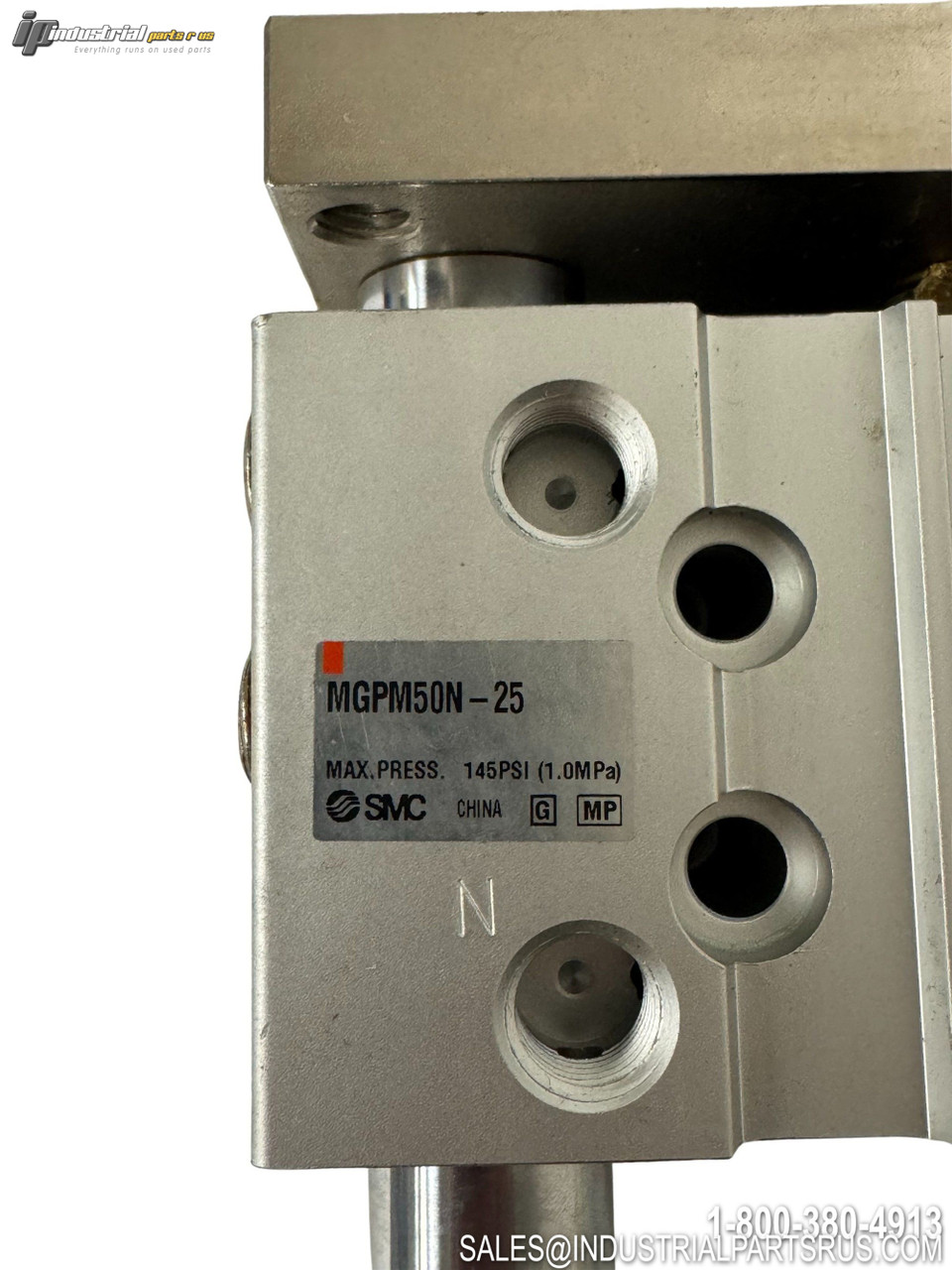

The SMC MGPM50N-25 is a compact guided pneumatic cylinder from the MGP series, designed for high side load applications including material handling, lifting, and stopping operations. This double-acting cylinder features an ultra-compact design by incorporating the cylinder body as part of the guide body, providing enhanced load bearing capacity and lateral stability through its slide bearing design.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | MGPM50N-25 |
| Series | MGP Series |
| Cylinder Type | Compact Guide Cylinder |
| Action | Double Acting |
| Bore Diameter | 50mm |
| Stroke Length | 25mm |
| Bearing Type | Slide Bearing |
| Port Thread Type | NPT |
| Port Size | 1/4" NPT |
| Maximum Operating Pressure | 1.0 MPa (145 psi) |
| Proof Pressure | 1.5 MPa (218 psi) |
| Minimum Operating Pressure | 0.15 MPa (22 psi) |
| Operating Temperature | -10°C to +60°C (14°F to 140°F) |
| Piston Speed | 50-500 mm/s |
| Fluid | Compressed Air |
| Seals Material | NBR (Nitrile Rubber) |
| Cushion | Rubber Bumpers (Both Ends) |
| Lubrication | Non-lube (Factory Lubricated) |
| Application | Material Handling, Lifting, Stopping |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer SMC
Part Number MGPM50N-25
Shelf B-11
Bore Diameter 50 mm
Model MGPM50N-25
MPN MGPM50N-25
Type Pneumatic Cylinder
