Product Description

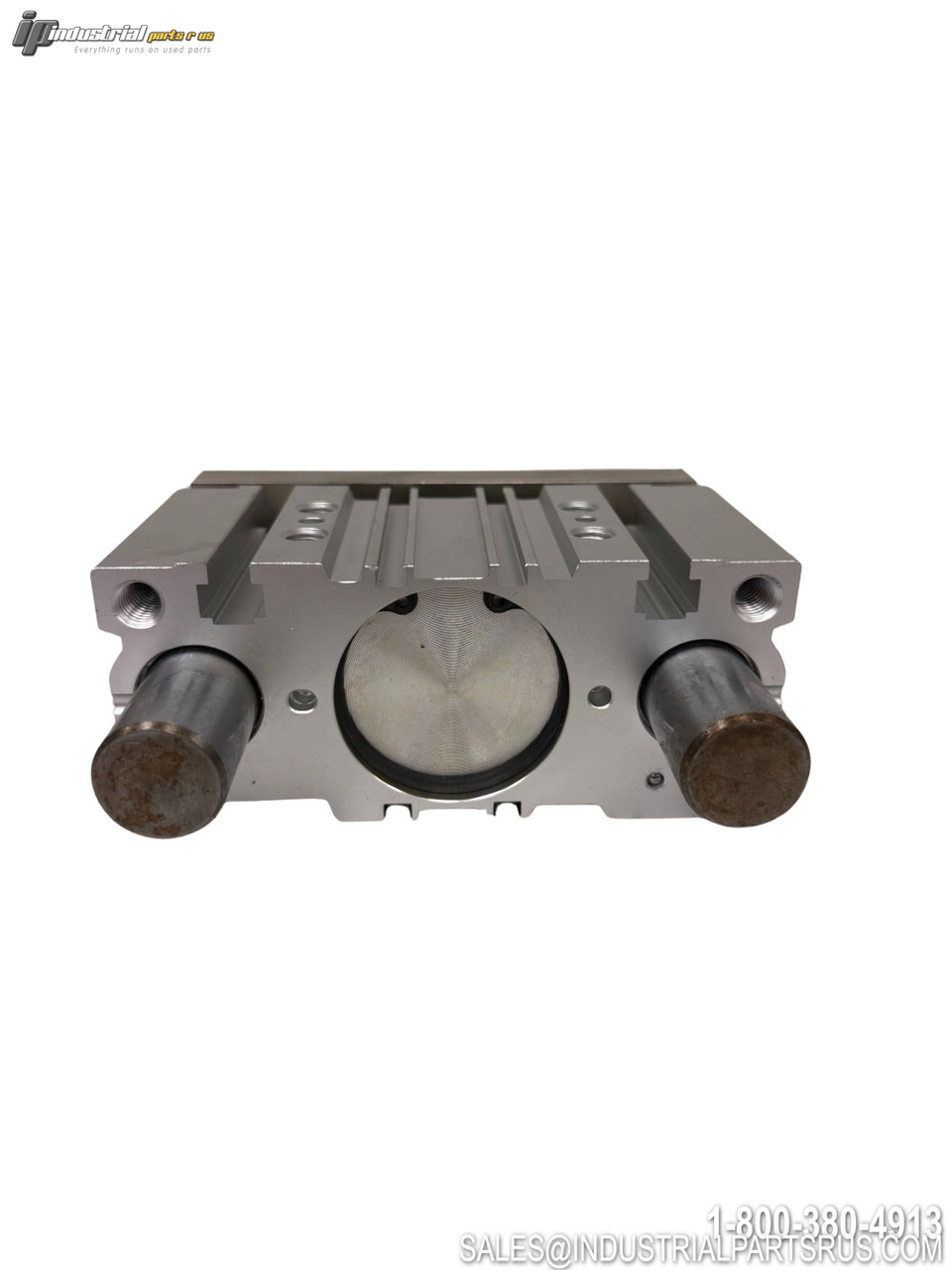

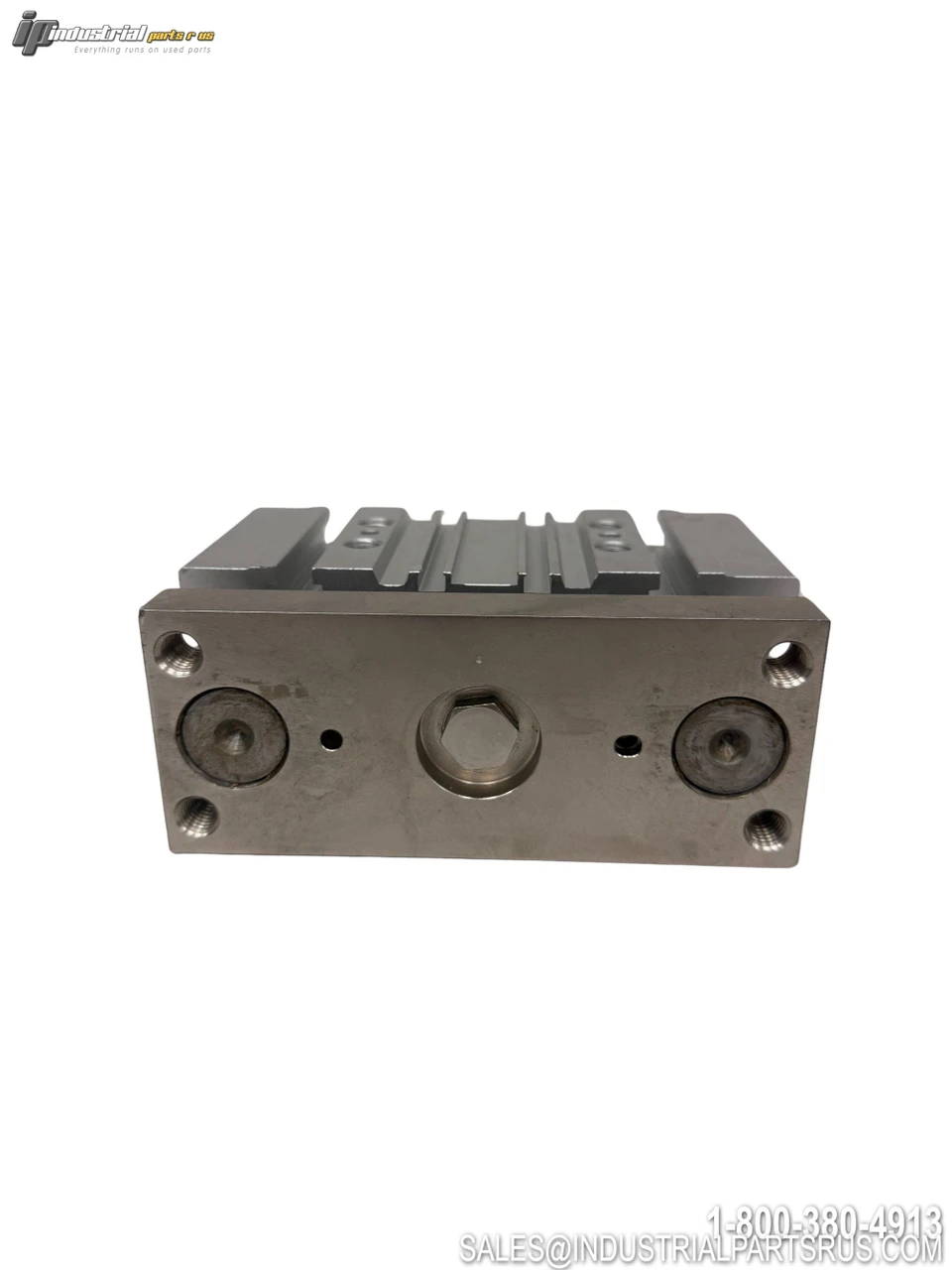

The SMC MGPM50N-25 is a compact guide cylinder from SMC's MGP series, featuring a 50mm bore and 25mm stroke with a carbon steel alloy slide bearing and an integrated rod-end lock mechanism. It is designed for high side load applications in material handling, lifting, and stopping, with an ultra-compact body that incorporates the cylinder body as part of the guide body. The MGPM50N variant includes a built-in magnet, rod-end lock, manual lock release, and rubber bumpers on both ends for reliable stroke-end cushioning. Compatible with SMC auto switches and suitable for use with compressed air as the operating fluid.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model / Part Number | MGPM50N-25 |
| Series | MGP |
| Cylinder Type | Compact Guide Cylinder with End Lock |
| Bore Diameter | 50 mm |
| Stroke Length | 25 mm |
| Cylinder Action | Double Acting |
| Bearing Type | Slide Bearing (Carbon Steel Alloy) |
| Maximum Operating Pressure | 145 PSI / 1.0 MPa |
| Minimum Operating Pressure | 22 PSI / 0.15 MPa |
| Proof Pressure | 218 PSI / 1.5 MPa |
| Port Size | 1/4" (Rc / NPT) |
| Number of Ports | 2 |
| Piston Speed | 50–500 mm/s |
| Seal Material | NBR (Nitrile Rubber) |
| Cushion Type | Rubber Bumper (Both Ends) |
| Body / Plate Material | Aluminum Alloy, Hard Anodized |
| End Lock Type | Rod-End Lock with Manual Release |
| Built-in Magnet | Yes (for auto switch compatibility) |
| Non-Rotating Accuracy | ±0.05° (50 mm bore) |
| Fluid | Compressed Air |
| Ambient Operating Temperature | -10°C to +60°C (14°F to 140°F) |
| Mounting Style | T-Slot (Top and Side) |
| Switch Mounting Grooves | Yes – Two Sides |
| Stroke Availability (ø40–100mm) | 5 mm increments |
| Manufacturer | SMC Corporation |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686208
Manufacturer SMC
Part Number MGPM50N-25
Shelf B-16
Bore Diameter 50 mm
Model MGPM50N-25
MPN MGPM50N-25
Type Guided Cylinder
