Product Description

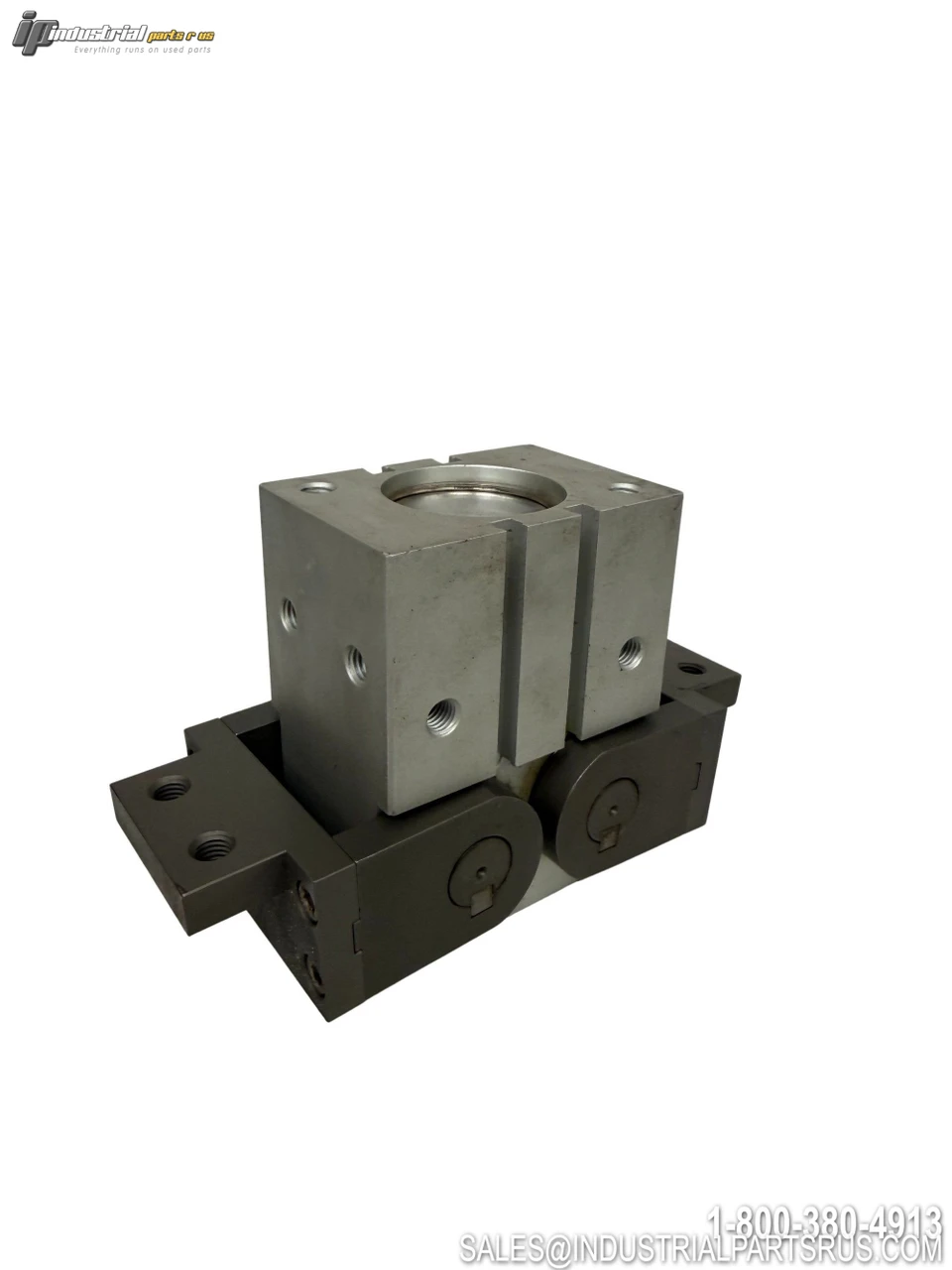

The SMC MHW2-40D1 is a 180° Angular Style Air Gripper using a rack and pinion mechanism, featuring a 40 mm bore and double-acting operation with external grip. Its unique seal construction provides a shortened overall body length and constant grip strength throughout the open/close cycle, while a dustproof structure and standard-equipped bearings make it well-suited for machine tool workpiece removal, loading, and holding applications. The two synchronized fingers rotate back perpendicular to the gripper body for space-saving, low-clearance X-Y plane transfer moves.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model / Part Number | MHW2-40D1 |
| Series | MHW2 |
| Product Type | 180° Angular Air Gripper, Rack & Pinion Style |
| Bore Size | 40 mm |
| Action Type | Double Acting — External Grip |
| Number of Fingers | 2 |
| Finger Option | Right Angle Type Fingers, Tapped Mounting (D1) |
| Opening Angle (Both Sides) | 180° |
| Effective Gripping Force | 3.70 N·m |
| Operating Pressure | 0.15 to 0.7 MPa (21.8 to 101.5 psi) |
| Fluid | Air |
| Ambient / Fluid Temperature | –10 to 60°C (14 to 140°F) |
| Repeatability | ±0.2 mm |
| Max. Operating Frequency | 30 c.p.m. |
| Lubrication | Not Required |
| Port Thread Type | Rc (PT) 1/4 — Finger Opening & Closing Ports |
| Mounting Thread | M10 × 1.5 |
| Weight (Open) | 2140 g |
| Weight (Closed) | 2270 g |
| Auto Switch Mounting Positions | 4 locations available (optional) |
| Auto Switch (as configured) | Without Auto Switch |
| Compatible Auto Switch Type | Solid State (3-wire, 2-wire) |
| Dustproof Structure | Yes |
| Bearings | Standard Equipped |
| Grease Pack Replacement Part | MH-G04 (30 g) |
| Manufacturer | SMC Corporation |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer SMC
Part Number MHW2-40D1
Shelf B-16
Bore Diameter 40 mm
Model MHW2-40D1
MPN MHW2-40D1
Type Pneumatic Gripper
